Liebert HIROSS HISP SE + SC SERIES Kundendienstanleitung Seite 66

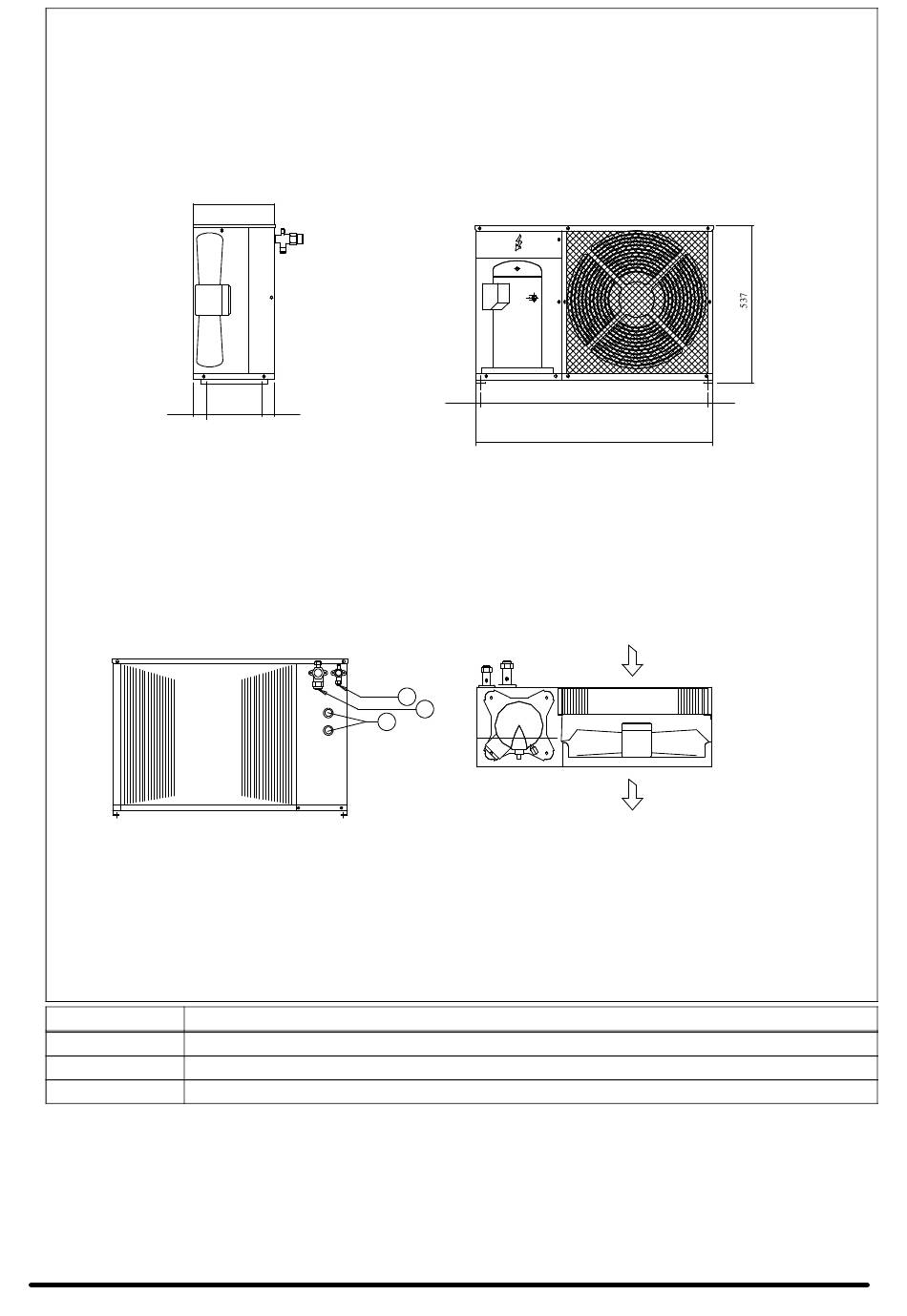

Fig. 1c --- Condensing unit --- Unità condensante SC 05 ---06
SIDE VIEW --- VISTA LATERALE
285
42 190
N. 2+2 SQUARE CAGED NUTS M6
REAR VIEW --- VISTA POSTERIORE
POS.
E Electrical connections --- Collegamenti elettrici
U Refrigerant outlet --- Uscita refrigerante
I Refrigerant inlet --- Ingresso refrigerante
15
40
U
I
E
Description --- Descrizioni
3
FRONT VIEW --- VISTA FRONTALE
770
N. 2+2 SQUARE CAGED NUTS M6
800
TOP VIEW --- VISTA DALL'ALTO
AIR FLOW
FLUSSO ARIA
AIR FLOW
FLUSSO ARIA
15
