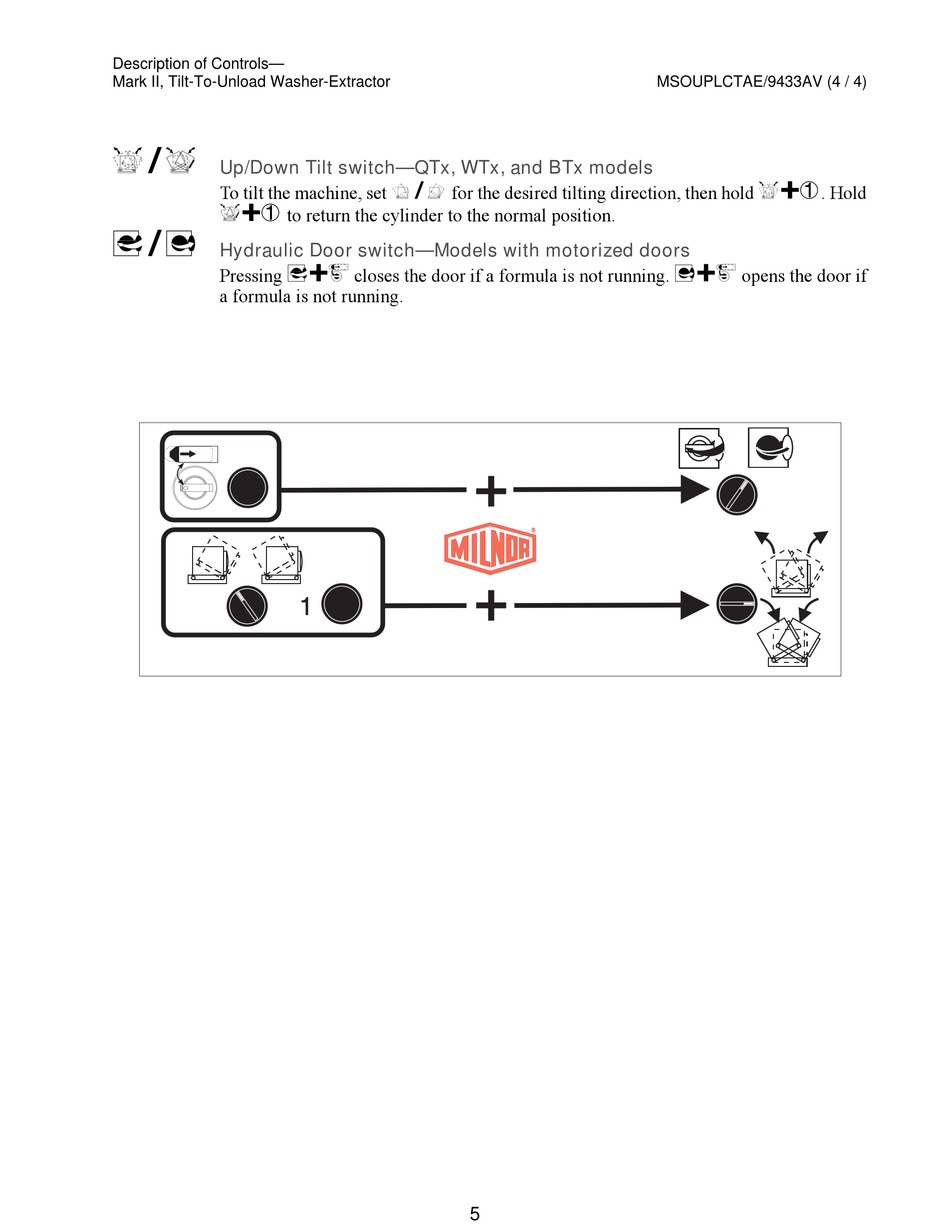

Description of Controls—
Mark II, Tilt-To-Unload Washer-Extractor
T/r
Up/Down Tilt switch—QTx, WTx, and BTx models
To tilt the machine, set U/u for the desired tilting direction, then hold T+1. Hold
r+1 to return the cylinder to the normal position.
D/d
Hydraulic Door switch—Models with motorized doors
Pressing D+l closes the door if a formula is not running. d+l opens the door if
a formula is not running.
5
MSOUPLCTAE/9433AV (4 / 4)
