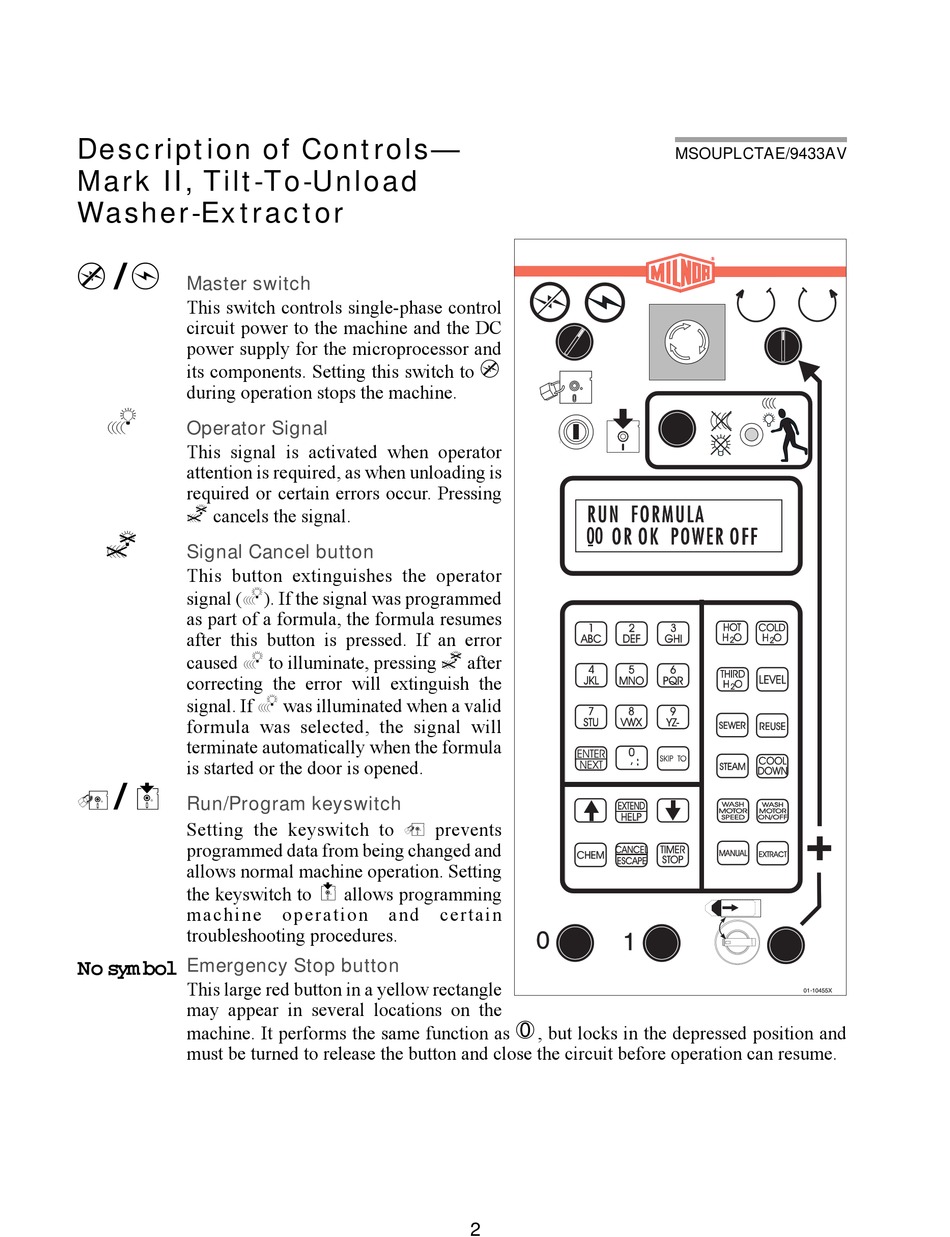

Description of Controls—
Mark II, Tilt-To-Unload
Washer-Extractor
m/M
Master switch
This switch controls single-phase control
circuit power to the machine and the DC
power supply for the microprocessor and
its components. Setting this switch to m
during operation stops the machine.
a
Operator Signal
This signal is activated when operator
attention is required, as when unloading is
required or certain errors occur. Pressing
A cancels the signal.
A
Signal Cancel button
This button extinguishes the operator
signal (a). If the signal was programmed
as part of a formula, the formula resumes
after this button is pressed. If an error
caused a to illuminate, pressing A after
correcting the error will extinguish the
signal. If a was illuminated when a valid
formula was selected, the signal will
terminate automatically when the formula
is started or the door is opened.
R/P
Run/Program keyswitch
Setting the keyswitch to R prevents
programmed data from being changed and
allows normal machine operation. Setting
the keyswitch to P allows programming
machine
troubleshooting procedures.
Emergency Stop button
No sym bol
This large red button in a yellow rectangle
may appear in several locations on the
machine. It performs the same function as 0, but locks in the depressed position and
must be turned to release the button and close the circuit before operation can resume.
operation and certain
2
