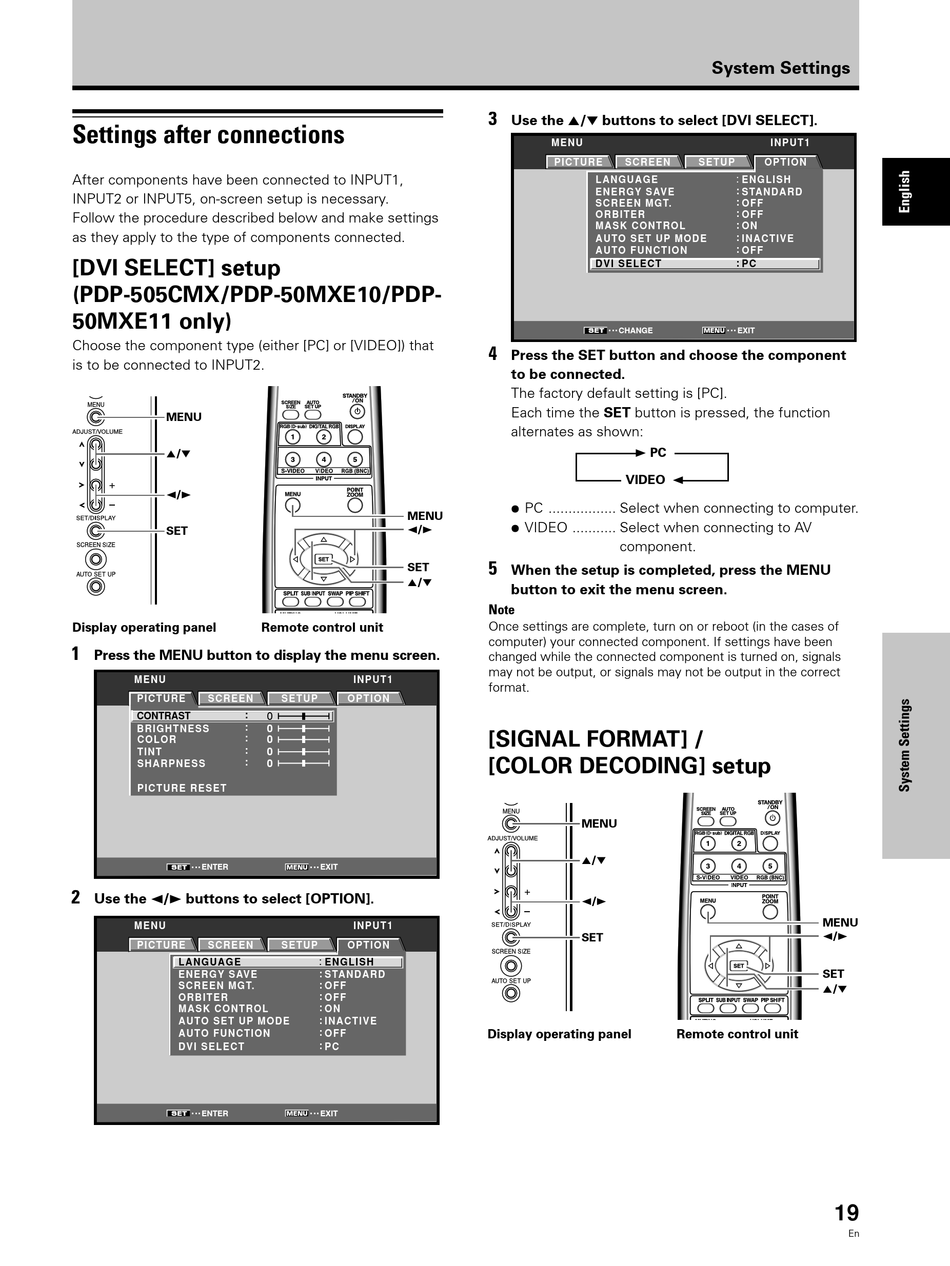

Settings after connections

After components have been connected to INPUT1,
INPUT2 or INPUT5, on-screen setup is necessary.
Follow the procedure described below and make settings
as they apply to the type of components connected.
[DVI SELECT] setup
(PDP-505CMX/PDP-50MXE10/PDP-
50MXE11 only)
Choose the component type (either [PC] or [VIDEO]) that
is to be connected to INPUT2.
MENU
5/∞
2/3
SET
Display operating panel
1
Press the MENU button to display the menu screen.
MENU
PICTURE SCREEN
CONTRAST :
:
BRIGHTNESS
:
COLOR
:
TINT
:
SHARPNESS
PICTURE RESET
ENTER
SET
2 Use the 2/3 buttons to select [OPTION].
MENU
PICTURE SCREEN
LANGUAGE
ENERGY SAVE
SCREEN MGT.
ORBITER
MASK CONTROL
AUTO SET UP MODE
AUTO FUNCTION
DVI SELECT
SET ENTER
MENU
2/3
SET
5/∞
Remote control unit
INPUT1
SETUP OPTION
0
0
0
0
0
EXIT
MENU
INPUT1
SETUP OPTION
:
ENGLISH
: STANDARD
:
OFF
:
OFF
:
ON
:
INACTIVE
:
OFF
: PC
MENU EXIT
3
Use the 5/∞ buttons to select [DVI SELECT].
MENU
PICTURE SCREEN
LANGUAGE
ENERGY SAVE
SCREEN MGT.
ORBITER
MASK CONTROL
AUTO SET UP MODE
AUTO FUNCTION
DVI SELECT
SET CHANGE
4
Press the SET button and choose the component
to be connected.
The factory default setting is [PC].
Each time the SET button is pressed, the function
alternates as shown:
3 PC
VIDEO 2
÷ PC ................. Select when connecting to computer.
÷ VIDEO ........... Select when connecting to AV
component.
5
When the setup is completed, press the MENU
button to exit the menu screen.
Note
Once settings are complete, turn on or reboot (in the cases of
computer) your connected component. If settings have been
changed while the connected component is turned on, signals
may not be output, or signals may not be output in the correct
format.
[SIGNAL FORMAT] /
[COLOR DECODING] setup
MENU
5/∞
2/3
SET
Display operating panel
System Settings
INPUT1
SETUP OPTION
:
ENGLISH
: STANDARD
:
OFF
:
OFF
: ON
:
INACTIVE
:
OFF
: PC
MENU EXIT
MENU
2/3
SET
5/∞
Remote control unit
19
En
