10-Channel Mode:
Channel Value
CH1 0-255
CH2 0-255
CH3 0-255
CH4 0-255
CH5 0-255
CH6 0-255
CH7 0-255
0-9
CH8
10-255
10-199
CH9
200-255
CH10 0-255

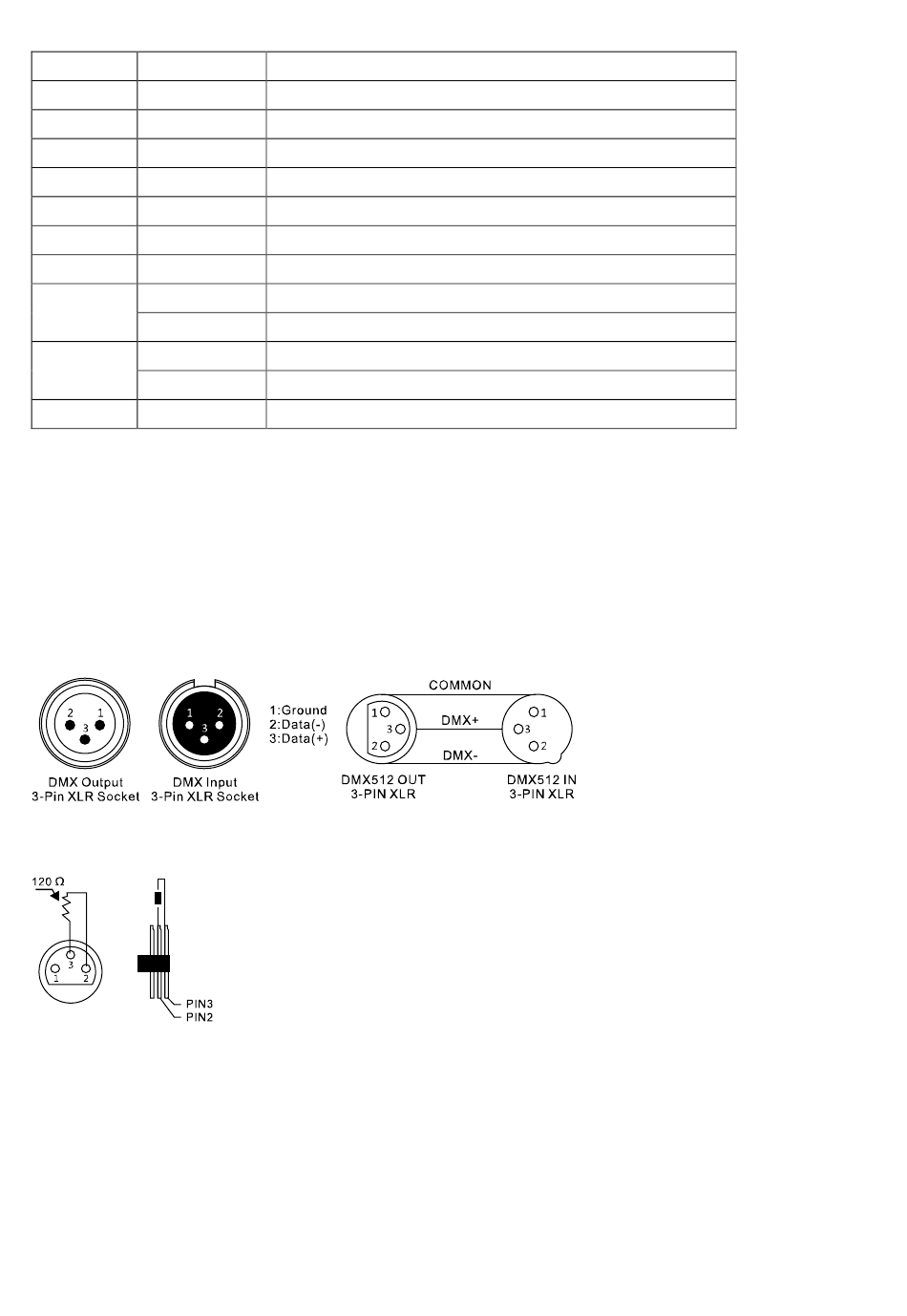

3.5 Connections in "DMX" mode:

DMX is the abbreviation for digital multiplex and allows the digital control of several DMX devices via a common
control cable.
Connect the DMX input of the unit to the DMX output of a DMX controller or other DMX device. Connect the output
of the first DMX device to the input of the second and so on to form a series circuit
DMX connectors:
A three-pin XLR socket serves as a DMX output, a three-pin XLR connector serves as a DMX input.
For installations with very long DMX cable paths or high electrical interference, such as in a discotheque, it is
recommended to use a DMX terminator. The DMX terminator is connected in an XLR connector as a 120 Ω
resistor between pins 2 and 3, which is plugged into the last output socket of the DMX line.

3.6 Connections in "Master / Slave" mode:

When you configure a group of devices in the "Master / Slave" mode, the first device controls the others and
allows an automatic or music-controlled and synchronized show. This feature is especially useful for starting a
show without great programming. Connect the DMX output of the master device to the DMX input of the first slave
device. Then, connect the DMX output of the first slave device to the DMX input of the second slave device, and
so on.
"Slave" mode: Can be set via IR remote control
Function
Red from 0 – 100%
Green from 0 – 100%
Blue from 0 – 100%
White from 0 – 100%
Amber from 0 – 100%
UV from 0 – 100%
Dimmer from 0 – 100%
No Function
Strobe (0-100%)
Automatic program
Sound program
Speed of the automatic program
