Tilting and Stacking the C com 16

Installing the Tilting Feet
You can install the tilting rubber feet included with
your C com 16 so that you can set the unit at a com-
fortable operating angle on a workstation or desktop.
Follow the simple instructions below to install the tilt-
ing feet.
• Remove the bottom screw from right front
bumper.
• Identify the right tilting foot by the locating "R"
marking on the inside top.

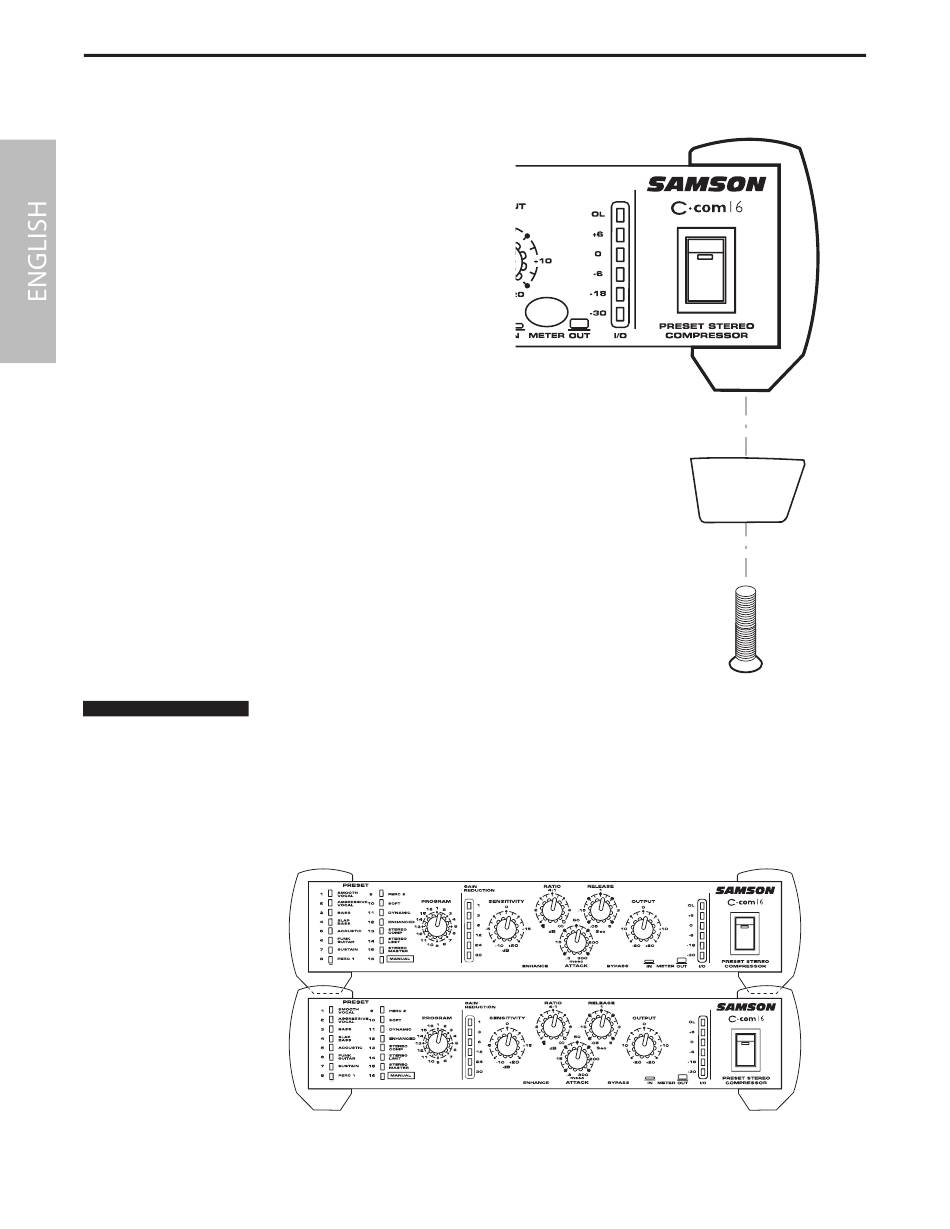

• Position the angled foot under the right bum-
per as shown in the drawing.
• Use the included 4 x 10mm screw to attach the
foot.
• Repeat the steps above for the front left bum-
per.
Stacking the C com 16
You can stack one C com 16, or any other Samson C Class units, on top of each other by simply lining up the
bumpers.
Important Note: When stacking the C COM 16, be sure that only the bottom unit has the tilting feet installed.
