Thermo Scientific Merlin M75 Bedienungsanleitung
Inhaltsverzeichnis
Quicklinks
Thermo Scientific

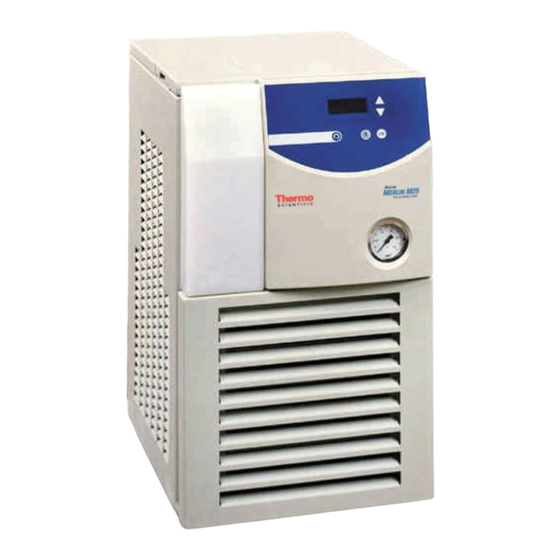

Merlin M75
Recirculating Chiller
Thermo Scientific Manual P/N U01116
Rev. 09/21/2017
Multilingual
Quick Starts
Multilingual
Essential Safety
Instructions
Installation
Operation
Maintenance
Troubleshooting
Visit our Web site at:
http://www.thermofischer.com/tc
Product Service Information, Applications
Notes, SDS Forms, e-mail.
Voice Info: (800) 258-0830
Inhaltsverzeichnis
Verwandte Anleitungen für Thermo Scientific Merlin M75
Inhaltszusammenfassung für Thermo Scientific Merlin M75
- Seite 1 Thermo Scientific Merlin M75 Recirculating Chiller Thermo Scientific Manual P/N U01116 Rev. 09/21/2017 Multilingual Quick Starts Multilingual Essential Safety Instructions Installation Operation Maintenance Troubleshooting Visit our Web site at: http://www.thermofischer.com/tc Product Service Information, Applications Notes, SDS Forms, e-mail. Voice Info: (800) 258-0830...
-
Seite 3: Quick Starts
Thermo Scientific Merlin M75 Recirculating Chiller Thermo Scientific Manual P/N U01116 Rev. 09/21/2017 Multilingual Quick Starts Multilingual Essential Safety Instructions Installation Operation Maintenance Troubleshooting Visit our Web site at: http://www.thermofischer.com/tc Product Service Information, Applications Notes, SDS Forms, e-mail. Voice Info: (800) 258-0830... - Seite 4 Thermo Fisher Scientific Sales, Service, and Customer Support 25 Nimble Hill Road 25 Nimble Hill Road Newington, NH 03801 Newington, NH 03801 Tel : (800) 258-0830 or Tel: (800) 258-0830 (603) 436-9444 Sales: 8:00 am to 5:00 pm Fax : (603) 436-8411 Service and Support: 8:00 am to 6:00 pm www.thermoscientific.com/tc Monday through Friday (Eastern Time)
-
Seite 5: Inhaltsverzeichnis
Error Codes ......................4-1 Displaying Software Version Number ............4-2 Controller PID Values..................4-3 Cleaning ......................4-3 Power Cable Mating Ends ................4-4 Leaks ........................4-4 PD Pressure Relief Valve .................4-4 Pump Strainer .....................4-5 Temperature Sensor Calibration ..............4-6 Decommissioning/Disposal ................4-8 Shipment/Storage ....................4-8 Merlin i Thermo Scientific... - Seite 6 Contents Chapter 5 Troubleshooting....................5-1 Checklist ......................5-1 Service Assistance .....................5-3 Appendix NC Serial Communications Protocol ............A-1 Declaration of Conformity WARRANTY Merlin Thermo Scientific...
-
Seite 7: Preface
Thermo Fisher Scientific has contracted with one or more recycling/ disposal companies in each EU Member State, dispose of or recycle this product through them. Further information on Thermo Fisher Scientific’s compliance with these Directives is available at: www.thermoscientific.com/WEEERoHS Merlin LR Series Thermo Scientific... -
Seite 8: After-Sale Support
If the chiller shows external or internal damage contact the transportation company and file a damage claim. Under ICC regulations, this is your responsibility. Thermo Scientific Merlin chillers have a warranty against defective parts Warranty and workmanship for 12 months from date of shipment. -
Seite 9: Safety Warnings
Never connect the process fluid inlet or outlet fittings to your building water supply or any water pressure source. Never use flammable or corrosive fluids with this chiller. Highly distilled and deionized water may be aggressive and cause material corrosion. Merlin Series v Thermo Scientific... - Seite 10 Always turn off the chiller and disconnect the power cord from the power source before performing any service or maintenance procedures, or before moving the chiller. Never operate equipment with damaged power cords. Refer service and repairs to a qualified technician. Merlin Series Thermo Scientific...
- Seite 59 Fluorinated The following information is included to comply with REGULATION (EU) No 517/2014 OF THE EUROPEAN PARLIAMENT AND OF Greenhouse THE COUNCIL of 16 April 2014 on fluorinated greenhouse gases: Gases This product contains fluorinated greenhouse gases in a hermetically sealed system.
- Seite 60 Gases de efecto in- La siguiente información se incluye de acuerdo con la REGULACIÓN (UE) Nº. 517/2014 DEL PARLAMENTO Y EL CONSEJO vernadero fluorados EUROPEO el 16 de abril de 2014 sobre gases de efecto invernadero fluorados: Este producto contiene gases de efecto invernadero en un sistema sellado herméticamente.
- Seite 61 Gazele fluorurate cu Următoarele informaţii sunt redactate în conformitate REGULAMENTUL (UE) NR. 517/2014 AL PARLAMENTULUI efect de ser EUROPEAN I AL CONSILIULUI din 16 aprilie 2014 privind gazele fluorurate cu efect de seră: Acest produs conţine gaze fluorurate cu efect de seră închise într-un sistem ermetic.
- Seite 62 Gassijiet Fluworu- L-informazzjoni li ġejja hi inluża biex tikkonforma mar-REGOLAMENT (UE) Nru 517/2014 TAL-PARLAMENT EWROPEW U TAL- rati b’Effett ta’ Serra KUNSILL tas-16 ta’ April 2014 dwar gassijiet fluworurati b’effett ta’ serra: Dan il-prodott fih gassijiet fluworurati b’effett ta’ serra f ’sistema ssiġillata ermetikament.
- Seite 63 Fluortartalmú A következő tájékoztatás az EURÓPAI PARLAMENT ÉS A TANÁCS (EU) 517/2014. SZÁMÚ, 2014. április 16-i, a fluortartalmú üvegházhatású üvegházhatású gázokkal kapcsolatos RENDELETÉBEN előírtak gázok teljesítése érdekében került a dokumentumba: A termék fluortartalmú üvegházhatású gázokat tartalmaz, hermetikusan zárt rendszerben. Ha a zárt rendszerben szivárgás jelentkezik, az üzemeltető köteles a lehető...
- Seite 64 μ π Οι ακόλουθες πληροφορίες περιλαμβάνονται για λόγους συμμόρφωσης με τον ΚΑΝΟΝΙΣΜΟ (ΕΕ) αριθ. 517/2014 ΤΟΥ ΕΥΡΩΠΑΪΚΟΥ ΚΟΙΝΟΒΟΥΛΙΟΥ ΚΑΙ ΤΟΥ ΣΥΜΒΟΥΛΙΟΥ της 16ης Απριλίου 2014 για τα φθοριούχα αέρα του θερμοκηπίου: Το παρόν προϊόν περιέχει φθοριούχα αέρια του θερμοκηπίου σε ερμητικά...
- Seite 65 F‐GAS D ECLARATIO ON OF CO NFORMITY Declara ation of co nformity w with Articl e 14 of Re egulation ( (EU) No 51 17/2014 of f the Europea an Parliam ment and o of the Coun ncil We, Therm mo Fisher Scie entific (Ashevil lle) LLC, F‐Gas s Portal Regist tration Numbe er 23643, dec clare under ou ur ...
- Seite 67 Reservoir Access Panel. Controller. Pressure Gauge. Circuit Protector. Optional Communications Connector. Reservoir. Condenser Access Panel. Optional Plumbing Return Connection. Remote Start/Stop Connector. External Temperature Sensor. Plumbing Supply Connection. PD Pump Pressure Relief Valve. Drain. Merlin Thermo Scientific...
-
Seite 68: Quick Reference Operating Procedures
. To turn the chiller off press again. LED indicates the status of the refrigeration system. It illuminates to indicate the refrigeration system is removing heat from the cooling fluid. As the operating temperature approaches the setpoint, the LED will flash. viii Merlin Thermo Scientific... -
Seite 69: Specifications
Description Chapter 1 Description The Thermo Scientific Merlin Recirculating Chiller is designed to provide a con- tinuous supply of cooling fluid at a constant temperature and flow. The chiller is hard-plumbed and has an air-cooled refrigeration system, plate heat exchanger, recirculating pump, polyethylene reservoir, and a microprocessor temperature controller. -
Seite 70: Wetted Parts
Stainless steel (303,304,316) Plate exchanger, pump parts Soft Solder material (tin) All solder joints Phosphor Bronze Pressure gage bourdon tube Nitrile rubber Pump o-rings, seals Polyethylene (HDPE) Tank Bronze Relief valve Nickel (plating) Tank isolation valve 1- 2 Merlin Thermo Scientific... -
Seite 71: Chapter 2 Installation And Operation
Direction of Airflow Excessively dusty areas should be avoided and a periodic cleaning schedule should be instituted (see Chapter 4, Maintenance). Optional air filters are available, contact our Service Department. See Preface, After-Sale Support. Merlin 2 - 1 Thermo Scientific... -
Seite 72: Electrical Requirements
2 full turns ±¼ turn to seal. Overtightening will damage the female thread. Connect to the hose feeding the inlet of your application. Connect to the hose from the outlet of your application. Clamp all connections. 2 - 2 Merlin Thermo Scientific... - Seite 73 Never use flammable or corrosive fluids with this chiller. Do not use automotive antifreeze. Commercial antifreeze contains silicates that CAUTION can damage the pump seals. Use of automotive antifreeze will void the manufacturer’s warranty. The chiller is designed to use: HFE-7100 HFE-7200 FC-3283 FC-77. Merlin 2 - 3 Thermo Scientific...
-
Seite 74: Filling Requirements
90°. System temperature changes with the isolation valves closed, and CAUTION while circulating to a closed system, can create a vacuum and/or high pressure conditions. 2 - 4 Merlin Thermo Scientific... -
Seite 75: Controller
Indicates refrigeration system status. It illuminates to indicate the refrigeration system is removing heat from the cooling fluid. As the operating temperature approaches the temperature setpoint, the LED will flash. The indicator is off when heat is not being removed. Merlin 2 - 5 Thermo Scientific... - Seite 76 Save . After pressing an arrow key, if any change using is not pressed within 60 seconds the display will return to the recirculating temperature display and ignore any change. 2 - 6 Merlin Thermo Scientific...
-
Seite 77: Start Up/Shut Down
2°C of either temperature alarm setting discussed on the next page. Trying to use a setpoint within 2°C causes the appropriate indicator to flash and sounds the audible alarm twice. Merlin 2 - 7 Thermo Scientific... - Seite 78 NOTE Enabling serial communications disables the remote start/stop feature. In either mode, the setpoint and alarm values can not be changed using the controller but they can still be viewed. 2 - 8 Merlin Thermo Scientific...
-
Seite 79: External Sensor
The circuit protector located on the rear of the chiller is not intended CAUTION to be used as a disconnecting means. Always turn the chiller off and disconnect it from its supply voltage CAUTION before moving it. Merlin 2 - 9 Thermo Scientific... -
Seite 80: Setup/Tuning Loop
. This section of the loop is applicable only to chillers configured for serial communications capability. Changes made in the Tuning/Setup Loop take affect when is pressed at prompt. Pressing at the prompt aborts all changes. 2 - 10 Merlin Thermo Scientific... - Seite 81 Chapter 2 HOLD XX.X Indicates Optional Displays To select rtd2 ensure remote probe is properly connected to rear of chiller. Accept All Changes Merlin 2 - 11 Thermo Scientific...
- Seite 82 Chapter 2 2 - 12 Merlin Thermo Scientific...
-
Seite 83: Communication Connector
RS-232 COMM No connection No connection GND = Signal ground 6 - 9 No connection TX = Transmitted data from controller RX = Received data to controller. Hardware Mating Connector AMP Part# 745492-2 or equivalent Merlin 3 -1 Thermo Scientific... -
Seite 84: Remote Start/Stop
56 volts peak. Rating for both normally open and normally closed status relay contacts are: Maximum rated load - 1.0 Amp, 24 Volts AC/DC, resistive. Minimum permissible load - 1 ma @ 5 VDC. 3 - 2 Merlin Thermo Scientific... -
Seite 85: External Temperature Sensor
The external probe can be used to control the high and low temperature monitors using the Setup/Tuning Loop, see Chapter 2. NOTE If you also need to monitor status while using the external sensor, an optional Y-connector cable is available from Thermo Fisher. Merlin 3 - 3 Thermo Scientific... -
Seite 86: Reservoir Level Warning/Fault
Once the cause of the low flow is identified and corrected restart the chiller, if necessary. The chiller is configured to run or shut down using the controller's Setup/ Tuning Loop, see Chapter 3. 3 - 4 Merlin Thermo Scientific... -
Seite 87: Error Codes
BOM invalid Functional/ Machine errors These errors will clear themselves once the problem disappears. Display Indication Low temp setpoint warning/fault Low level warning, fluid below minimum fill level, see Chapter 2 High temp setpoint warning/fault Shorted internal temperature sensor (rdt1) Open internal temperature sensor (rtd1) Merlin 4 - 1 Thermo Scientific... -
Seite 88: Displaying Software Version Number
The display will show the decimal point and the digit to the right of the decimal point, for example, . 5. Press The display will show the revision letter, as its equivalent number, for example, = A. 6. Press Disregard this display. 7. Press The display returns to the recirculating fluid temperature. 4 - 2 Merlin Thermo Scientific... -
Seite 89: Controller Pid Values
After initial installation we recommend a monthly visual inspection of the condenser. After several months, the cleaning frequency will be established. CAUTION Use care cleaning the condenser fins, they can be easily bent. Thermo Scientific Merlin 4 - 3... -
Seite 90: Power Cable Mating Ends
NOTE The relief valve may drip if the threaded stem is backed out too far. NOTE Should the chiller start to vibrate the valve setting may be the cause. Changing the pressure setting ±5 psi will eliminate the vibration. 4 - 4 Merlin Thermo Scientific... -
Seite 91: Pump Strainer
NOTE Some chillers with ¾ inch fittings also have a brass end cap, see illustration below. Brass Cap (some chillers only) Screen Fitting ¾" Right-side view Clean the screen by rinsing it with water. When the screen is clean, replace it and the cap. Tighten the fitting and replace the panel. Refer to Section III for instructions on replacing the cooling fluid. Thermo Scientific Merlin 4 - 5... -
Seite 92: Temperature Sensor Calibration
Press again and the display will flash between r1H and the current probe temperature. to adjust the r1H display. Once the display temperature matches the reference thermometer press twice. Press until Stor is displayed, press to accept the new value. Repeat for the low-end temperature r1L. 4 - 6 Merlin Thermo Scientific... - Seite 93 After pressing at the Stor prompt wait several seconds before proceeding to ensure that a bad calibration message does not appear. Premature use of the keypad after pressing may cancel the bad calibration error message. Thermo Scientific Merlin 4 - 7...
-
Seite 94: Decommissioning/Disposal
Draining in this Section. Store the chiller in the temperature range of -25°C to 60°C (with packaging), and <80% relative humidity. CAUTION If the chiller is stored for more than 90 days it must be flushed with clean fluid before operating. 4 - 8 Merlin Thermo Scientific... -
Seite 95: Checklist
10 seconds, the controller will power. Turn serial communications off using the procedure in Chapter 2, and then press to turn off the controller. Press again to start the chiller. Merlin 5 -1 Thermo Scientific... - Seite 96 Make sure the air intake and discharge are not impeded and the ambient temperature does not exceed +35°C. d. Make sure the condenser is free of dust and debris, see Chapter 4, Maintenance and Cleaning. e. Verify the controller's PID values, see Setup/Tuning Loop. 5 - 2 Merlin Thermo Scientific...
-
Seite 97: Service Assistance
Preface, After-sale Support). Before calling, please obtain the following information: Before calling, please obtain the following information: chiller BOM number chiller serial number chiller software version voltage of power source Merlin 5 - 3 Thermo Scientific... - Seite 98 Chapter 5 5 - 4 Merlin Thermo Scientific...
