Activate System Accessories

Once your control unit is programmed,
you will need to activate any accessories
or interfaces that are a part of the
system. Refer to the instructions that
accompanied those devices to set them
up for proper communication with the
GRAFIK Eye QS control unit.
R

Faceplate Removal

The faceplates may need to be removed
to change the color or to write in zone
labels. To remove either faceplate, open it
fully (flush to the wall), and pull up (for the
top faceplate) or down (for the bottom
faceplate) to pull the hinges out of their
slots.
Replace by sliding the hinges back into
their slots.

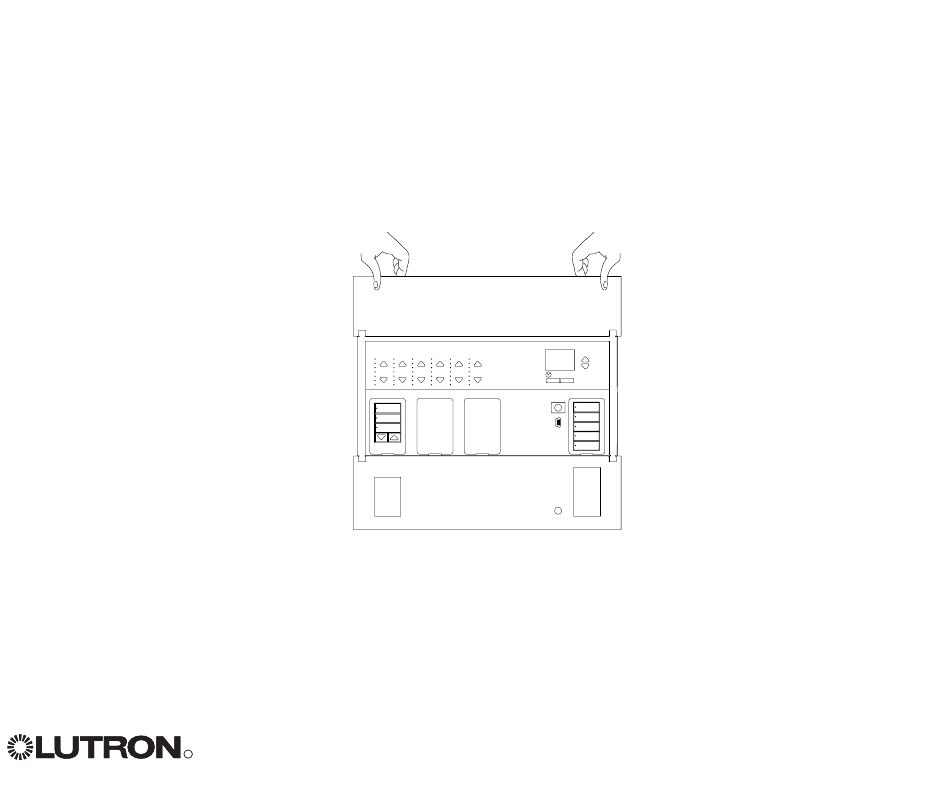

Pull up to remove
top faceplate
1 2 3 4 5 6
Pull down to remove
bottom faceplate
