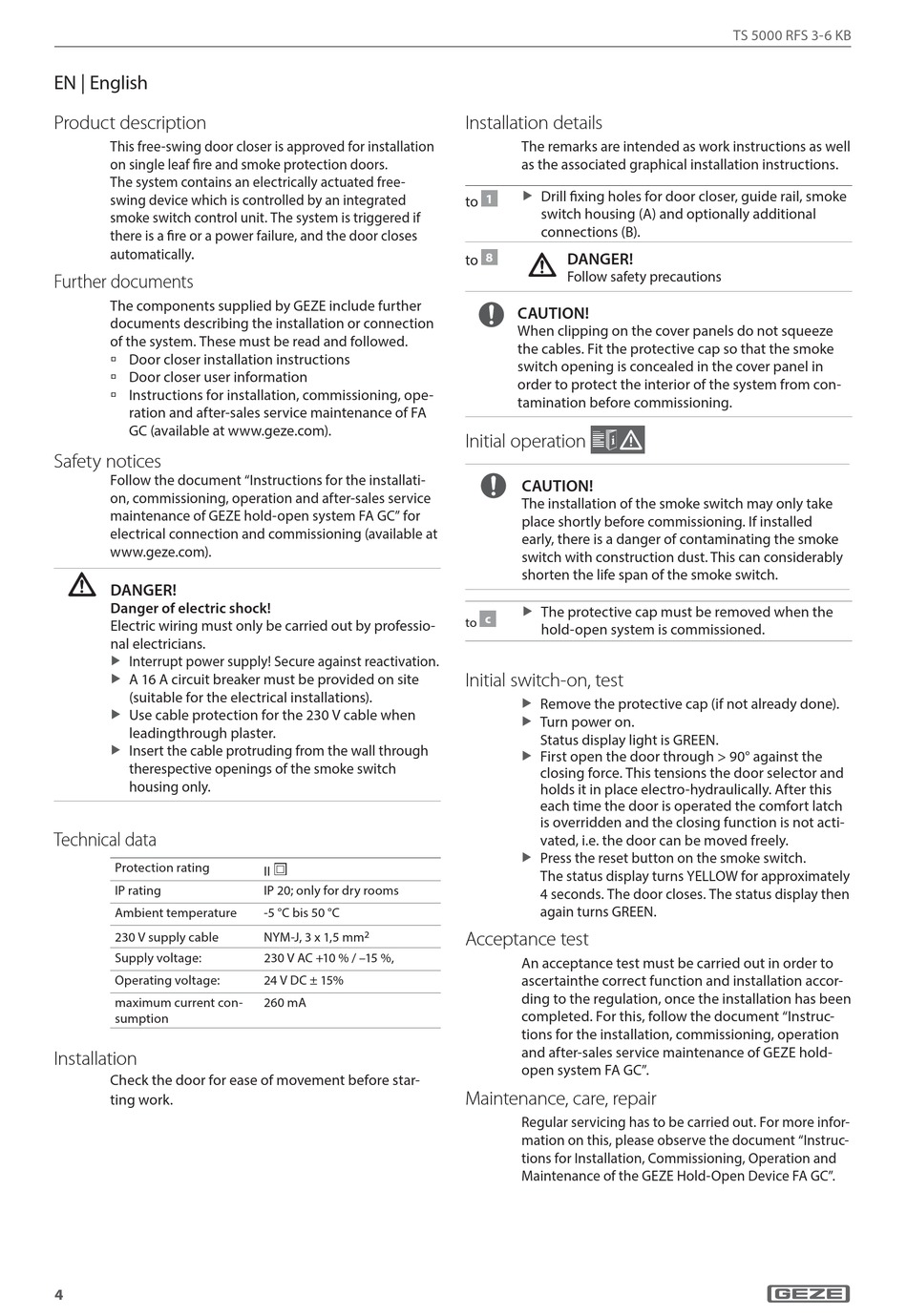

Product description

This free-swing door closer is approved for installation
on single leaf fire and smoke protection doors.
The system contains an electrically actuated free-
swing device which is controlled by an integrated
smoke switch control unit. The system is triggered if
there is a fire or a power failure, and the door closes
.
automatically
Further documents
The components supplied by GEZE include further
documents describing the installation or connection
of the system. These must be read and followed.
à Door closer installation instructions
à Door closer user information
à Instructions for installation, commissioning, ope-
ration and after-sales service maintenance of FA
GC (available at www.geze.com).
Safety notices
Follow the document "Instructions for the installati-
on, commissioning, operation and after-sales service
maintenance of GEZE hold-open system FA GC" for
electrical connection and commissioning (available at
www.geze.com).
DANGER!
Danger of electric shock!
Electric wiring must only be carried out by professio-
nal electricians.
X
Interrupt power supply! Secure against reactivation.
X
A 16 A circuit breaker must be provided on site
(suitable for the electrical installations).
X
Use cable protection for the 230 V cable when
leadingthrough plaster.
X
Insert the cable protruding from the wall through
therespective openings of the smoke switch
housing only.
Technical data
Protection rating
IP rating
Ambient temperature
230 V supply cable
Supply voltage:
Operating voltage:
maximum current con-
sumption
Installation
Check the door for ease of movement before star-
ting work.
4
II
IP 20; only for dry rooms
-5 °C bis 50 °C
2
NYM-J, 3 x 1,5 mm
230 V AC +10 % / –15 %,
24 V DC ± 15%
260 mA
Installation details
The remarks are intended as work instructions as well
as the associated graphical installation instructions.
X
1 Drill fixing holes for door closer, guide rail, smoke
to
switch housing (A) and optionally additional
connections (B).
8
DANGER!
to
Follow safety precautions
CAUTION!
When clipping on the cover panels do not squeeze
the cables. Fit the protective cap so that the smoke
switch opening is concealed in the cover panel in
order to protect the interior of the system from con-
tamination before commissioning.
Initial operation
CAUTION!
The installation of the smoke switch may only take
place shortly before commissioning. If installed
early, there is a danger of contaminating the smoke
switch with construction dust. This can considerably
shorten the life span of the smoke switch.
X
The protective cap must be removed when the
c
to
hold-open system is commissioned.
Initial switch-on, test
X
Remove the protective cap (if not already done).
X
Turn power on.
Status display light is GREEN.
X
First open the door through > 90° against the
closing force. This tensions the door selector and
holds it in place electro-hydraulically. After this
each time the door is operated the comfort latch
is overridden and the closing function is not acti-
vated, i.e. the door can be moved freely.
X
Press the reset button on the smoke switch.
The status display turns YELLOW for approximately
4 seconds. The door closes. The status display then
again turns GREEN.
Acceptance test
An acceptance test must be carried out in order to
ascertainthe correct function and installation accor-
ding to the regulation, once the installation has been
completed. For this, follow the document "Instruc-
tions for the installation, commissioning, operation
and after-sales service maintenance of GEZE hold-
open system FA GC".
Maintenance, care, repair
Regular servicing has to be carried out. For more infor-
mation on this, please observe the document "Instruc-
tions for Installation, Commissioning, Operation and
Maintenance of the GEZE Hold-Open Device FA GC".
TS 5000 RFS 3-6 KB
