Schieber entfernen / remove slide plate
X
1
2

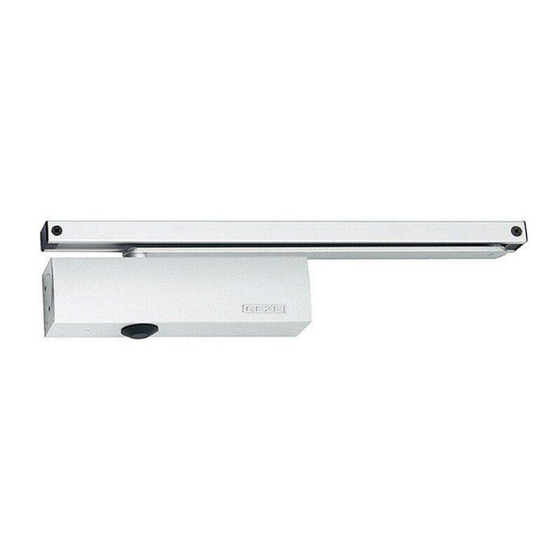

GEZE TS 5000
1
Türschließergröße / closer size
2
Schließgeschwindigkeit / closing speed
3
Endschlag / latching action
Endschließgeschwindigkeit (nur bei TS 5000
SoftClose) / closing speed (only for TS 5000
SoftClose )
4
Öffnungsdämpfung / back check
5
Schließverzögerung (nur bei TS 5000 S) /
delayed closing action (only for TS 5000 S)
GEZE TS 4000
1
Türschließergröße / closer size
2
Schließgeschwindigkeit / closing speed
3
Endschlag (nur bei TS 4000 S) /
latching action (only for TS 4000 S)
4
Öffnungsdämpfung / back check
5
Schließverzögerung (nur bei TS 4000 S) /
delayed closing action (only for TS 4000 S)
Schieber aufklipsen / clip on slide plate
X
2
Anzeige Türschließergröße
closer size
2
3
4
5
6
Leichtgängige Tür muß vom Schließer
vollständig geschlossen werden!
Smooth-moving door must be completely closed
by the closer!
Anzeige Türschließergröße
closer size
1
2
3
4
5
6
Leichtgängige Tür muß vom Schließer
vollständig geschlossen werden!
Smooth-moving door must be completely closed
by the closer!
Einstellung Endschlag
latching action setting

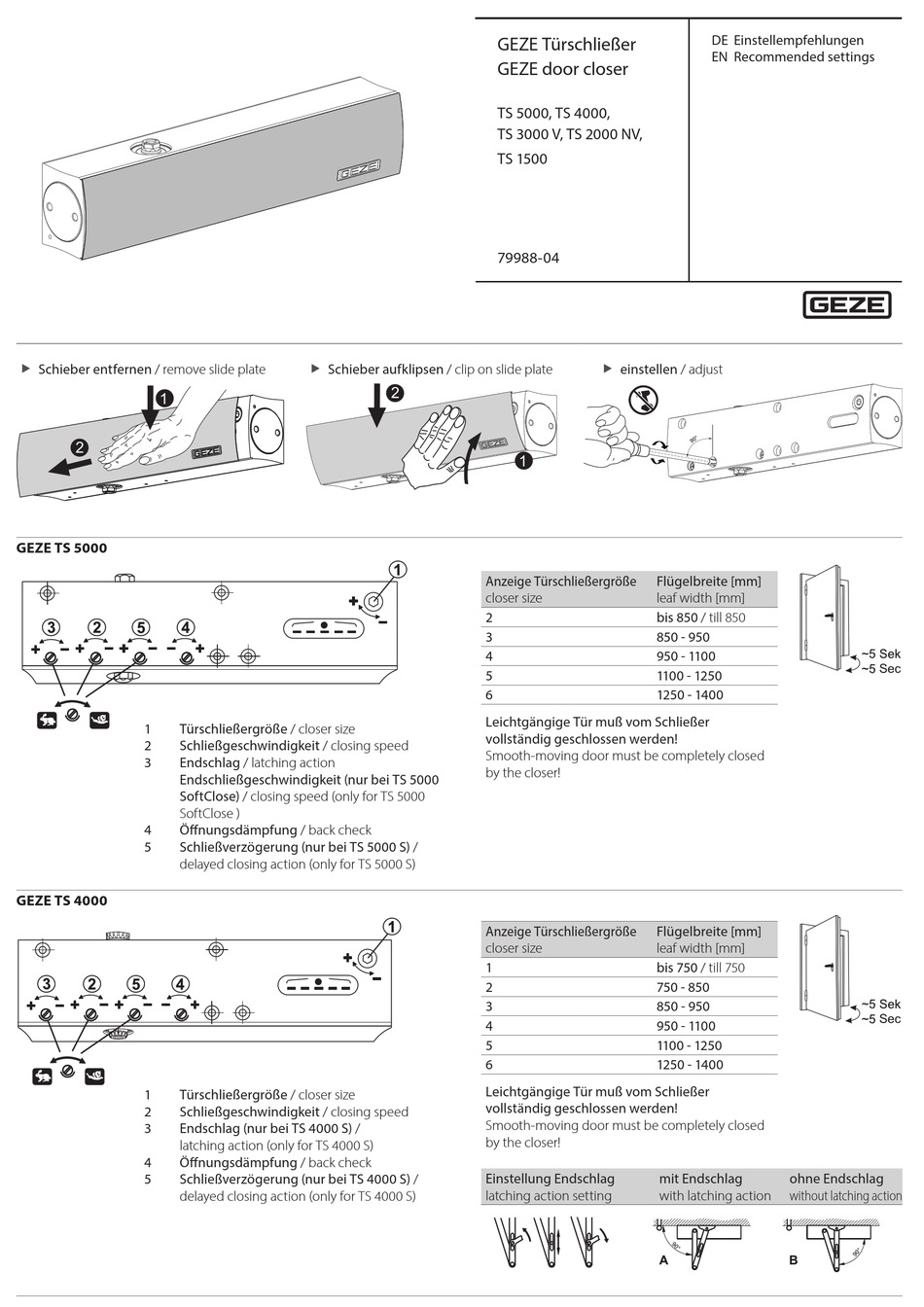

GEZE Türschließer
GEZE door closer
TS 5000, TS 4000,
TS 3000 V, TS 2000 NV,
TS 1500
79988-04
einstellen / adjust
X
1
Flügelbreite [mm]
leaf width [mm]
bis 850 / till 850
850 - 950
950 - 1100
1100 - 1250
1250 - 1400
Flügelbreite [mm]
leaf width [mm]
bis 750 / till 750
750 - 850
850 - 950
950 - 1100
1100 - 1250
1250 - 1400
mit Endschlag
with latching action
DE Einstellempfehlungen
DE Einstellempfehlungen
GB Recommended settings
EN Recommended settings
Sec
Sec
ohne Endschlag
without latching action
