Installation Guide

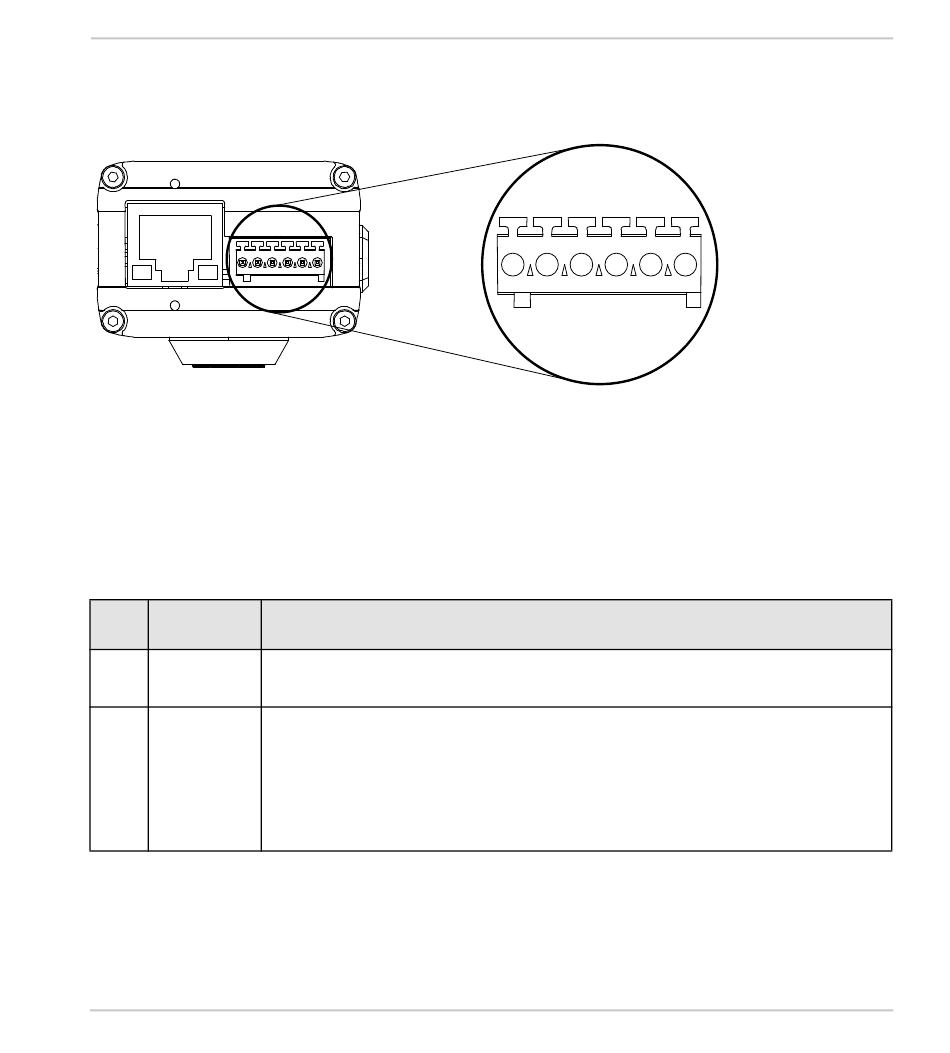

The pin numbering for the terminal connector is as shown below.
Fig. 2: Terminal Connector Pin Numbering
The pinout for the terminal connector is as described in Table 2.
Pin Function
1 Ground
2 Camera
Power
Table 2: Camera Pinout
6
Description
Ground (for camera power, for the IO signals, and for the RS-232
serial port)
Use this connection to supply power to the camera (if you are not
supplying camera power via PoE)
Nominal operating voltage: +12 VDC
Voltage applied: between +7 and +20 VDC
Maximum power consumption: 5 W
1 2 3 4 5 6
