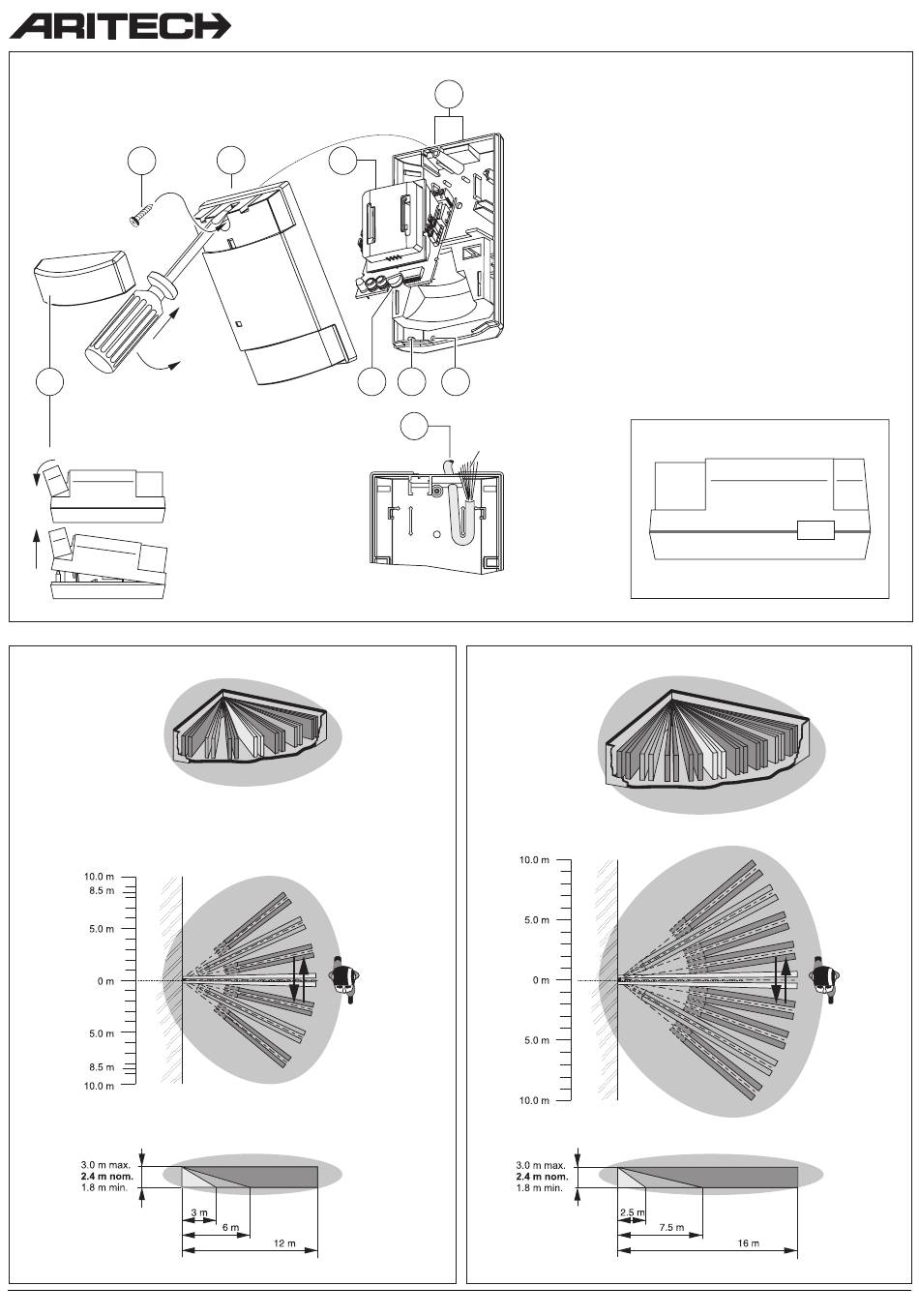

- Seite 1 DD400(UK) SERIES DUAL TECHNOLOGY DETECTOR 5 cm FÜR VdS INSTALLATIONEN fig. 1a. fig. 1b. fig. 2. DD450 Series fig. 3. DD470 Series - 1 -...
- Seite 2 Mounting instructions (fig.1). SITING THE DETECTOR. Lift off the cover plate as shown. Open the detector and remove The dual technology processing of this detector is very resistant to false electronic module , taking care not to touch pyro-electric sensor . Break alarm hazards.
- Seite 3 POSIZIONAMENTO DEL RIVELATORE. ISTRUZIONI PER IL MONTAGGIO (fig.1). Togliere la calotta di copertura sollevandola come da illustrazione. Aprire L’elaborazione dei segnali di questo sensore a doppia tecnologia lo rende il rivelatore ed estrarre il modulo elettronico , prestando attenzione a non molto resistente ai rischi di falsi allarmi.
- Seite 4 -0V +12V SPARE LED/ -0V +12V SPARE SPARE WALK ALARM TAMPER SPARE ALARM TAMPER LATCH TEST WALK TEST WALK TEST MEM/POL Dual = "CV" to terminal 9 Dual = "CV" to terminal 10 DD455 DD457 PIR = "CV" not connected to terminal 9 + 10 RANGE RANGE...
- Seite 5 -0V +12V SPARE LED/ -0V +12V SPARE SPARE WALK ALARM TAMPER SPARE LATCH TEST ALARM TAMPER WALK TEST WALK TEST MEM/POL Dual = "CV" to terminal 9 Dual = "CV" to terminal 10 DD475 DD477 PIR = "CV" not connected to terminal 9 + 10 RANGE RANGE...
- Seite 6 ALARM MEMORY (fig. 6). Note 1: Enabling the walk test will not clear alarm memory. After disarming the system (DD457/458/477/478) . after an alarm, you may switch to walk test. When you switch back out of walk test, the Note: First set the Control Voltage ("CV") by jumper J2. indication of memorized alarms will re-appear.
- Seite 7 DD457 / DD458 / DD477 / DD478 J2 = "+", then "CV" = 12 Volt = " HIGH "). J2 = "-", then "CV" = 0 Volt = " LOW "). Latch: +12 Volt to terminal 9 Latch: 0 Volt to terminal 9 Walk test: +12 Volt to terminal10...
- Seite 8 Esto inactiva la parte de las cortinas que miran hacia el objeto, las que - de otra manera- al cerrarse podrían alterar el buen funcionamiento del detector. © Aritech is a division of SLC Technologies BV. 1999. All rights reserved. - 8 - 3147-5B...
