During operation
W
If the device is not fastened correctly, other parts may be damaged by
uncontrolled device movements. Please ensure that the device is securely
fastened to a base plate, which in turn is secured to the machine or a mounting
plate.
W
Touching the valve coils during operating may lead to burns. Let the device cool
off before disassembling. Do not touch the device during operation.
W
If the housing ventilation port is closed, there is no atmospheric equalization and
the characteristics curve will change. Ensure that the air can circulate freely
through the housing ventilation port. Never operate the device in an atmosphere
containing oil.
During cleaning
W
Never use solvents or aggressive detergents. Only clean the device using
a slightly damp cloth. Only use water and, if necessary, a mild detergent.
Disposal
W
Dispose of the device in accordance with the currently applicable regulations in
your country.
3

Delivery Contents

The delivery contents include:
W
1 ED07 pressure regulator
W
1 gasket
W
4 screws M5x90 (DIN EN ISO 4762, formerly DIN 912)
W
1 set of operating instructions
4 Applications for the ED07 Pressure
Regulator
The ED07 pressure regulator converts an electrical set point into pressure. In doing
so, a pressure sensor integrated in the ED07 pressure regulator records the outlet
pressure.
The integrated control electronics regulates the outlet pressure. Due to this, the
controlled outlet pressure remains constant if there are disturbance variables such
as flow changes or supply pressure fluctuations.
With the ED07 pressure regulator, you can
W
electrically change pressures,
W
remotely adjust pressures.
Additionally, you can use the ED07 pressure regulator as an actuator to control brake
forces, clamping forces, flow rates, or turbine speeds.
5

Device Description

The ED07 pressure regulator is available in three connection versions and various
output pressures.
O Refer to the name plate of your version for further details.
ED07 pressure regulator with three M12 connections
14
13
5
12
7
11
10

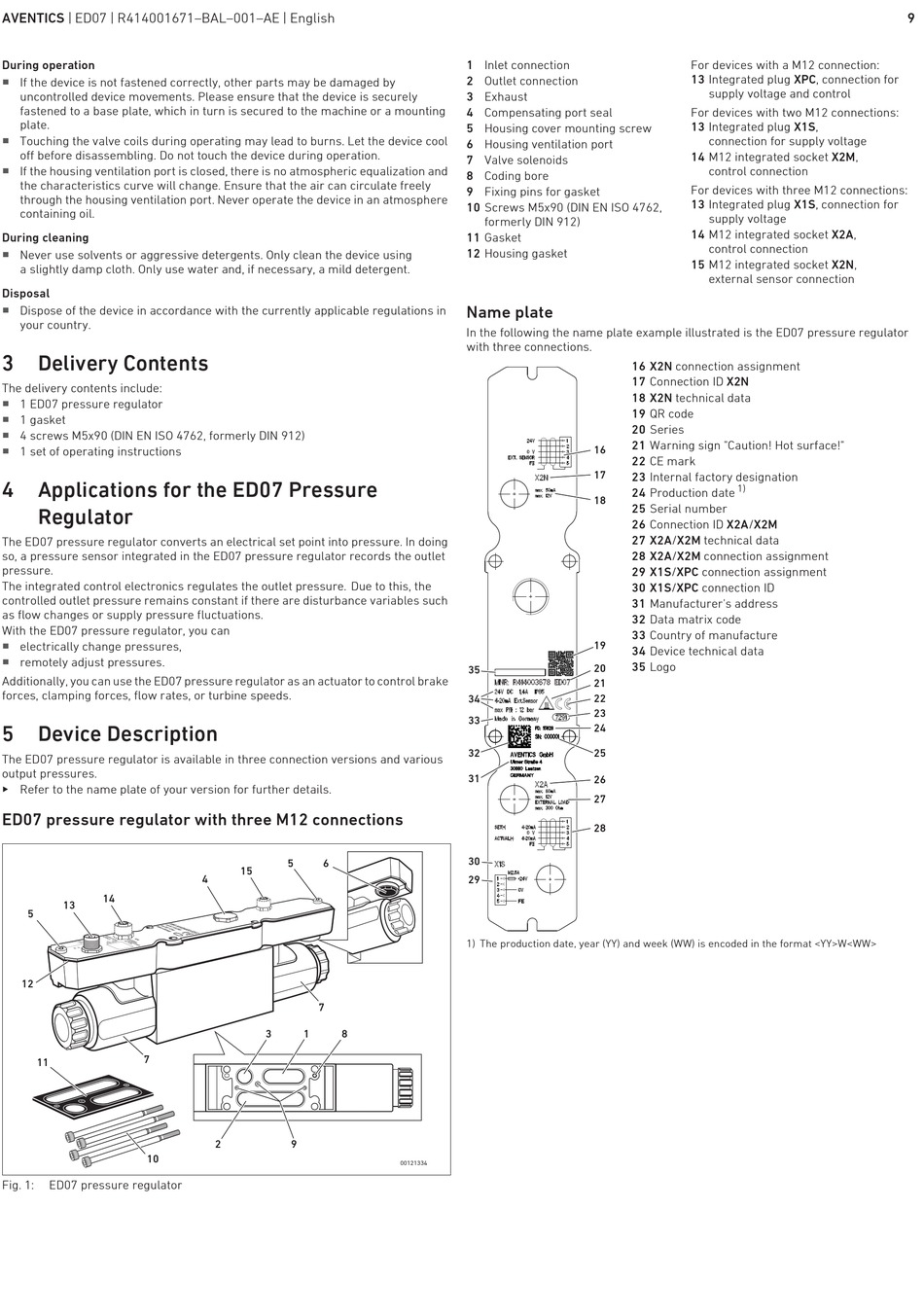

Fig. 1: ED07 pressure regulator
5 6
15
4
7
3 1 8
2 9
1 Inlet connection
2 Outlet connection
3 Exhaust
4 Compensating port seal
5 Housing cover mounting screw
6 Housing ventilation port
7 Valve solenoids
8 Coding bore
9 Fixing pins for gasket
10 Screws M5x90 (DIN EN ISO 4762,
formerly DIN 912)
11 Gasket
12 Housing gasket
Name plate
In the following the name plate example illustrated is the ED07 pressure regulator
with three connections.
35
34
33
32
31
30
29
1) The production date, year (YY) and week (WW) is encoded in the format <YY>W<WW>
00121334
For devices with a M12 connection:
13 Integrated plug XPC, connection for
supply voltage and control
For devices with two M12 connections:
13 Integrated plug X1S,
connection for supply voltage
14 M12 integrated socket X2M,
control connection
For devices with three M12 connections:
13 Integrated plug X1S, connection for
supply voltage
14 M12 integrated socket X2A,
control connection
15 M12 integrated socket X2N,
external sensor connection
16 X2N connection assignment
17 Connection ID X2N
18 X2N technical data
19 QR code
20 Series
21 Warning sign "Caution! Hot surface!"
16
22 CE mark
17
23 Internal factory designation
1)
24 Production date
18
25 Serial number
26 Connection ID X2A/X2M
27 X2A/X2M technical data
28 X2A/X2M connection assignment
29 X1S/XPC connection assignment
30 X1S/XPC connection ID
31 Manufacturer's address
32 Data matrix code
33 Country of manufacture
19
34 Device technical data
35 Logo
20
21
22
23
24
25
26
27
28
