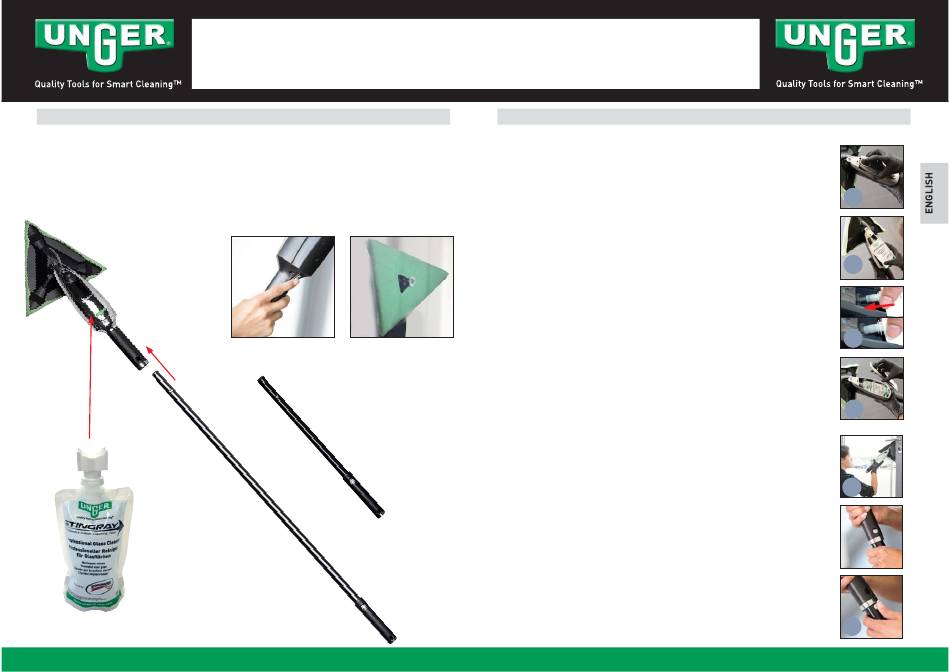

2. System Overview

Stingray is a modular system. The handheld cleaning unit consists of a triangle cleaning head
equipped with a microfi bre TriPad. The head is fl exible and has an embedded spray jet in the centre.
The body of the unit can be opened to change the glas cleaner pouch and to change batteries.
The handheld unit can be used as a hand tool or can be extended/colapsed with Easy-Click extension
poles. The spray activation button on the back of the unit is used to release the glass cleaner.
Every Easy-Click pole section has a spray activation button, to release the glass cleaner.
Handheld Unit
SRKT1
Glass Cleaner
SRL01
8 www.ungerglobal.com/stingray
Stingray Cleaning System
System Overview
Easy-Click Pole short, 63cm
SREXS
Easy-Click Pole long, 124cm
SREXL
Stingray Cleaning System

Installation

3. Installation

3.1 Installing the pouch with glass cleaner

• Take a new pouch out of the box and screw off the protective cap.
• Open the compartment on handheld unit by sliding the black button back and
remove the lid (picture 1).
• Push the pouch onto the connector at the top of the compartment. You can
rotate the connection stem up to have better access. (picture 2) Always change
the pouch with the with the cleaning head facing up.
• Push the pouch as far as possible on the connection stem to prevent leakage.
(picture 3)
• Push the pouch and pin down so that it fi ts into the compartment.
• Replace the lid and confi rm that the black button is locked in place (picture 4)
• Attention: Always change the pouch by holding the system with cleaning head
up. Pull the pouch down, so you prevent leackage in this compartment. Clean
and dry possible spills with a clean cloth.
3.2 Assembly of the TriPad
• The system is equipped with a triangle shaped microfi bre pad.
• The TriPad provides maximum cleaning power in combination with the Stingray
Glass Cleaner.
• Just put the Microfi bre Tri Pad onto the padholder. Fix it in place with the
elastic straps in each corner.
• Once the TriPad is dirty, just take it off and wash it. Please see care label.
• The area that can be cleaned with one pad will vary depending on the condition
of the surface being cleaned.
3.3 Easy-Click-Extension poles
• The handheld unit can be used as a hand tool for easy to reach areas. (picture 5)
• The hand held unit can be extended to reach higher or hard to reach surfaces
using the available short 63 cm or the longer 124 cm Easy-Click poles
(see page 4).
• The system is designed to use a maximum of two long and one short extensi-
on. In case of maximum pole length it is recommended to use the short pole as
lowest section to get maximum stability. Never exceed maximum recommen-
ded length. Unger is not liable for any damages or injuries resulting from the
failure to follow these instructions.
• The handle of the unit and the Easy-Click poles have a triangular profi le. When
adding extension poles, be sure locking pins are locked into corresponding
pin holes. (picture 6)
• To unlock, press the locking pin and separate the extension poles. (picture 7).
• Be careful to not pinch your fi ngers in the swivel mechanism.
www.ungerglobal.com/stingray
1
2
3
4
5
6
7
9
