4.1 Place the damper in front of the holes of the side and tighten it with the screws F.
4.2 Place the mounting plate for the hinge on the pin of the damper and push it downwards until it fastens
4.3 Push the hinge on her place allover the mounting plate.
4.4 Now click the pivot arm in the mounting bracket for the top
4.5 Insert the cover in the control knob of the hinge
Speelgoedkoffer
Spielwaren-Box

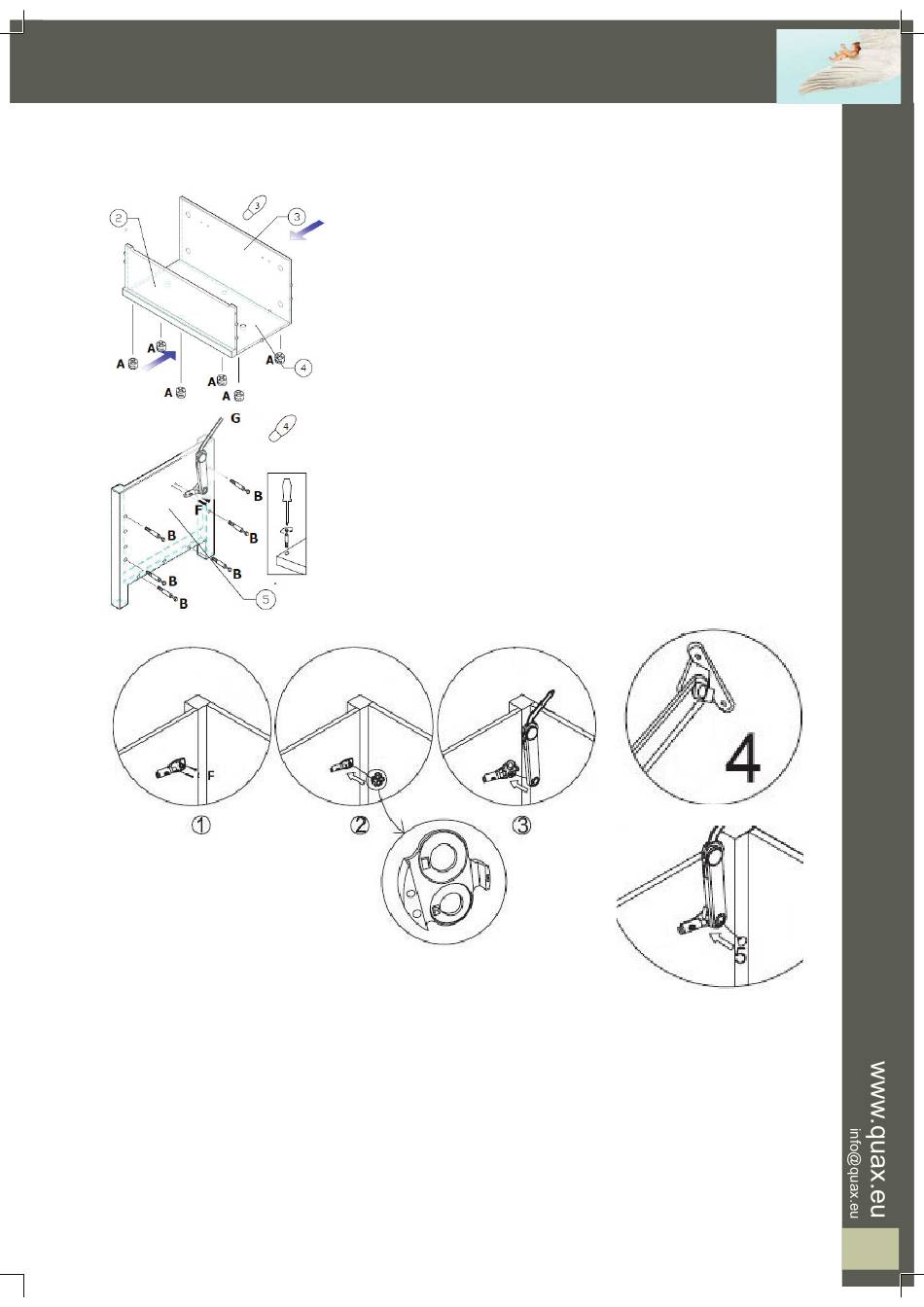

Step 3 : Use the pre-assembled parts of steps 1 and 2, the bottom D,
six eccentric cams A and the hexagonal key E
Place the eccentric cams in the provided openings on the underside of
the bottom. Push the back and the frontal frame with their connecting
bolts in the provided openings of the bottom and fasten the middle ec-
centric cams with the hexagonal key.
Step 4 : Use the sides 5L and 5R, twelve connecting bolts B, the large
hinges and its parts G and two wood screws F
Screw the connecting bolts in the provided openings of the sidepanels.
Fix the large hinge on its place on the left side using the wood screws.
