PCB 1

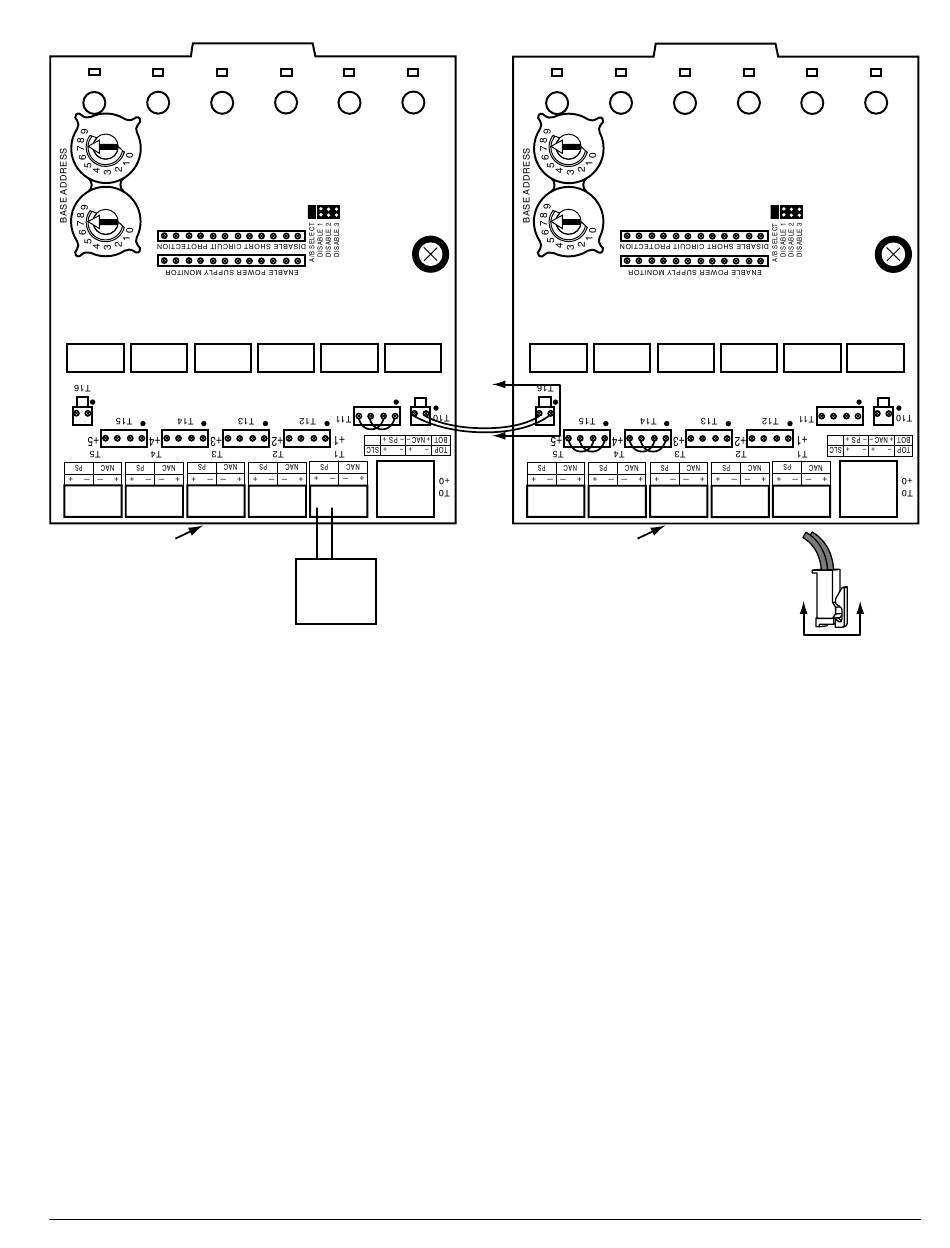

Figure 4: Example of multiple boards sharing same external supply. Supply is shared by Monitored Output Circuits +0
and +1 (on PCB 1) as well as +3, +4, and +5 (on PCB 2). Refer to figure 3 for typical Monitored Output Circuit wiring.
Make certain lip on long power supply jumper engages retaining tab on T10 or T16 as shown in View A-A.
D500-68-00
A
A
+
–
EXTERNAL
POWER
SUPPLY
4
PCB 2
VIEW A-A
I56-2253-01
