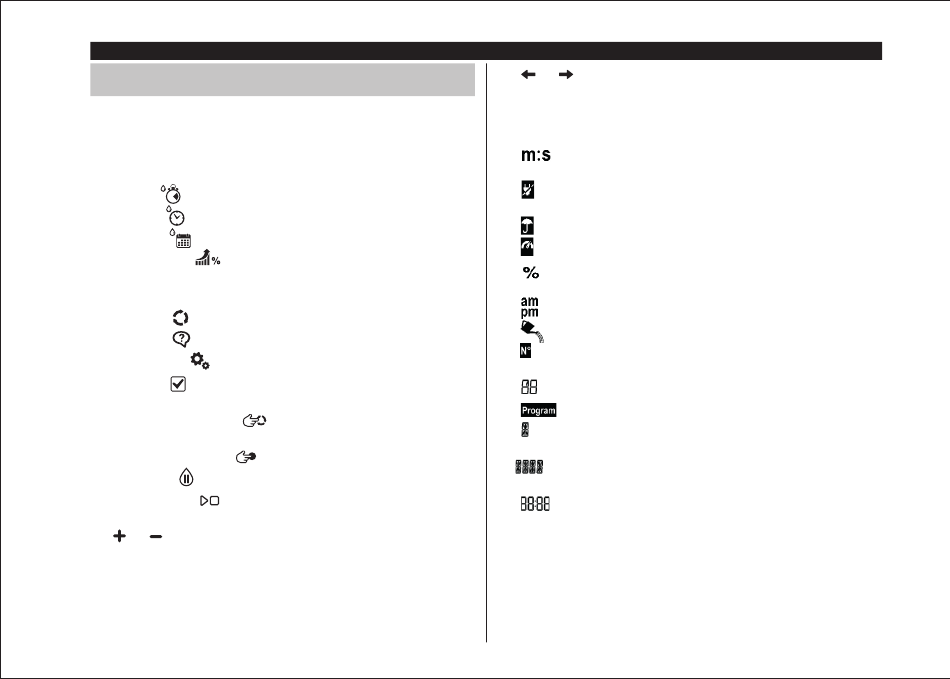

Programming Module Components

1. Programming Module
2. Programming Dial - To select irrigation functions.
Control Dial Positions:
3. Run Time - To set station run time duration.
4. Start Time - To set start times(s) for automatic watering program.
5. Water Days - To set individual days of the week for automatic watering.
6. Watering Budget - To set Watering Budget adjustment for run time
duration.
7. P+ and P- Buttons - Select next/previous irrigation programs.
8. Auto Button - To select automatic operation.
9. Help Button - To show help text on LCD display.
10. Settings Button - To set Controller's parameters.
11. Test Button - To run a program to check hydraulic and electric station
operation.
12. Manual Program(s) Button
operation.
13. Manual Station(s) Button - To select station(s) for manual operation.
14. Pause Button
- Turn off and prevents automatic station operation.
15. Start/Stop Button - To start or stop manual program(s) and station(s) and
test program(s).
16. and Button - Press to increase or decrease display number values and
various functions.
10
- To select watering programs for manual
17. and Button - Press to select next or previous function parameter.
18. Reset Button - Momentarily insert a clip to press the hidden Reset button to
restart operations.
19. LCD Display
20. Symbol - Displayed when the Time duration shown is in minutes and
seconds.
21. Symbol - Displayed when 24 VAC is missing or the Control Module is
removed from the Back Module.
22. Symbol - Diplayed when automatic irrigation is on Pause.*
23. Symbol - Displayed when sensor is active.*
24. Symbol - Displayed when a Watering Budget run time duration adjustment
is in use.
25. Symbol - Displayed when 12H time format is used.
26. Symbol - Displayed when irrigation currently on.
27. Symbol - Displayed to identify the number of the selection within a
function.
28. 2-digit - Number representing the shown selection.
29. Symbol - Diplayed when an irrigation program is selected.
30. 1-Character - Identifies the irrigation Program selected or M for Master
Valve.
31. 10-Character - Multi-language Text for function description and help
info.
32. Main Display - Shows various time values and controller information.
33. DB15 connector to Back Module.
34. Wi-Fi Module (optional).
35. USB Type A Plug for connecting the Wi-Fi Module (optional).
* When both displayed, Rain Sensor is active
