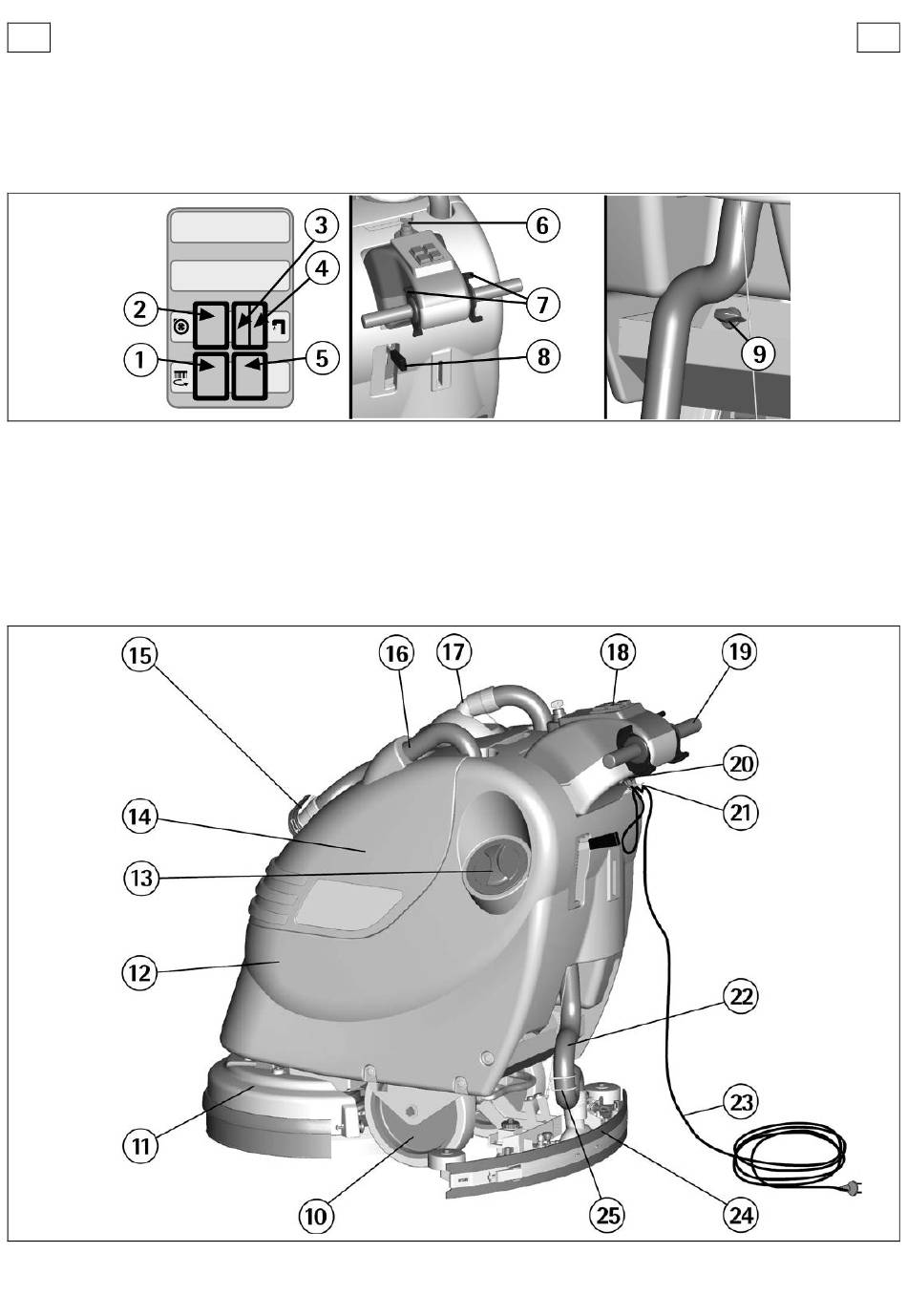

LEGEND INSTRUMENT BOARD AND CONTROLS

1. SWITCH BRUSH MOTOR
2. SWITCH SUCTION MOTOR
3. SIGNAL LAMP FOR PRESENCE OF THE TENSION
4. SIGNAL LAMP SOLENOID VALVE ON
5. RESTORABLE FUSE BRUSH MOTOR

LEGEND MACHINE

10. WHEELS
11. BRUSH BASE GROUP
12. SOLUTION TANK
13. SCREW CAP FOR INLET DETERGENT SOLUTION
14. RECOVERY TANK
15. PLUG EXHAUST HOSE RECOVERY TANK
16. INLET OPENING SQUEEGEE HOSE
17. SUCTION COVER
6. SWITCH WITH KEY (OPTIONAL)
7. LEVERS FOR PRESENCE
8. LEVER SQUEEGEE LIFTING
9. KNOB SOLUTION VALVE
18. INSTRUMENT BOARD
19. HANDLE BARS
20. MAINS PLUG FOR CABLE
21. SUPPORT CABLE BLOCK
22. SQUEEGEE HOSE
23. MAINS CABLE
24. SQUEEGEE ASSEMBLY
25. GUIDE SPRING SQUEEGEE HOSE
