Montage-Anschluss-Anleitung
LED Bedienteil für MB-Secure
Art.-Nr. 013000, 013011, 013013, 013015
LED/LCD Bedienteil für MB-Secure
Art.-Nr. 013001, 013021, 013023, 013025
P00462-10-002-07
2016-02-29
Anerkennung
G114020
D
Änderungen
vorbehalten
GB

Werbung

Kapitel

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Honeywell 013000

  • Seite 1 Montage-Anschluss-Anleitung LED Bedienteil für MB-Secure Art.-Nr. 013000, 013011, 013013, 013015 LED/LCD Bedienteil für MB-Secure Art.-Nr. 013001, 013021, 013023, 013025 P00462-10-002-07 Anerkennung Änderungen G114020 vorbehalten 2016-02-29...
  • Seite 2: Inhaltsverzeichnis

    Montage-Anschluss-Anleitung LED- und LED/LCD Bedienteil f. MB-Secure Inhalt Produktübersicht ............3 Einsatzmöglichkeiten .
  • Seite 3: Produktübersicht

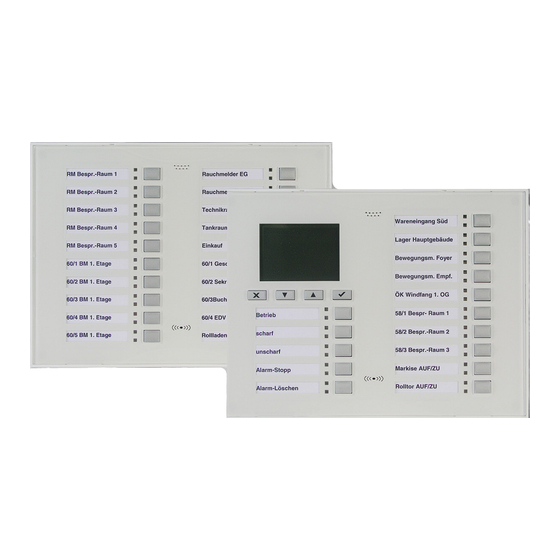

    Montage-Anschluss-Anleitung LED- und LED/LCD Bedienteil f. MB-Secure Produktübersicht 013000 LED Bedienteil Komplettset, weiß, für MB-Secure 013011 LED Fronteinheit komplett (mit Elektronik), weiß 013013 LED Fronteinheit komplett (mit Elektronik), grau 013015 LED Fronteinheit komplett (mit Elektronik), schwarz 013001 LED/LCD Bedienteil Komplettset, weiß, für MB-Secure 013021 LED/LCD Fronteinheit komplett (mit Elektronik), weiß...
  • Seite 4: Leistungsmerkmale

    Montage-Anschluss-Anleitung LED- und LED/LCD Bedienteil f. MB-Secure Leistungsmerkmale • Modularer Aufbau • Mehrere Bedienteile beliebig horizontal und vertikal kombinierbar • Kombinierbar auch mit Touch Bedienteil für MB-Secure • Leser für IK2/proX1 und IK3/proX2 Datenträger integriert • aP-, uP- und Hohlwandmontage möglich •...
  • Seite 5: Rückwand Montieren

    Montage-Anschluss-Anleitung LED- und LED/LCD Bedienteil f. MB-Secure Rückwand montieren 21,5 Legende: Befestigungsbohrungen Kabeleinführungen Deckelkontaktbetätigung und Abreißsicherung Wandbefestigung der Abreißsicherung Haltestege Halter für Kabelbinder zur Zugentlastung Die Rückwand kann als "Bohrschablone" verwendet werden. Schrauben Sie die Rückwand an den mit gekennzeichneten Stellen auf einen sicheren Montage- untergrund.
  • Seite 6: Programmierung

    Montage-Anschluss-Anleitung LED- und LED/LCD Bedienteil f. MB-Secure Programmierung BUS-2 Adresse einstellen Adress-Schalter Die links neben der Klemme vorhandenen DIP-Schalter dienen zur Einstellung der BUS-2 8 7 6 5 4 3 2 1 Adresse. Zulässiger Adressbereich: 1 bis 63 Achten Sie darauf, dass keine Adresse Anschlussklemme mehrfach vergeben wird.
  • Seite 7: Endmontage

    Alarm Beschriftung ® Für die Beschriftung der Einlegestreifen stellt Honeywell eine spezielle Vorlage in MS WORD zur Verfügung. Die gedruckten Einlegestreifen können ausgeschnitten und in die Vertiefungen in der Fronteinheit eingelegt werden. (Beschriftung entspricht der zugeordneten Funktion). Die Word-Vorlage "P00462-04-002-xx" steht im Internet unter "www.honeywell.com/security/de" zum Download zur Verfügung.
  • Seite 8: Frontplatte Befestigen

    Montage-Anschluss-Anleitung LED- und LED/LCD Bedienteil f. MB-Secure Frontplatte befestigen Hinweis: Die Vorgehensweise beim LED/LCD-Bedienteil ist identisch. Zum Einrasten der Frontplatte empfehlen wir folgende Vorgehensweise: Frontplatte mit den u nteren Rastnasen in den Gehäuserahmen einstecken. 2. Die beiden seitlichen Rastnasen unten in den Gehäuserahmen eindrücken.
  • Seite 9: Technische Daten

    218 x 162 x 21,5 mm (Fronteinheit mit Rückwand flach) Farbe weiß (ähnlich RAL 9016), optional grau und schwarz Die LED Bedienteile für MB-Secure, Art.-Nr. 013000/011/013/015 und die LED/LCD Bedienteile für MB-Secure, Art.-Nr. 013001/021/023/025 entsprechen bei bestimmungs- gemäßer Anwendung den grundlegenden Anforderungen gemäß Artikel 3 der R&TTE-Richt- linie 1999/5/EG.
  • Seite 10: 11. Zubehör

    013061 LEGIC Leserplatine für LED und LED / LCD Bedienteil für MB-Secure 12. Wichtiger Hinweis zur Bedienung Die Bedienungsanleitung "P00462-03-002-xx" steht unter "www.honeywell.com/security/de" im Service-/Downloadbereich zum Download bereit. Der Errichter hat die Möglichkeit, diese Anleitung herunterzuladen, entsprechend der Programmier- ung auszufüllen und dem Betreiber an die Hand zu geben.
  • Seite 11 Mounting and Connection Instructions LED Keypad for MB-Secure Item no. 013000 , 013011, 013013, 013015 LED/LCD Keypad for MB-Secure Item no. 01 3001, 013021, 013023, 013025 P00462-10-002-07 approval Subject to change G114020 without notice 2016-02-29...
  • Seite 12: Security Notes

    Mounting and Connection Instructions LED- and LED/LCD Keypad for MB-Secure Table of contents Product overview ............13 Application .
  • Seite 13: Product Overview

    Mounting and Connection Instructions LED- and LED/LCD Keypad for MB-Secure Product overview 013000 LED keypad complete set, white, for MB-Secure 013011 LED keypad front complete (with electronics), white 013013 LED keypad front complete (with electronics), grey 013015 LED keypad front complete (with electronics), black...
  • Seite 14: Features

    Mounting and Connection Instructions LED- and LED/LCD Keypad for MB-Secure Features • Modular design • Multiple keypads can be combined horizontally and vertically as desired • Can also be used in combination with Touch Keypad for MB-Secure • Reader for IK2/proX1 and IK3/proX2 pass cards integrated •...
  • Seite 15: Mount The Case Back

    Mounting and Connection Instructions LED- and LED/LCD Keypad for MB-Secure Mount the case back 21,5 Captions: Fixing holes Cable inlets Cover contact activation and tear-off protection Wall mounting of tear-off protection Retaining connectors Cable tie anchor point for pull relief The housing bottom can be used as a "drilling template"...
  • Seite 16: Programming

    Mounting and Connection Instructions LED- and LED/LCD Keypad for MB-Secure Programming BUS-2 address setting Address switch The DIP switches 1 to 6 serve as coding for the BUS-2 user address. The illustration shows the 8 7 6 5 4 3 2 1 position and valence of the switches.
  • Seite 17: Final Assembly

    Alarm Label ® Honeywell provides a special template in " MS WORD " for the labels on the inlay strips. Printed inlay strips can be cut and inserted into the hollow spaces in the keypad front. (Each label corresponds to the assigned function).
  • Seite 18: Fasten The Front Panel

    Mounting and Connection Instructions LED- and LED/LCD Keypad for MB-Secure Fasten the front panel Note: The procedure for LED / LCD keypad is identical. To engage the front panel we recommend the following procedure: Insert the front panel with the latching lugs at the bottom into the housing frame.
  • Seite 19: Technical Data

    (similar to RAL 9016) optional grey and black The LED Keypads for MB-Secure Item no. 013000/011/013/015 and the LED/LCD Keypads for MB-Secure Item no. 013001/021/023/025 comply with the essential requirements of the R&TTE 1999/5/EC Directive, if used for its intended use.
  • Seite 20: Accessories

    The Operating Instructions "P00462-03-002-xx" can be downloaded from our homepage (Service / Download). "www.honeywell.com/security/de" The installer has the possibility to download these instructions, to complete it in accordance with the programming and to give it to the operator's hand. Honeywell Security Group Novar GmbH Johannes-Mauthe-Straße 14 P00462-10-002-07 D-72458 Albstadt 2016-02-29 www.honeywell.com/security/de...
