Remote Controller - DJI MATRICE 200 Kurzanleitung

Remote Controller

The remote controller features DJI's LIGHTBRIDGE
While flying the aircraft, you have a live HD view directly within the DJI GO
responsive flying experience. Dual frequency support makes the HD video downlink more stable. In Dual Remote Controllers
Mode, each of the two remote controllers controls the aircraft and camera separately. Users can even operate these
mechanisms up to 328 feet (100 m) apart.*
The maximum run-time of the remote controller's LiPo battery is approx. four hours.*

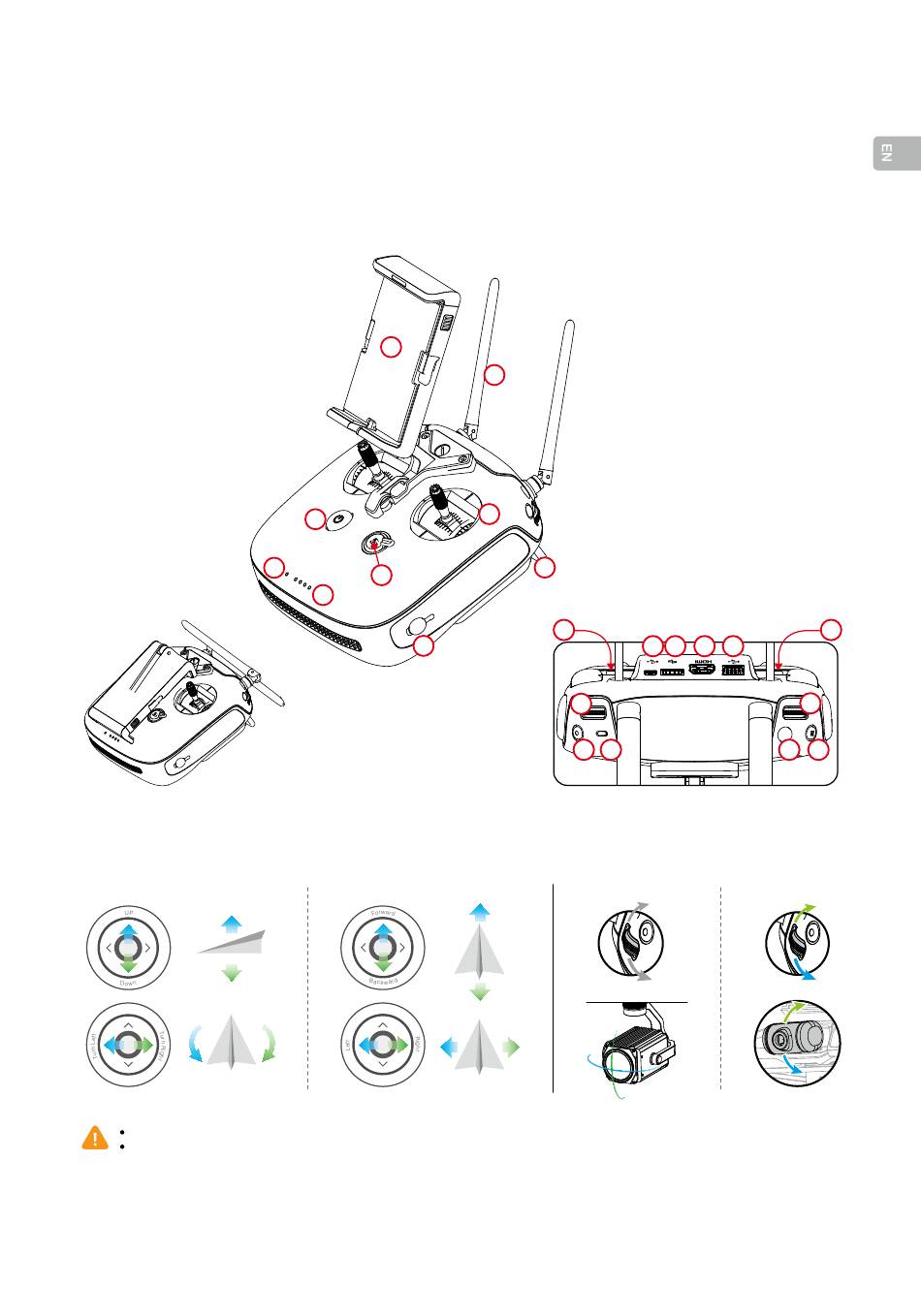

1. Power Button
2. Return-to-Home (RTH) Button
3. Control Sticks
4. Status LED
5. Battery Level LEDs
6. Power Port
7. Mobile Device Holder
8. Antennas
9. Handle Bar
Folded
Stick mode is set to Mode 2 by default (left hand throttle). The left stick controls the aircraft's elevation and heading. The right stick
controls the aircraft's forward, backward, and lateral movements. The gimbal dial controls tilting and panning of the camera. To
adjust the FPV camera, press and hold the C2 Button and rotate the control dial.
Left Stick
For more information about how to connect and use the remote controller, please refer to the user manual.
You can change the stick mode in the DJI GO 4 app.
* The remote controller can reach its maximum transmission distance (FCC) in a wide open area with no Electro-Magnetic interference, and at an
altitude of about 400 feet (120 meters).
For more information about the Dual Remote Controllers Mode, please refer to the user manual.
The maximum run-time is tested without supplying power to a smart device.
To comply with local regulations, the operation frequency of 5.8GHz is not available in some countries.
technology for a maximum transmission distance of up to 4.3 mi (7km).*
TM
7
1
4
2
5
6
Right Stick
4 app on your paired device for a precise and
TM
10. Control Dial (Gimbal/FPV)
11. Camera Settings Dial
12. Record Button
13. Flight Mode Switch
14. Shutter Button
8
15. Pause Button
16. Micro USB Port
17. CAN Bus (Extended Port)
18. HDMI A Port (for Video Output)
19. USB Port (for Mobile Device Connection)
20. C1 Button
21. C2 Button
3
9
20
16 17 18 19
10
12 13
Camera and Gimbal
21
11
14 15
FPV Camera
3
