Names and Functions

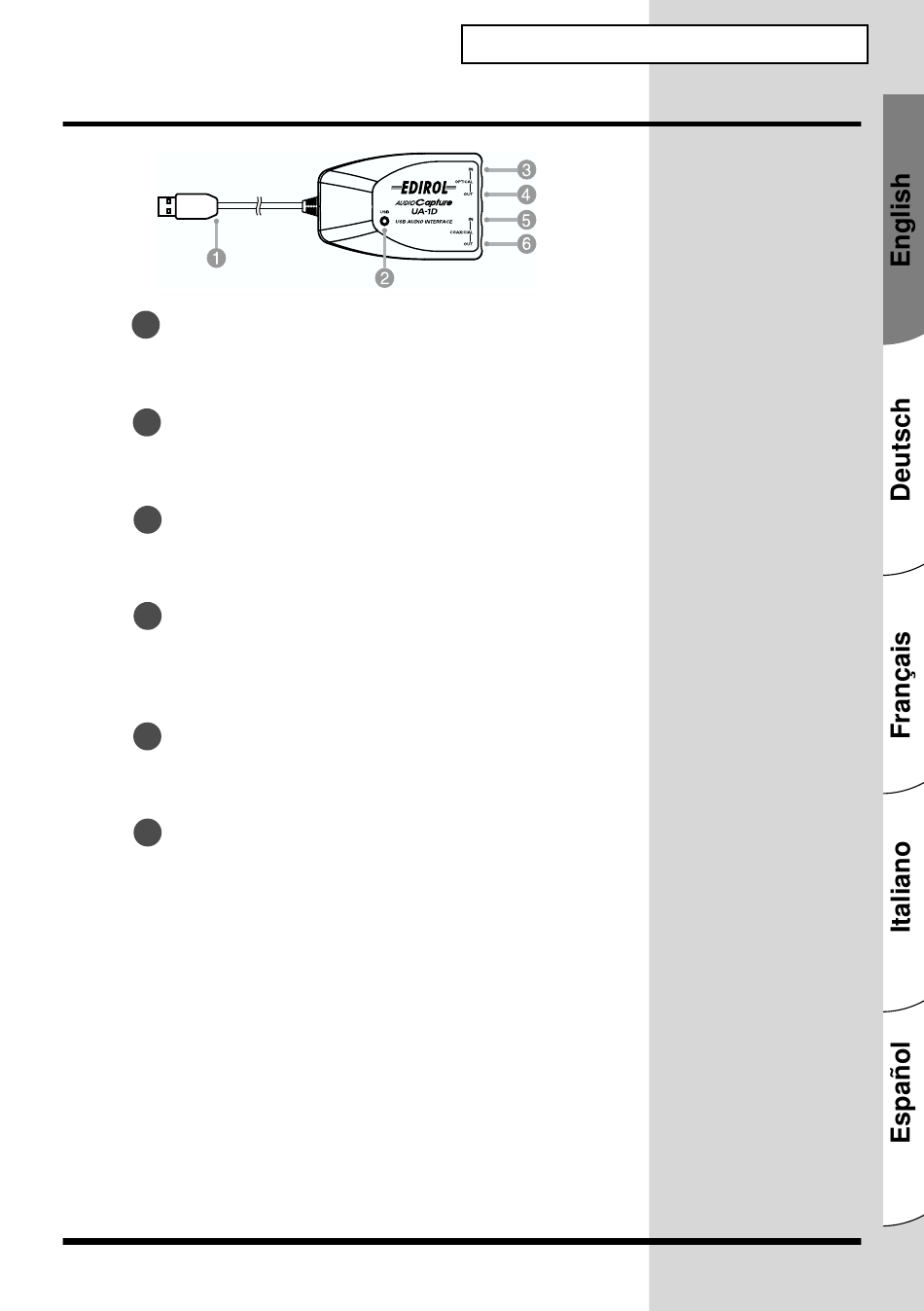

fig.UA1Afunc
1
USB Cable
Connect this cable to the USB connector of your computer.
(600 mm length.)
2
USB Indicator
This indicator will light when the unit is connected to your
computer and is ready to operate.
3
Digital input connector (optical)
Connect an optical cable here when you want to digitally
input an audio signal from a device such as a CD/MD/DAT.
4
Digital output connector (optical)
Connect a coaxial cable here when you want to digitally
output an audio signal to a digital recorder such an MD or
DAT.
5
Digital input connector (coaxial)
Connect a coaxial cable here when you want to digitally input
an audio signal from a device such as a CD/MD/DAT.
6
Digital output connector (coaxial)
Connect a coaxial cable here when you want to digitally
output an audio signal to a digital recorder such as an MD or
DAT.
