Wallbox COMMANDER Installationsanleitung Seite 11

The colours shown are not subject to international
standards. Always check the correct connection.
In the event that the earthing system is IT follow
the configuration steps in 6. Configuring IT
network section.
In the event that the supply scheme does not include a neutral line connection with a voltage lower than
145 V, follow the next configuration steps:

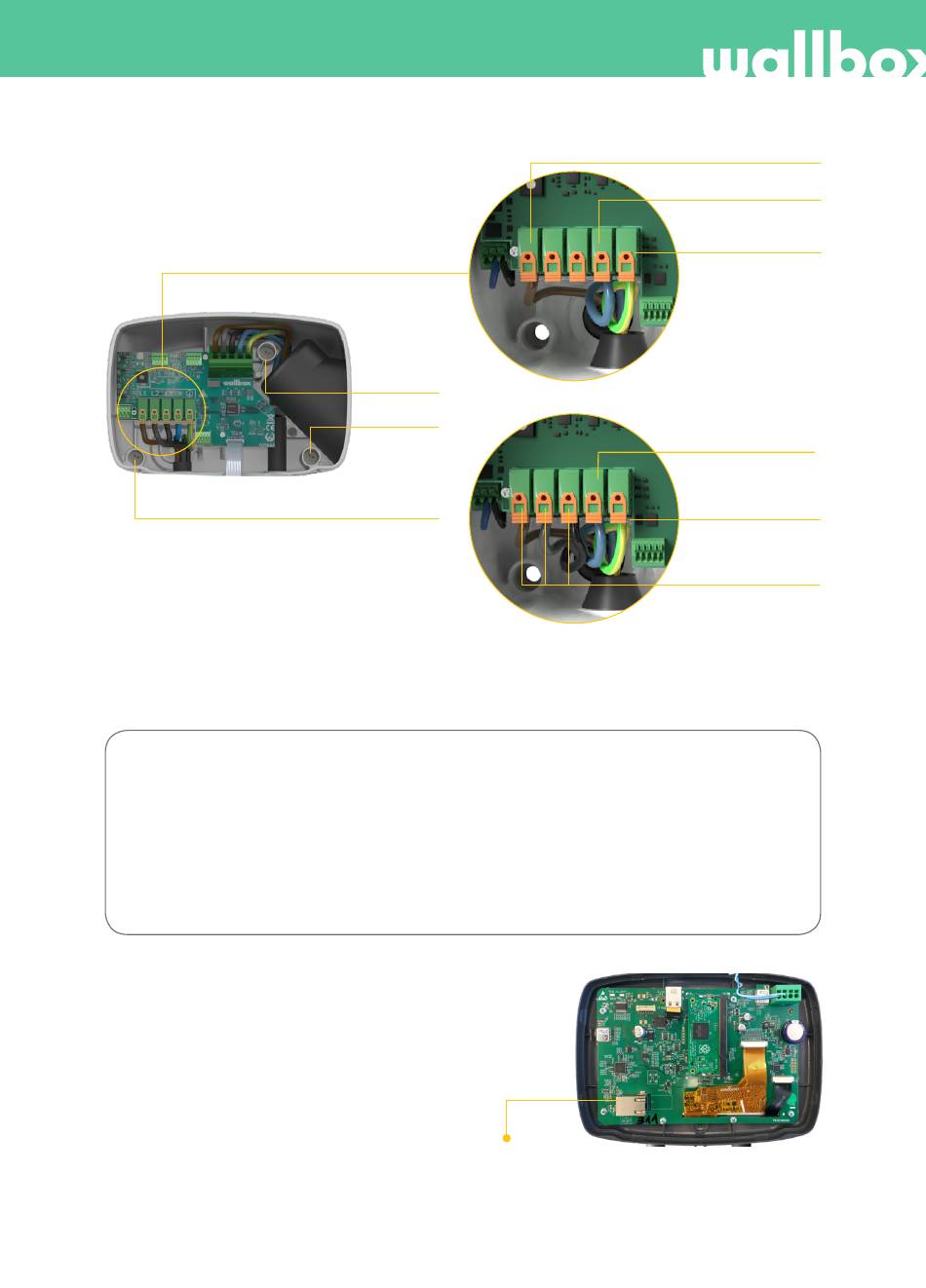

Bi-phase setup (2P)
From left to right:
L1 (Current line)
N (Current line)
Protective earth
4. Ethernet conncetion (I-6)
The charger can be connected to the internet
using a built-in Ethernet port installed on the
module cover.
Step 4.1: Insert the Ethernet cable through
the bushing.
Step 4.2: Connect the cable to the Ethernet port.
1. Screw
2. Screw
I-5. 1
3. Screw
I-6: Ethernet port
L1 (Current line)
N (Neutral line)
Protective earth
I-5.2: Single-phase setup (1P)
N (Neutral line)
Protective earth
L1, L2, L3
(Current lines)
I-5.3: Three-phase setup (3P)
11
