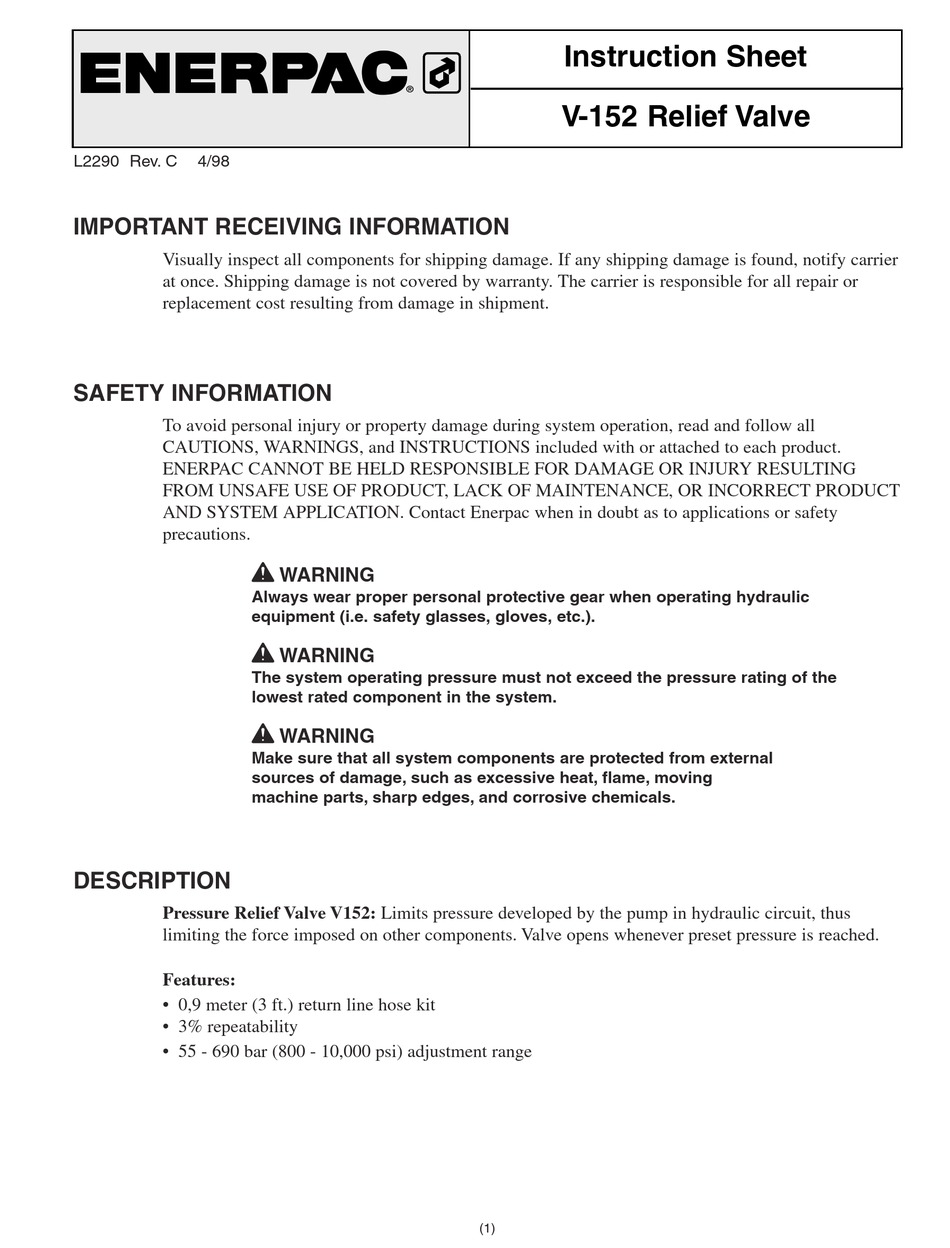

Enerpac V-152 Bedienungsanleitung

L2290 Rev. C 4/98
IMPORTANT RECEIVING INFORMATION
Visually inspect all components for shipping damage. If any shipping damage is found, notify carrier
at once. Shipping damage is not covered by warranty. The carrier is responsible for all repair or
replacement cost resulting from damage in shipment.
SAFETY INFORMATION
To avoid personal injury or property damage during system operation, read and follow all
CAUTIONS, WARNINGS, and INSTRUCTIONS included with or attached to each product.
ENERPAC CANNOT BE HELD RESPONSIBLE FOR DAMAGE OR INJURY RESULTING
FROM UNSAFE USE OF PRODUCT, LACK OF MAINTENANCE, OR INCORRECT PRODUCT
AND SYSTEM APPLICATION. Contact Enerpac when in doubt as to applications or safety
precautions.
) WARNING
Always wear proper personal protective gear when operating hydraulic
equipment (i.e. safety glasses, gloves, etc.).
) WARNING
The system operating pressure must not exceed the pressure rating of the
lowest rated component in the system.
) WARNING
Make sure that all system components are protected from external
sources of damage, such as excessive heat, flame, moving
machine parts, sharp edges, and corrosive chemicals.
DESCRIPTION
Pressure Relief Valve V152: Limits pressure developed by the pump in hydraulic circuit, thus
limiting the force imposed on other components. Valve opens whenever preset pressure is reached.
Features:
• 0,9 meter (3 ft.) return line hose kit
• 3% repeatability
• 55 - 690 bar (800 - 10,000 psi) adjustment range
Instruction Sheet
®
V-152 Relief Valve
(1)
