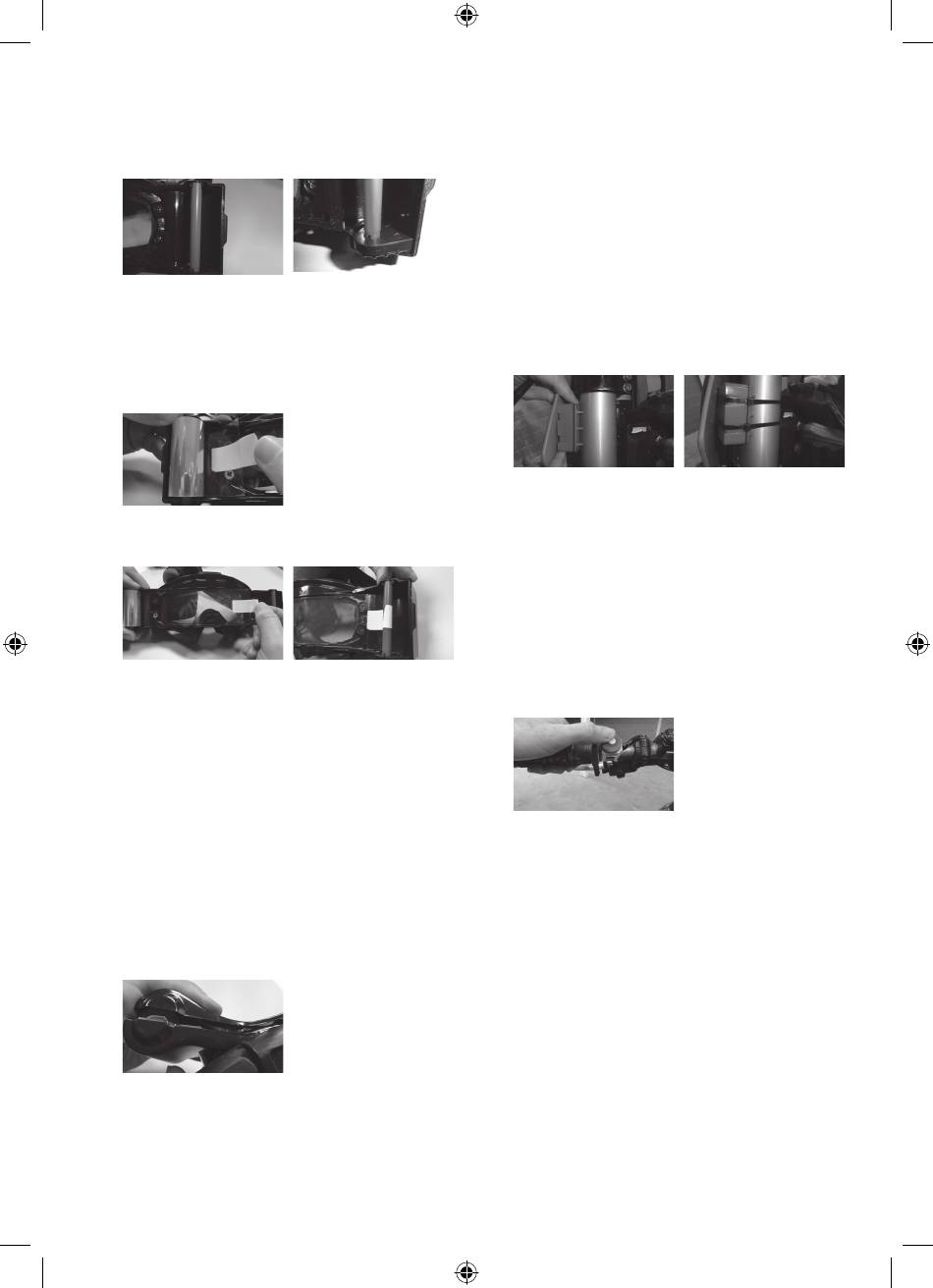

4. Replacing the Speedroll:
4.1 take the red spindle and affix into motor drive side
as shown in fig.5. (ensure the spindle slot and
motor Tooth are interlocking.)
4.2 Load a neW speedroll film into the left side canister
as shown in fig.6.
(Ensure this nEw speedroll is positioned so that the
roll unwinds from underneath to ensure the quality of
the unit's action across the face of the lens as shown
in fig.7.)
4.3 carefully roll the film across the inside track as
shown in fig.8
4.4 Tape the nEw speedroll end to the blank spindle
ensuring the film goes underneath the blank spindle.
(Typically we would recommend you only use 2-3cm
of the tape provided on the new speedroll to attach
to the blank spindle.)
plEasE TaKE EXTra cauTion To EnsurE
ThE Film DoEs noT unwinD whilE insTallinG
ThE nEw spEEDroll as iT will compromisE
pErFormancE.
5. Replacing the Speedview Cover:
5.1 place the cover on top of the track.
5.2 Gently align and slot the sliders into their guides on
the left hand side as shown in fig.9.
5.3 close the cover on the left hand side until the track
and cover securely snap together.
instruction manual_aw_2.indd 3
Fig. 5.2
Fig. 5
Fig. 7
Fig. 8 Fig. 8.2
Fig. 9
5.4 repeat steps 2 and 3 on the right hand side of the
cover. (please take care to ensure the sliders and
guides line up correctly before snap closing the right
hand side halves together.)
5.5 Your speedview headset should now be secured.
5.6 Test your speedview system by simply pressing your
speedbutton once to ensure you are getting a full
sweep of speedroll across your visual area.
6. Installing your Transmitter:
6.1 secure the Transmitter Box to your bike/machine
using 2 cable ties ensuring the speedbutton cable
exits from the bottom of the Transmitter Box as
shown in fig.10
Fig. 10
E.G.
– motoX/Enduro motorcycles = Fork stanchion.
– mountainbike = headstock, stem or
Top/Downtube etc.
6.2 carefully route the speedbutton cable up and across
your handlebars using zip ties to secure the cable
in place.
6.3 secure the speedbutton to your handlebars using
the mounting clip. (Ensure the speedbutton is easily
located for Thumb reach activation. also ensure the
speedbutton mounting clip is secured tightly to avoid
the button rotating.)
Fig. 10.2
3
