Tennant V10 Bedienungshandbuch Seite 5

1 2
6
11
DRY CLEANING
OPERATING INSTRUCTION

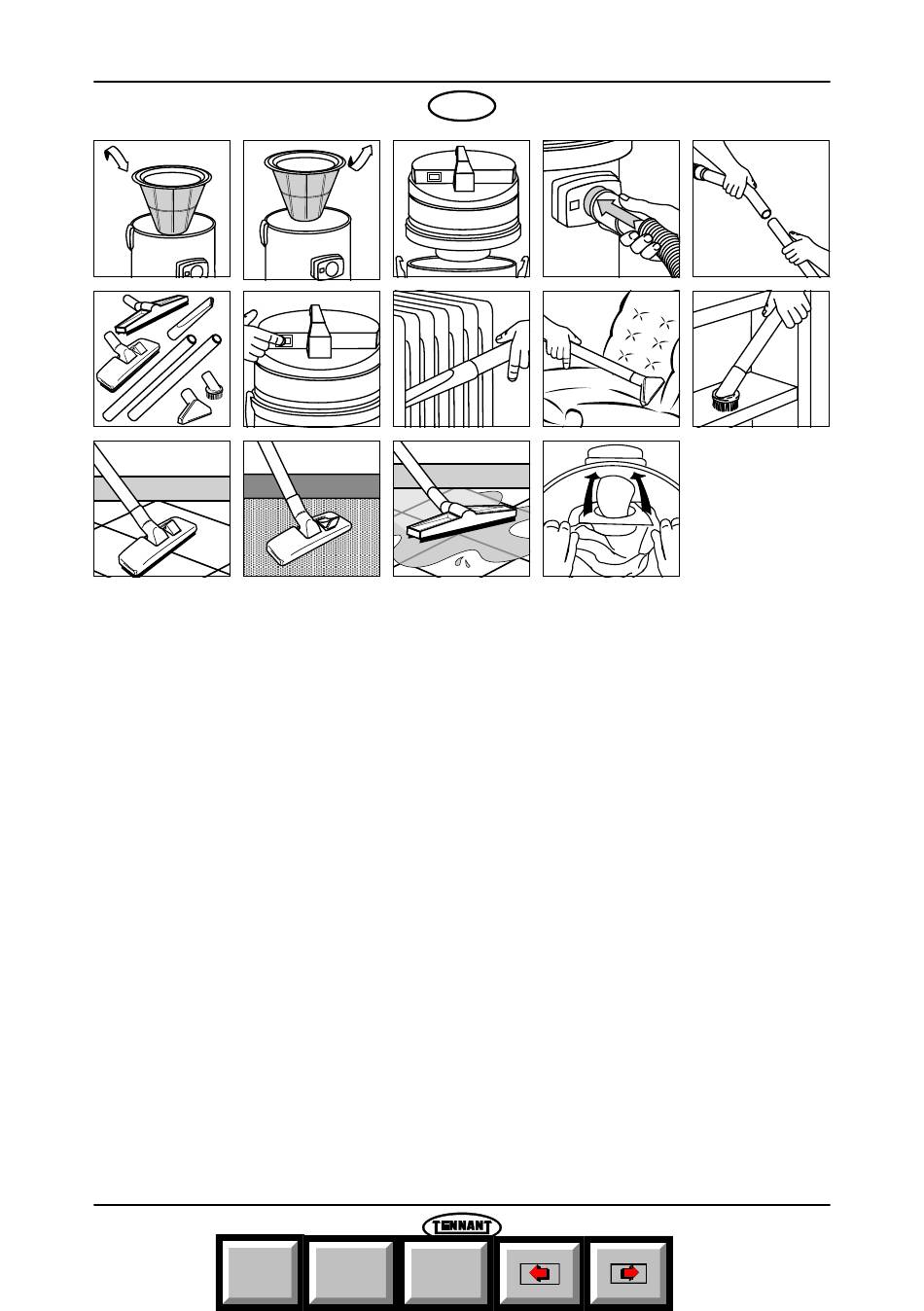

- Insert the cloth fi lter in the tank (Fig. 1).
- Assembly the head on tank and block it by
hooks (Fig. 3).
- Connect the fl exible hose into the inlet
(Fig. 4).
- Connect the wand and the extensions to other
side of fl exible hose (Fig. 5).
- Select the most suitable accessory (Fig. 6).
- Connect the plug to power socket then switch
on the equipment (Fig. 7).
- Example of use of fl at lance (Fig. 8).
- Example of use of small tool (Fig. 9).
- Example of use of brush on the fl oor (Fig. 11).
- Example of use of brush on the carpet
(Fig. 12).
- Example of use of round brush (Fig. 10).
- If a paper bag is provided, insert it in the tank on
the defl ector (Fig. 14).
Home
GB
3
7
12
LIQUID SUCTION
OPERATING INSTRUCTION
- Remove the cloth fi lter bag (Fig. 2).
- Assembly the head on tank and block it by
- Connect the fl exible hose to the inlet
- Connect the extension to other side of fl exible
- Connect the wet tool (Fig. 6).
- Connect the plug to power socket then switch
- Example of use of wet tool (Fig. 13).
Find...
Go To..
4
8 9
13 14
hooks (Fig. 3).
(Fig. 4).
hose (Fig. 5)
on the equipment (Fig.7)
Tennant V10-V12
5
10
5
