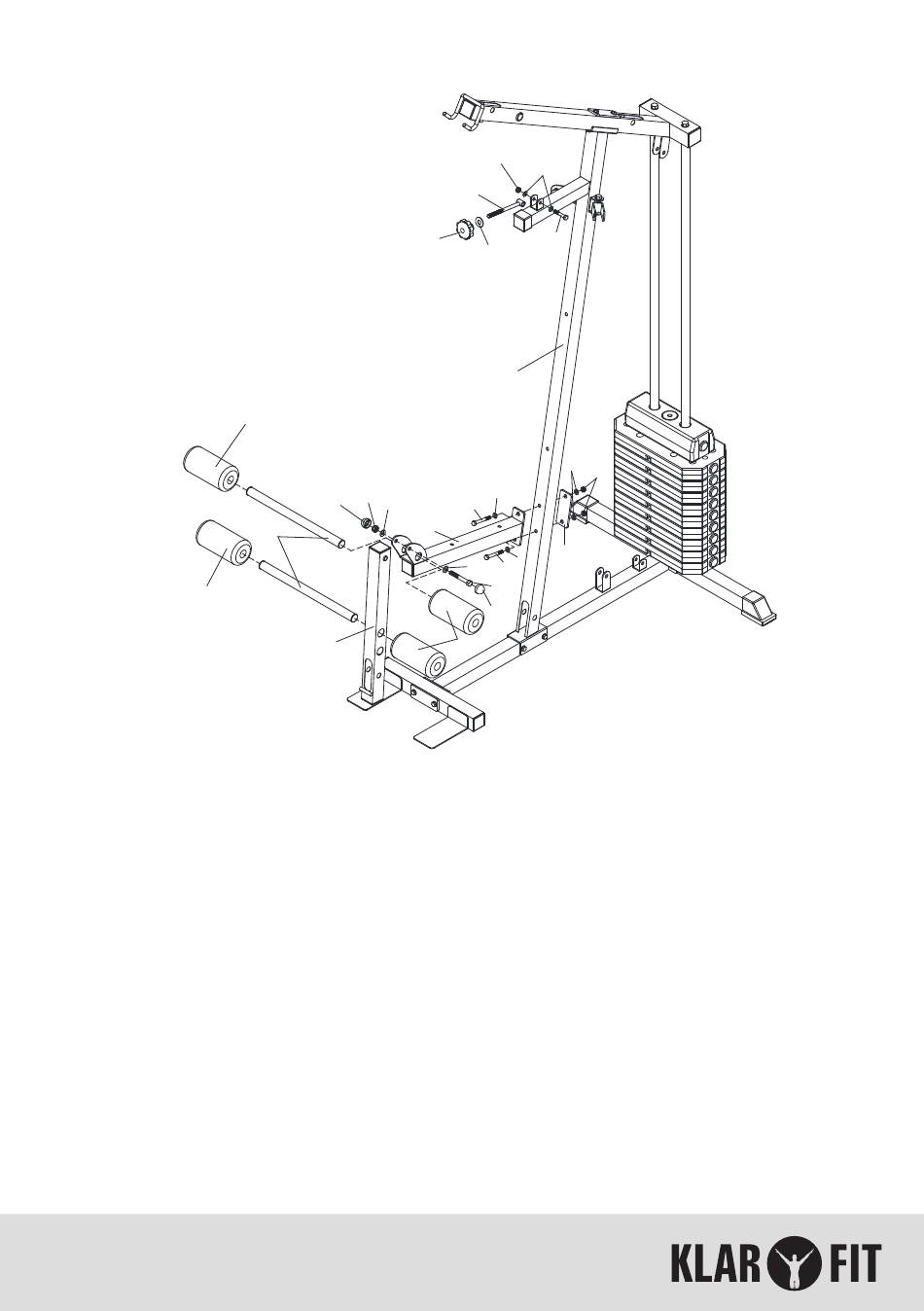

Step 4
1.
Attach the seat support tube (12) and the plate (23) to the main support tube (4),
using two M8x65mm hex bolts (18), four M8 washers (19) and two M8 nylon nuts (20).
2.
Attach the leg extension tube (11) to the seat support tube (12), using one M10x70mm
hex bolt (38), two M10 washers (35), one M10 nylon nut (58) and two bolt caps (M10)
(52).
3.
Insert two foam tubes (56) into the leg extension tube (11) and the seat support tube
(12), then slide four leg foam rollers (55) onto two foam tubes (56).
4.
Attach the tobacco-pipe (53) to the main support tube (4), using one M8x40mm hex
bolt (50), two M8 washers (19) and one M8 nylon nut (20).
5.
Slide one washer (ø 30x10) (72) and one plum blossom nut (49) onto the tobacco-pipe
(53).
55
58
52
35
56
11
20
19
53
49
50
72
4
19 20
19
18
12
23
19
35
18
38
52
55
23
