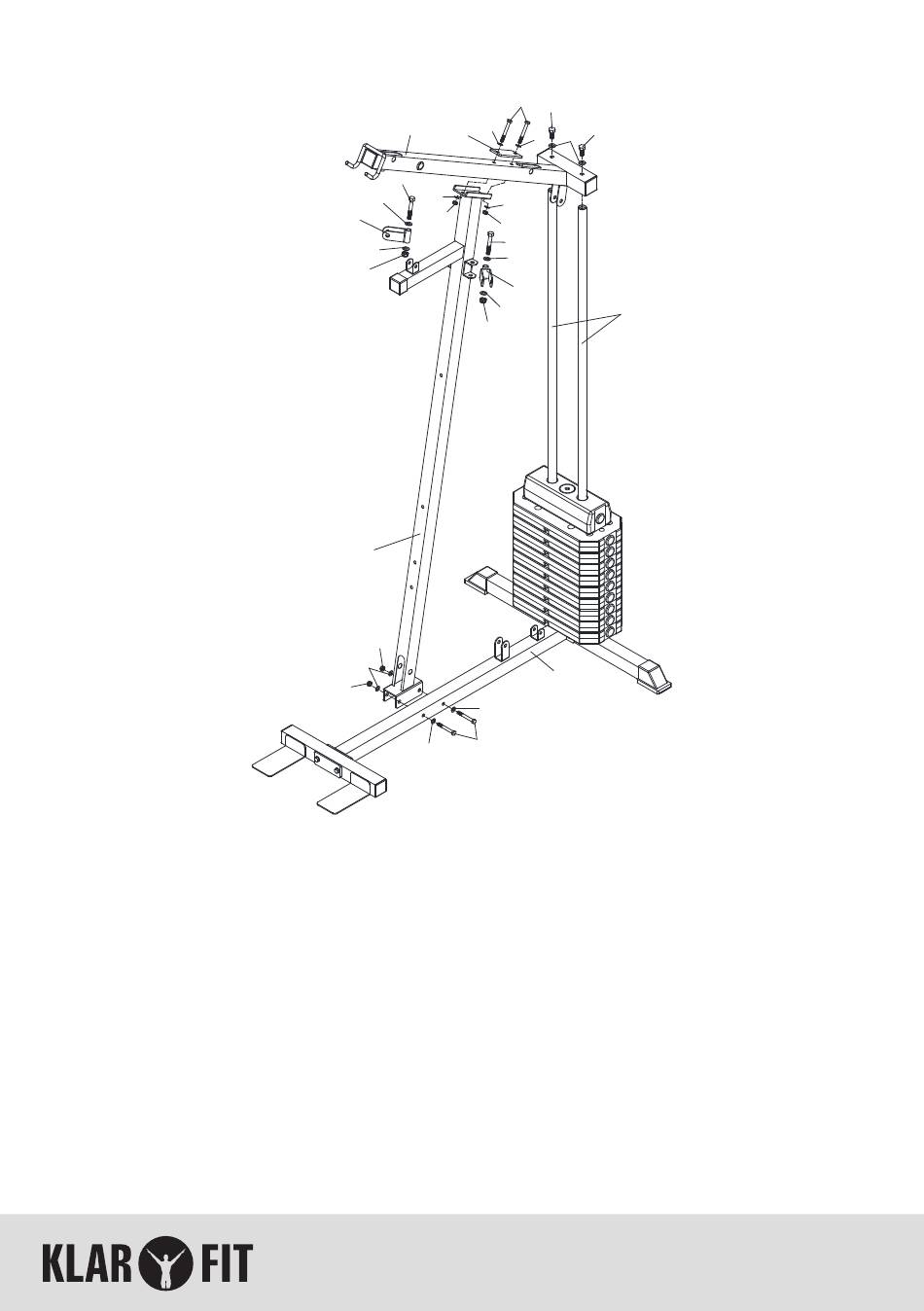

Step 3
1.
Attach the main support tube (4) to the main base tube (1), using two M8x65mm hex
bolts (18), four M8 washers (19) and two m8 nylon nuts (20).
2.
Remove two M10x25mm hex bolts (34) and two M10 washers (35) from two weight
guide tube (60).
3.
Attach the upper cross beam (8) to the weight guide tube (60), using two M10x25mm
hex bolts (34) and two M10 washers (35).
4.
Attach the upper cross beam (8) and the plate (23) to the main support tube (4), using
two M8x65mm hex bolts (18), four M8 washers (19) and two M8 nylon nuts (20).
5.
Attach two pulley brackets (26) to the main support tube (4), using two M10x65mm
hex bolts (24), four M10 washers (35) and two M10 nylon nuts (58).
22
19
8
23
24
19
35
19
20
26
20
24
35
35
58
35
58
4
20
19
20
19
18
19
18
34
35 34
19
26
60
1
