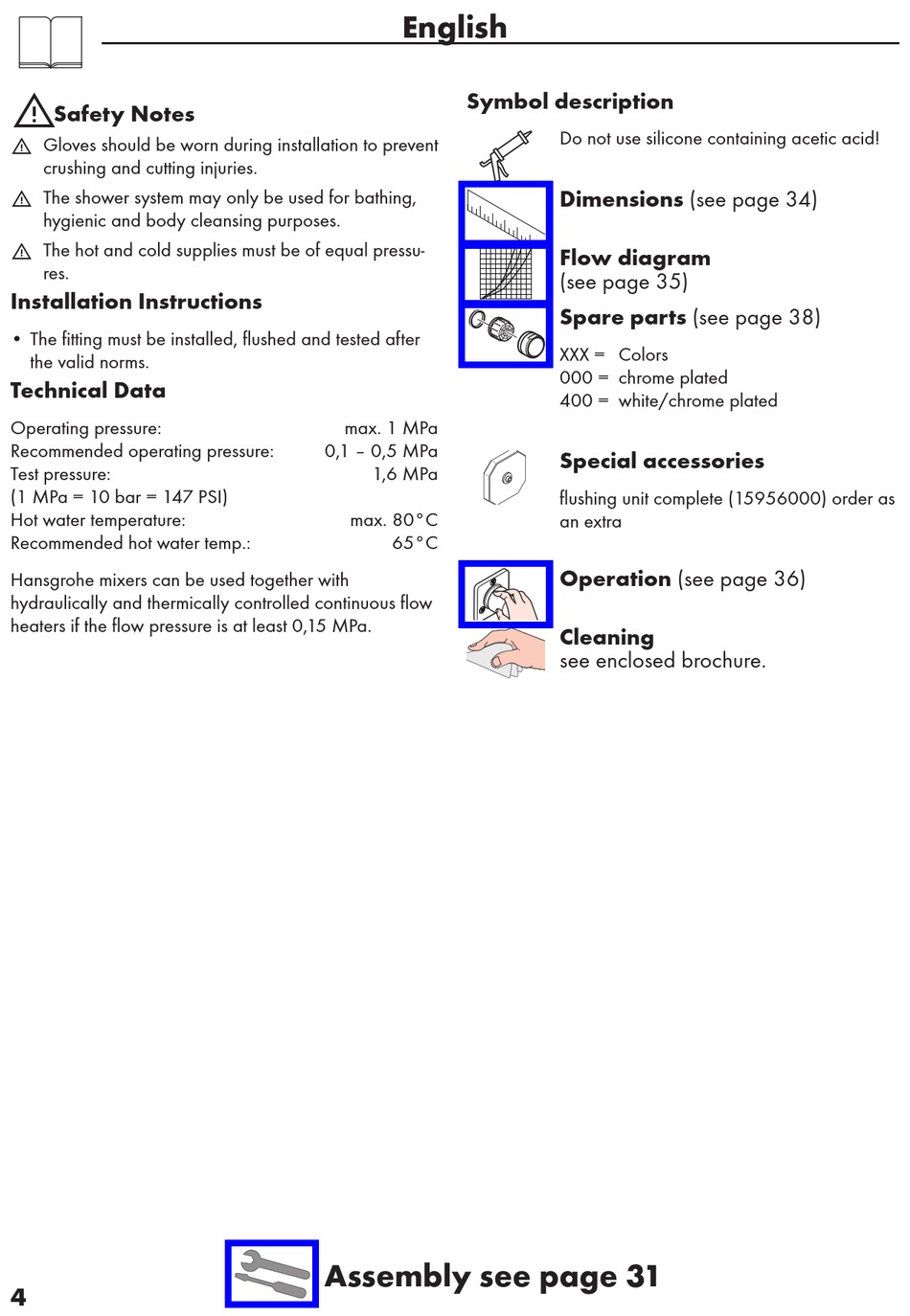

Installation Instructions; Flow Diagram; En Instructions For Use / Assembly Instructions - HANSGROHE iControl series Gebrauchsanleitung, Montageanleitung


Safety Notes
Gloves should be worn during installation to prevent

crushing and cutting injuries.
The shower system may only be used for bathing,

hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pressu-

res.

Installation Instructions

• The fitting must be installed, flushed and tested after
the valid norms.
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Hansgrohe mixers can be used together with
hydraulically and thermically controlled continuous flow
heaters if the flow pressure is at least 0,15 MPa.

English
Symbol description
max. 1 MPa
0,1 – 0,5 MPa
1,6 MPa
max. 80°C
65°C
Assembly see page 31
Do not use silicone containing acetic acid!
Dimensions (see page 34)

Flow diagram

(see page 35)
Spare parts (see page 38)
XXX = Colors
000 = chrome plated
400 = white/chrome plated
Special accessories
flushing unit complete (15956000) order as
an extra
Operation (see page 36)
Cleaning
see enclosed brochure.
