MMX 300 – Headset
6

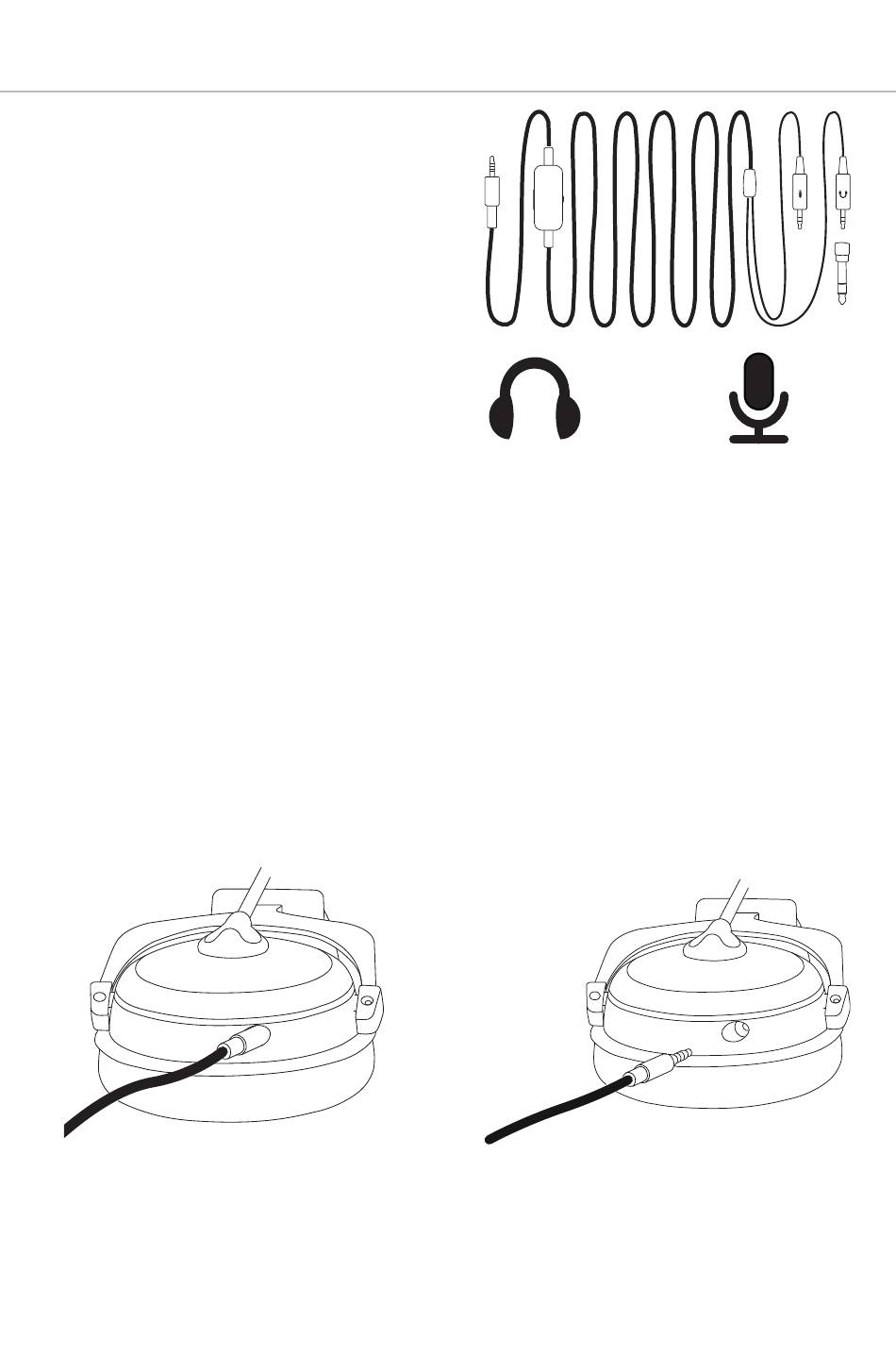

Headset cable for gaming sessions
with two 3-pole jack connectors to
connect to a headphone output and
microphone input of a PC, notebook
or console, which have a mini
(3.5 mm) combination jack. Due to
the screwed-on adapter the head-
phone can also be connected to
devices with a 1/4" jack.
Headphone Microphone
Note:
A common source of error is that the 5-pole jack connector is not properly
connected to the headset. If the headset does not work, please check first
whether the cable is completely plugged into the headphone housing of the
MMX 300. Please refer also to fig. 1.
There is a locking protection on the 5-pole jack connector of the connecting
cable, which has to lock in place. When a malfunction occurs, simply pull out
the plug again and push it firmly into the socket with a slight rotary motion so
that all 5 poles of the connector have contact. Please refer also to fig. 2.
Fig. 1 Fig. 2
