Circulation gap

For good air circulation, leave a 1 cm gap under doors (or a transfer grille),
2 cm in the kitchen if there is only one door .

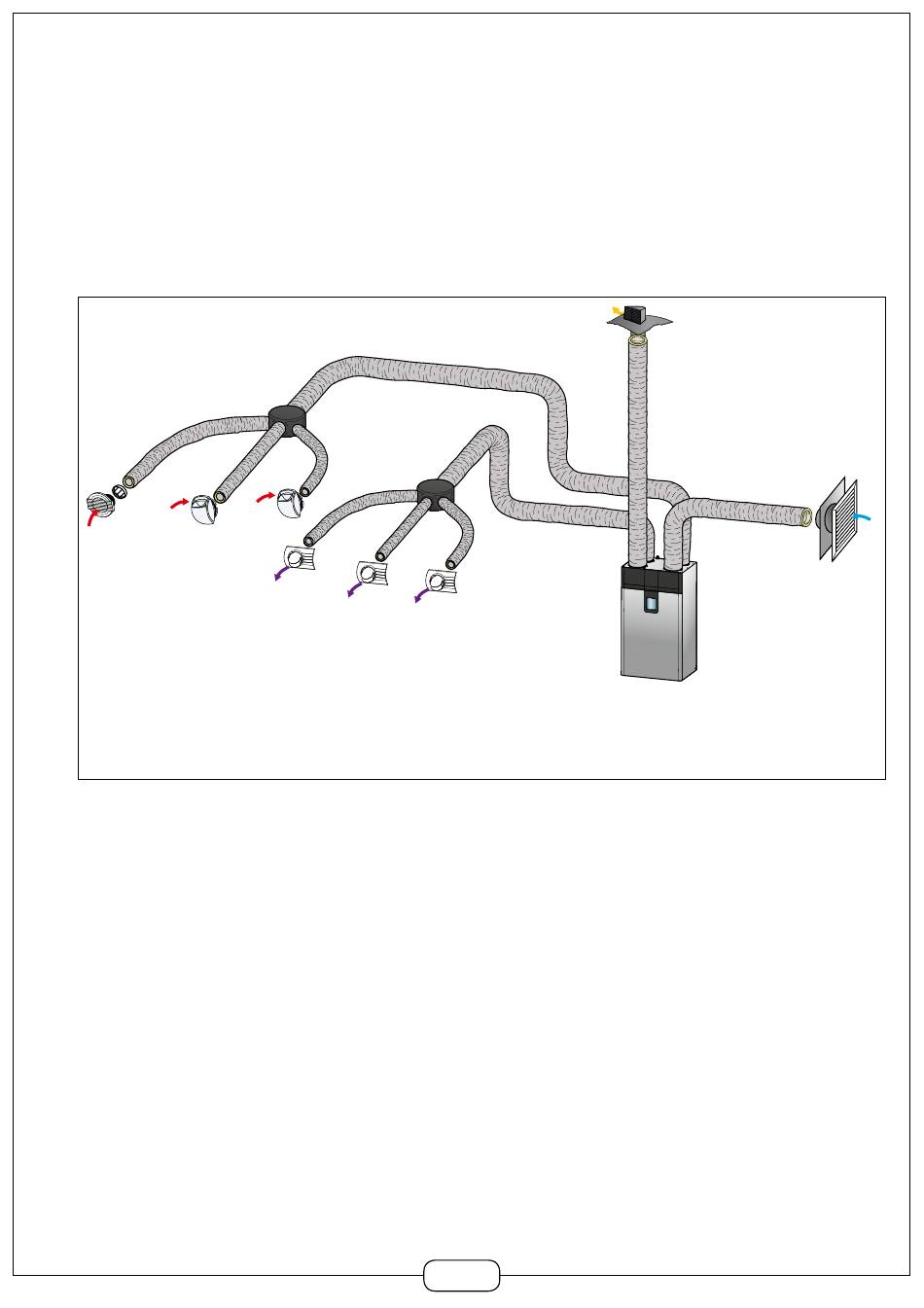

Connection to the unit

Ø 160 ducts
Exhaust
grilles
• Supply grilles: BIO design D80
• Roof cowl: STS 160 (11030108)
• Grille AWA 251 300x300 (plenum 11053757+ grille 11052039)
Supply grilles
37
Outlet on the roof
AWA 251
Grille
