Phocos CIS-CU Bedienungsanleitung Seite 30

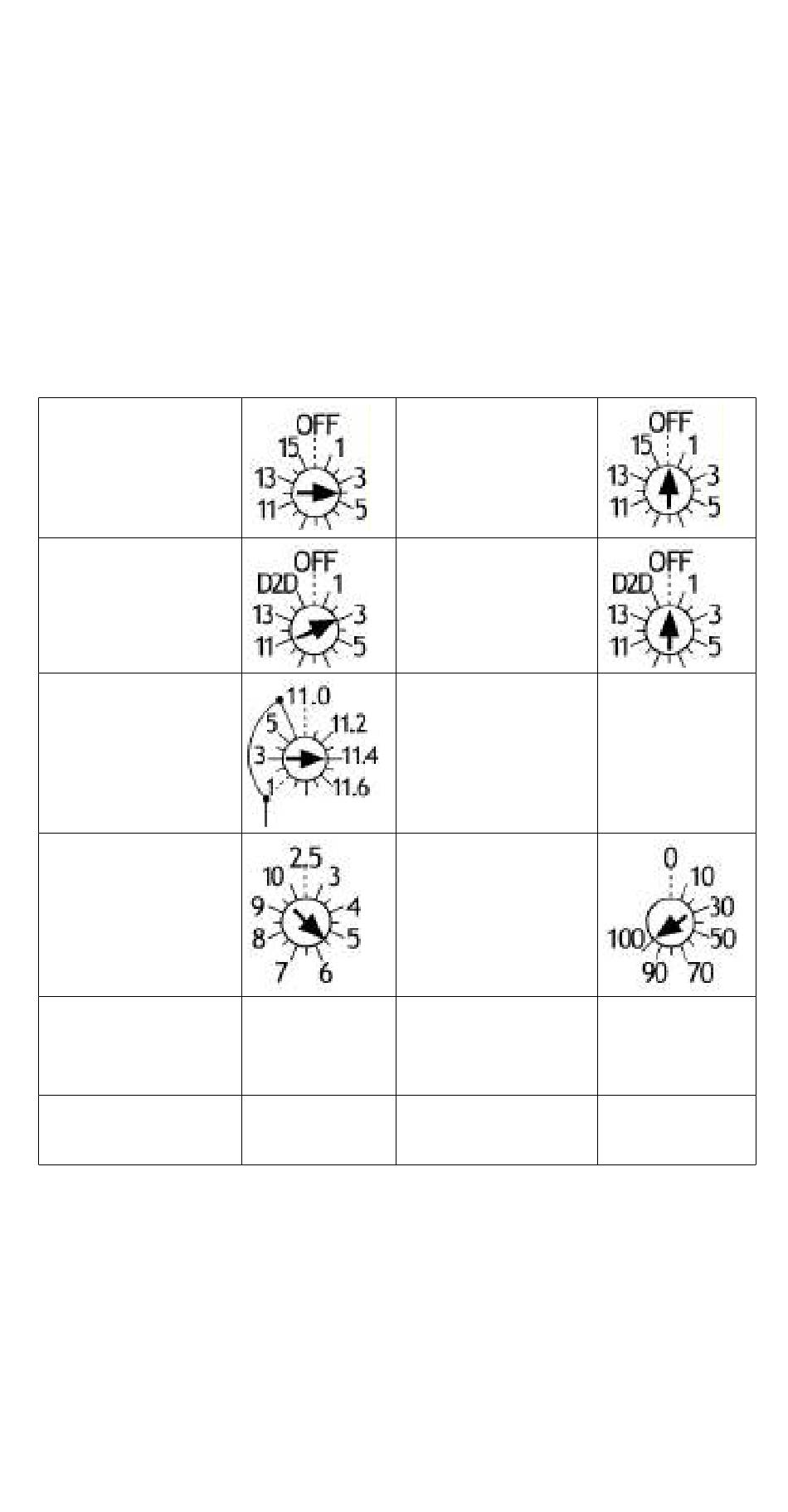

Night and day detection voltage (solar open circuit voltage):
Evening (h)
Load
(Rotary Switch 5)
Morning (h)
Load
(Rotary Switch 6)
SOC LVD (V)
Load
(Rotary Switch 7)
Night Detection (V)
Load and Dimming
(Rotary Switch 12)
Timer Reference
Load
(Toggle Switch 1)
Battery Type
(Toggle Switch 3)
CIS05/10/20 (Single Load, Dimming)

Dual timer (load on for 4 hours after dusk, 3 hours before dawn), LVD: 11.4
V, dimming (evening h 2, morning h 1, dimming LVD 11.9 V), sealed
battery, dimming value: 60%, night detection: 5.5 V.
NOTE: Dimming will also be activated if battery falls below 11.9 V.
Down
Down
28
Evening (h)
Dimming
(Rotary Switch 8)
Morning (h)
Dimming
(Rotary Switch 9)
SOC LVD (V)
Dimming
(Rotary Switch 10)
Dimming (%)
(Rotary Switch 11)
Timer Reference
Dimming
(Toggle Switch 2)
Don't Care
Don't Care
