Load Control Function (Dual Load Controller)
Timer Reference
Evening (h)
Morning (h)
SOC LVD (V)
1) Voltage controlled (LVD):
Disconnect at a fixed voltage between 11.0/22.0V and 11.9/23.8V (step
0.1V).
2) State of charge (SOC) controlled:
Disconnect at 11.00 V/22.00 V to 11.70 V/23.40 V (SOC1), 11.12 V/22.24
V to 11.76 V/23.52 V (SOC2), 11.25 V/22.50 V to 11.83 V/23.63 V (SOC3),
11.38 V/22.72 V to 11.89 V/23.78 V (SOC4), 11.51 V/23.02 V to 11.96
V/23.92 V (SOC5), 11.64 V/23.28 V to 12.02 V/24.04V (SOC6).

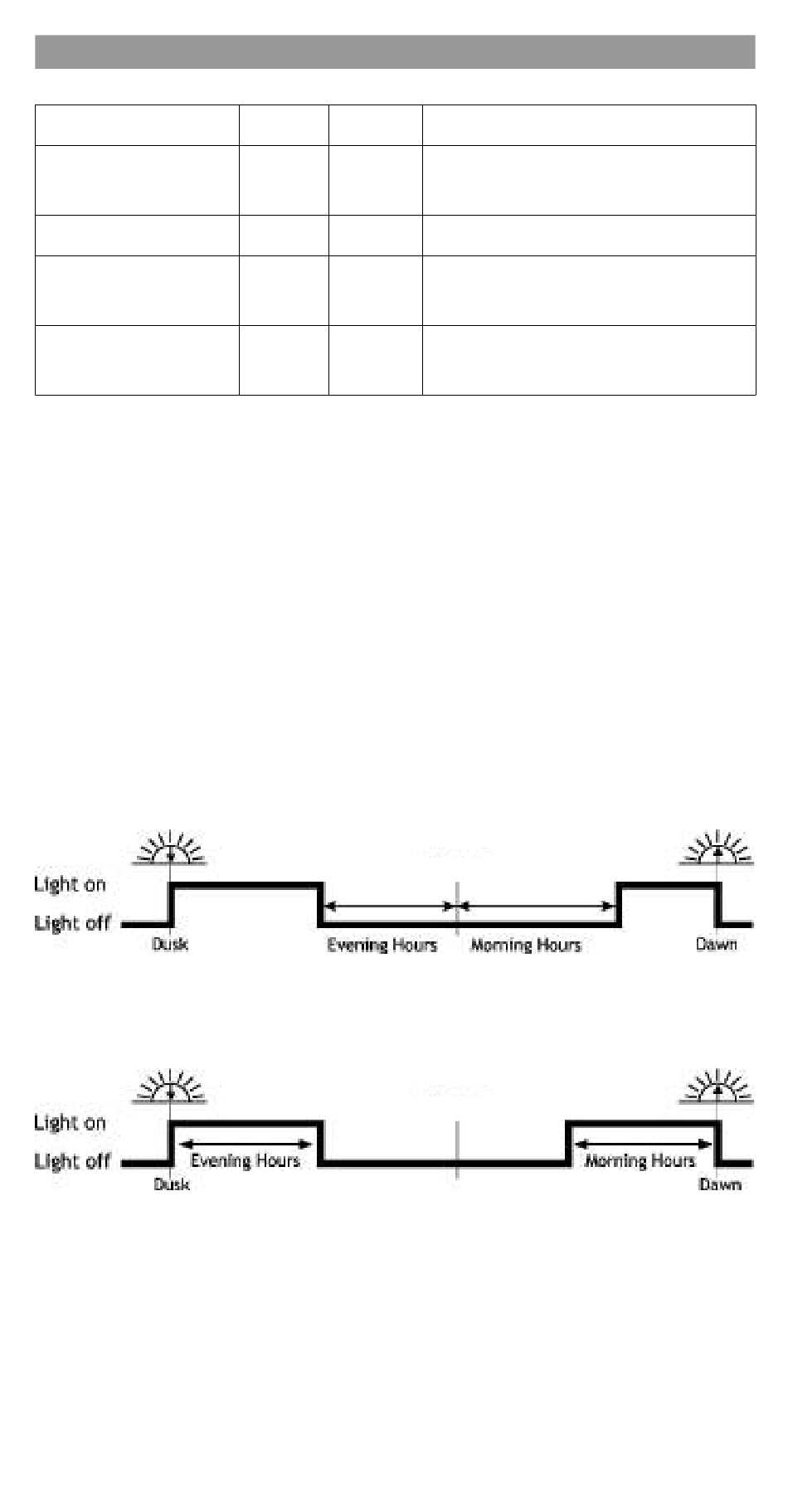

Evening/Morning modes

Hours based on middle of night (toggle switch up).
Hours based on Dusk & Dawn (toggle switch down).
Load 1 Load 2
1 2
5 8
6 9
7 10
Middle of night
Middle of night
20
Hours based on middle of
night or dusk and dawn
1-15 hours
1-14 hours and D2D (Dusk to
Dawn) mode
State of charge (SOC) and
voltage controlled (LVD)
