Phocos CIS-CU Bedienungsanleitung Seite 29

Evening (h)
Load 1
(Rotary Switch 5)
Morning (h)
Load 1
(Rotary Switch 6)
SOC LVD (V)
Load 1
(Rotary Switch 7)
Night Detection (V)
Load 1 and Load 2
(Rotary Switch 12)
Timer Reference
Load 1
(Toggle Switch 1)
Battery Type
(Toggle Switch 3)
CIS05/10/20 (Single Load, No Dimming)


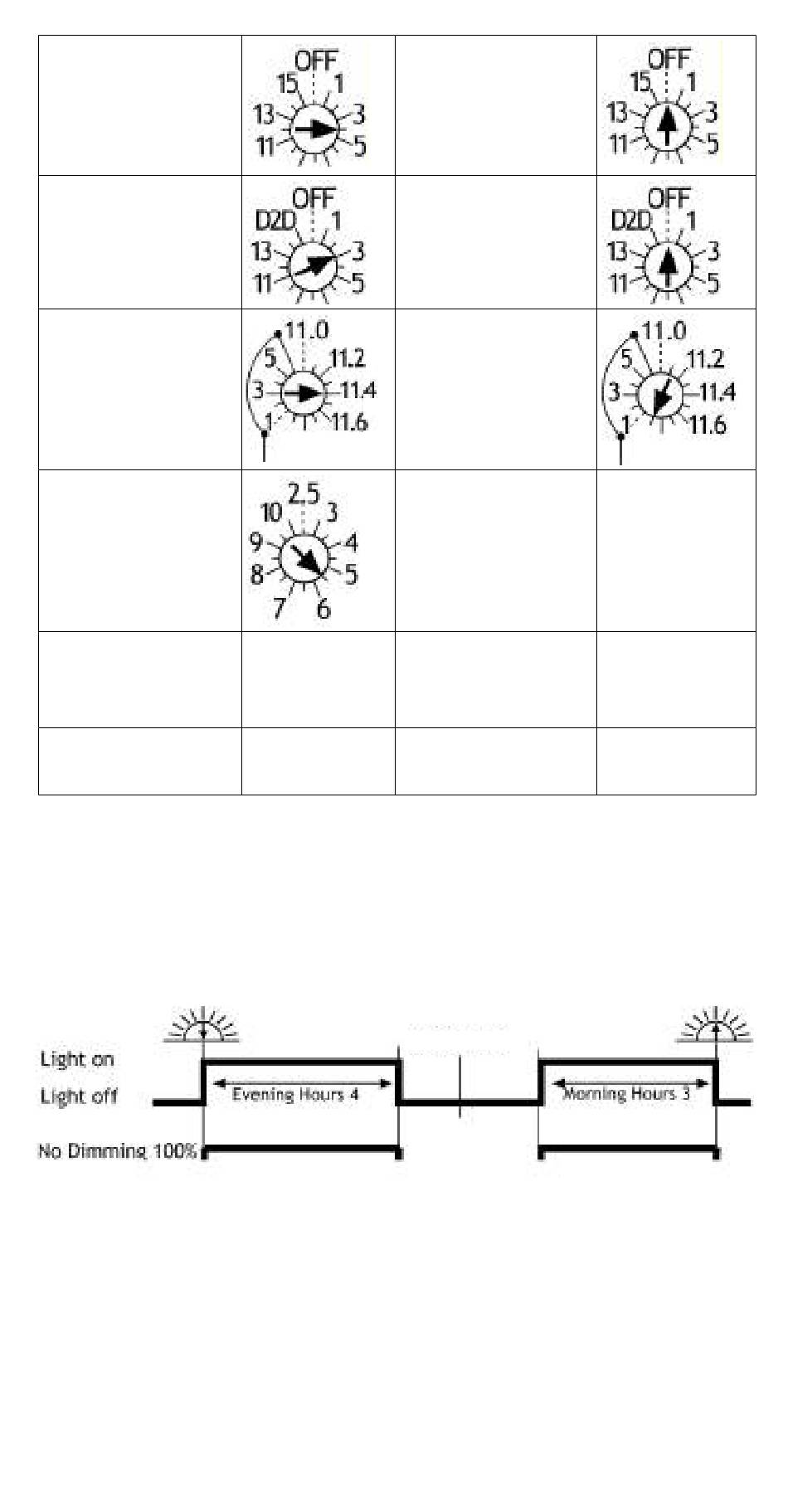

1. Dual timer (load on for 4 hours after dusk, 3 hours before dawn), LVD: 11.4
V, no dimming, sealed battery, night detect: 5.5 V.
Load control function:
UP
UP
27
Evening (h)
Load 2
(Rotary Switch 8)
Morning (h)
Load 2
(Rotary Switch 9)
SOC LVD (V)
Load 2
(Rotary Switch 10)
Dimming (%)
(Rotary Switch 11)
Timer Reference
Load 2
(Toggle Switch 2)
Middle of night
Don't Care
Don't Care
