5

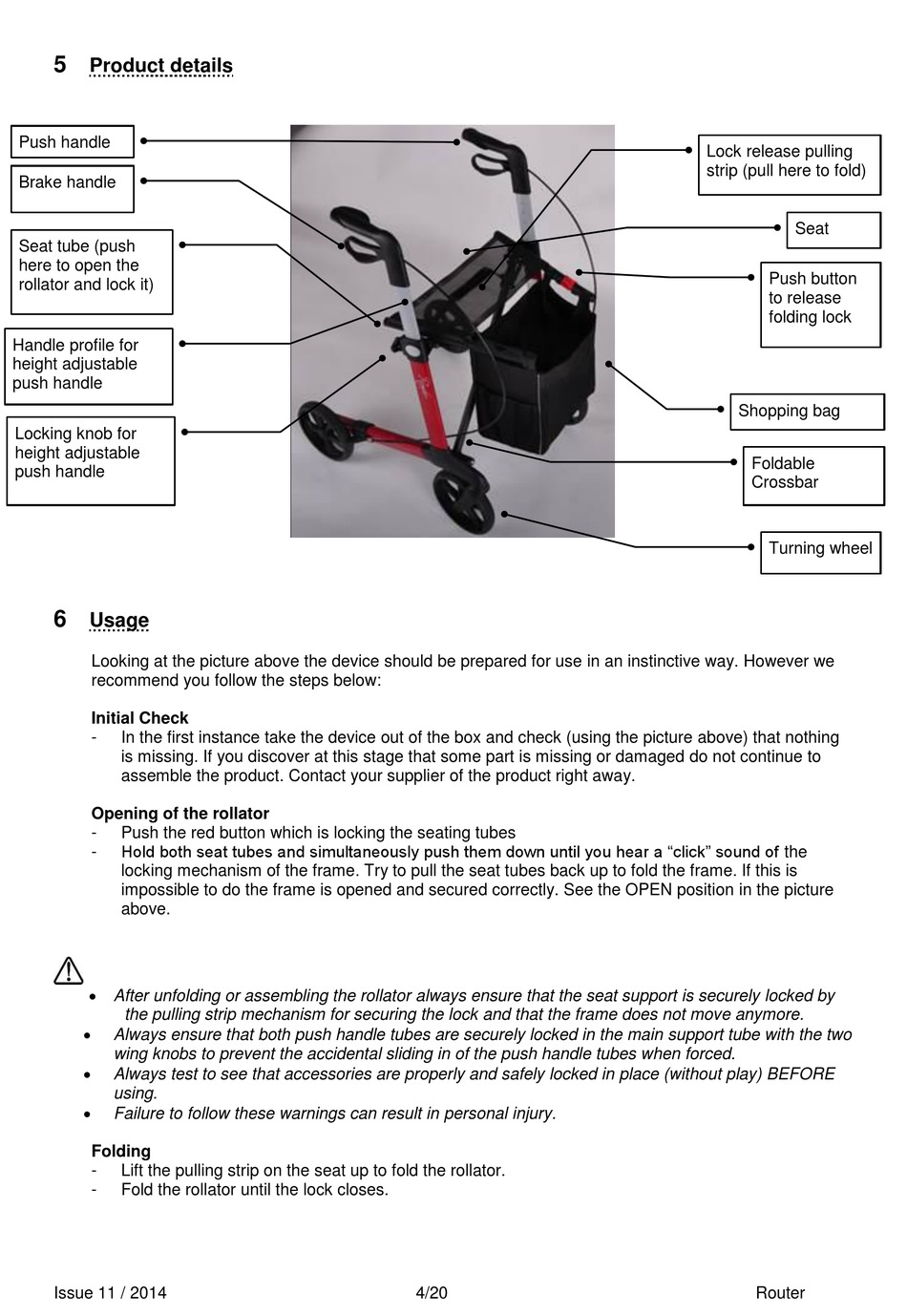

Product details

Push handle
Brake handle
Seat tube (push
here to open the
rollator and lock it)
Handle profile for
height adjustable
push handle
Locking knob for
height adjustable
push handle
6
Usage
Looking at the picture above the device should be prepared for use in an instinctive way. However we
recommend you follow the steps below:
Initial Check
- In the first instance take the device out of the box and check (using the picture above) that nothing
is missing. If you discover at this stage that some part is missing or damaged do not continue to
assemble the product. Contact your supplier of the product right away.
Opening of the rollator
- Push the red button which is locking the seating tubes
Hold both seat tubes and simultaneously push them down until you hear a "click" sound of the
-
locking mechanism of the frame. Try to pull the seat tubes back up to fold the frame. If this is
impossible to do the frame is opened and secured correctly. See the OPEN position in the picture
above.
 After unfolding or assembling the rollator always ensure that the seat support is securely locked by
the pulling strip mechanism for securing the lock and that the frame does not move anymore.

Always ensure that both push handle tubes are securely locked in the main support tube with the two
wing knobs to prevent the accidental sliding in of the push handle tubes when forced.

Always test to see that accessories are properly and safely locked in place (without play) BEFORE
using.

Failure to follow these warnings can result in personal injury.
Folding
- Lift the pulling strip on the seat up to fold the rollator.
- Fold the rollator until the lock closes.
Issue 11 / 2014 4/20
Lock release pulling
strip (pull here to fold)
Seat
Push button
to release
folding lock
Shopping bag
Foldable
Crossbar
Turning wheel
