Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The shower system may only be used for bathing,
hygienic and body cleaning purposes.
The hot and cold supplies must be of equal pres-
sures.
71834000
Only dishwashers and washing machines certified
with the DVGW emblem may be connected to the
appliance connection valve without an additional
fuse. If no consumer is connected to the appliance
connection valve, it must be plugged.

Installation Instructions

• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be oberserved.
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
The product is exclusively designed for drinking water!
4
English
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
max. 80°C
65°C
max. 70°C / 4 min
Assembly see page 31

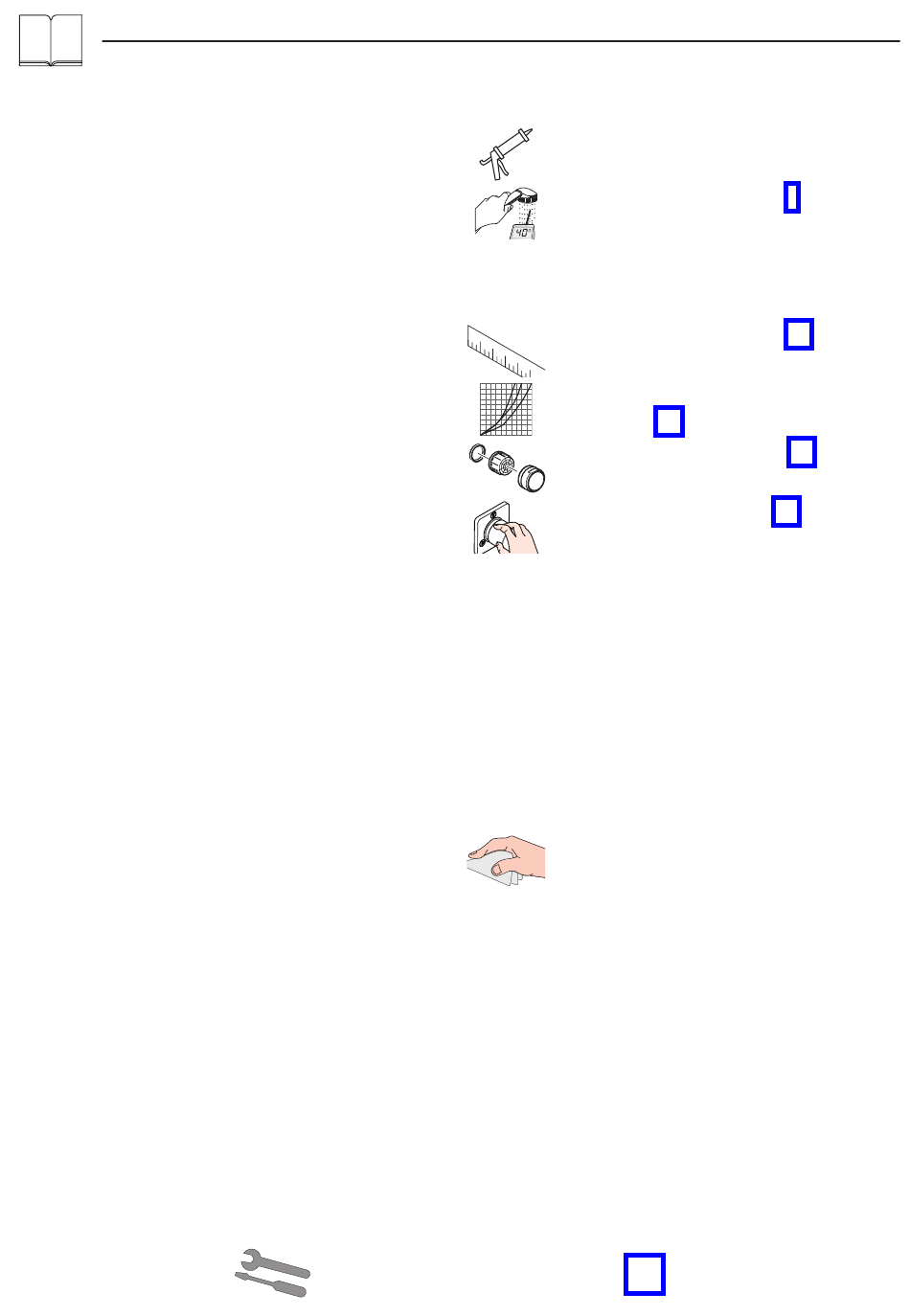

Symbol description
Do not use silicone containing acetic acid!
Adjustment (see page 5)
To adjust the hot water limiter. Using a hot
water limiter in combination with a continu-
ous flow water heater is not recommended.
Dimensions (see page 38)

Flow diagram

(see page 38)
Spare parts (see page 36)
Operation (see page 34)
Hansgrohe recommends not to use as drink-
ing water the first half liter of water drawn
in the morning or after a prolonged period
of non-use.
After periods of prolonged non-use, but at
least every third day, the fittings must be
opened with the handle in hot and cold
position to prevent stagnation in the connect-
ing lines. Let the water run until the water
temperature is constant.
Cleaning
see enclosed brochure.
