Rotational laser

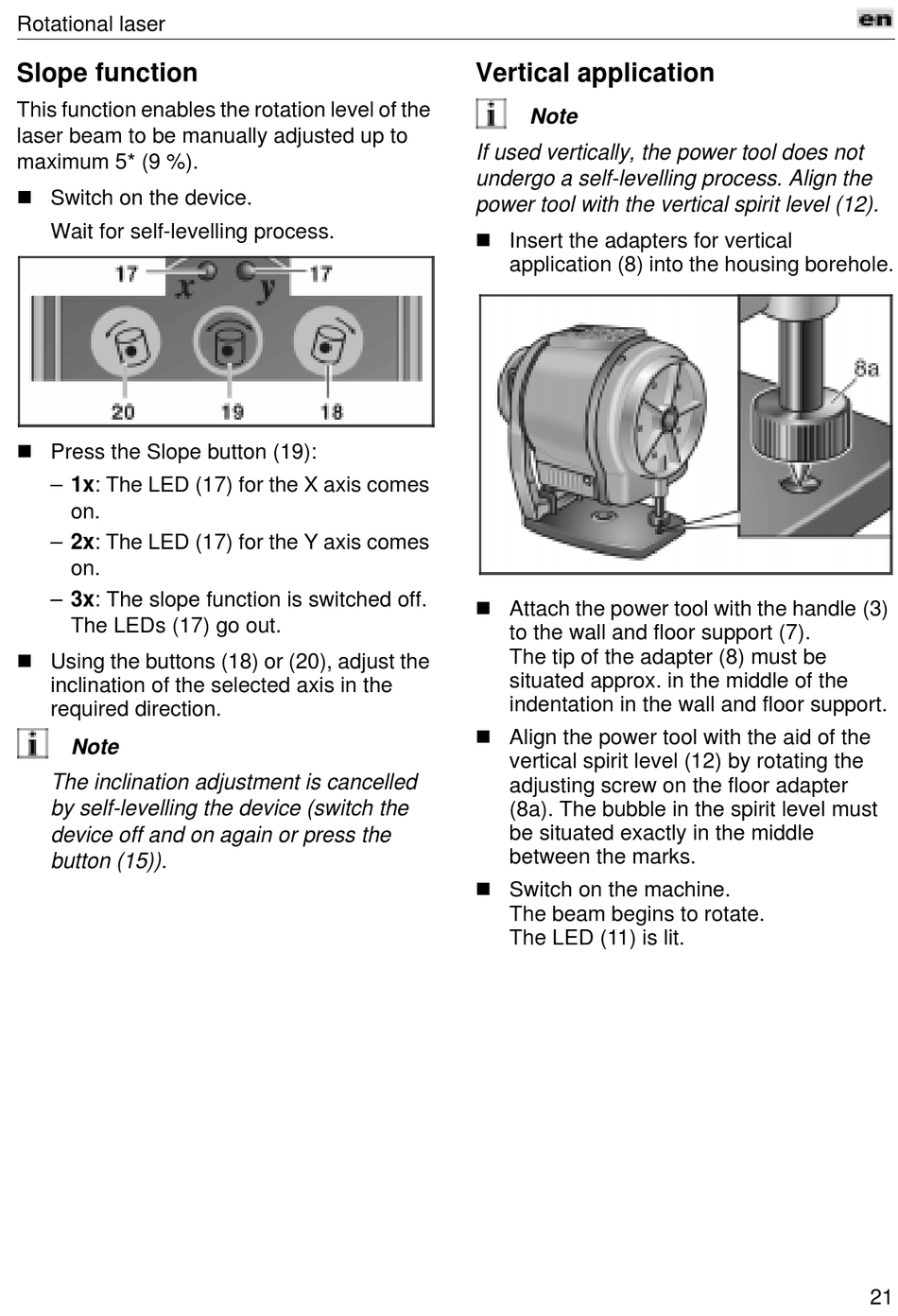

Slope function
This function enables the rotation level of the
laser beam to be manually adjusted up to
maximum 5* (9 %).
n Switch on the device.
Wait for self-levelling process.
n Press the Slope button (19):
– 1x: The LED (17) for the X axis comes
on.
– 2x: The LED (17) for the Y axis comes
on.
– 3x: The slope function is switched off.
The LEDs (17) go out.
n Using the buttons (18) or (20), adjust the
inclination of the selected axis in the
required direction.
Note
The inclination adjustment is cancelled
by self-levelling the device (switch the
device off and on again or press the
button (15)).
Vertical application
Note
If used vertically, the power tool does not
undergo a self-levelling process. Align the
power tool with the vertical spirit level (12).
n Insert the adapters for vertical
application (8) into the housing borehole.
n Attach the power tool with the handle (3)
to the wall and floor support (7).
The tip of the adapter (8) must be
situated approx. in the middle of the
indentation in the wall and floor support.
n Align the power tool with the aid of the
vertical spirit level (12) by rotating the
adjusting screw on the floor adapter
(8a). The bubble in the spirit level must
be situated exactly in the middle
between the marks.
n Switch on the machine.
The beam begins to rotate.
The LED (11) is lit.
21
