Overview

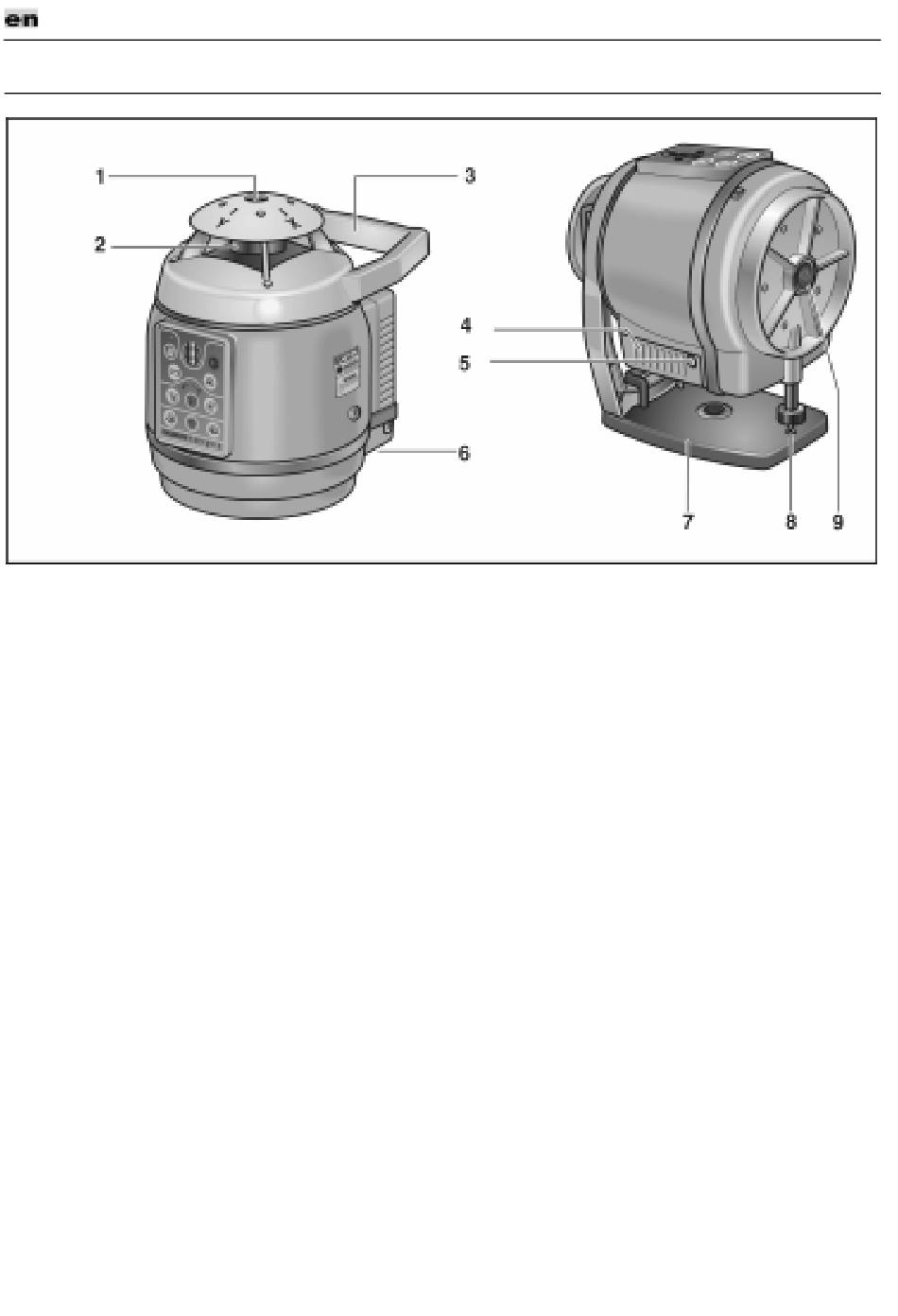

1 Laser beam window
Pencil beam at right angles to the
rotating laser beam (perpendicular
beam)
2 Rotating head
Discharge window for rotating laser
beam
3 Handle
Also stand for vertical application
4 Battery pack
5 Socket for connecting the battery
charger
6 Charging process LED
16
7 Wall and floor support
for vertical application of the ALR
8 Adapter for vertical application
9 Tripod thread
Attaches the power tool to a tripod
(optional)
Rotational laser
