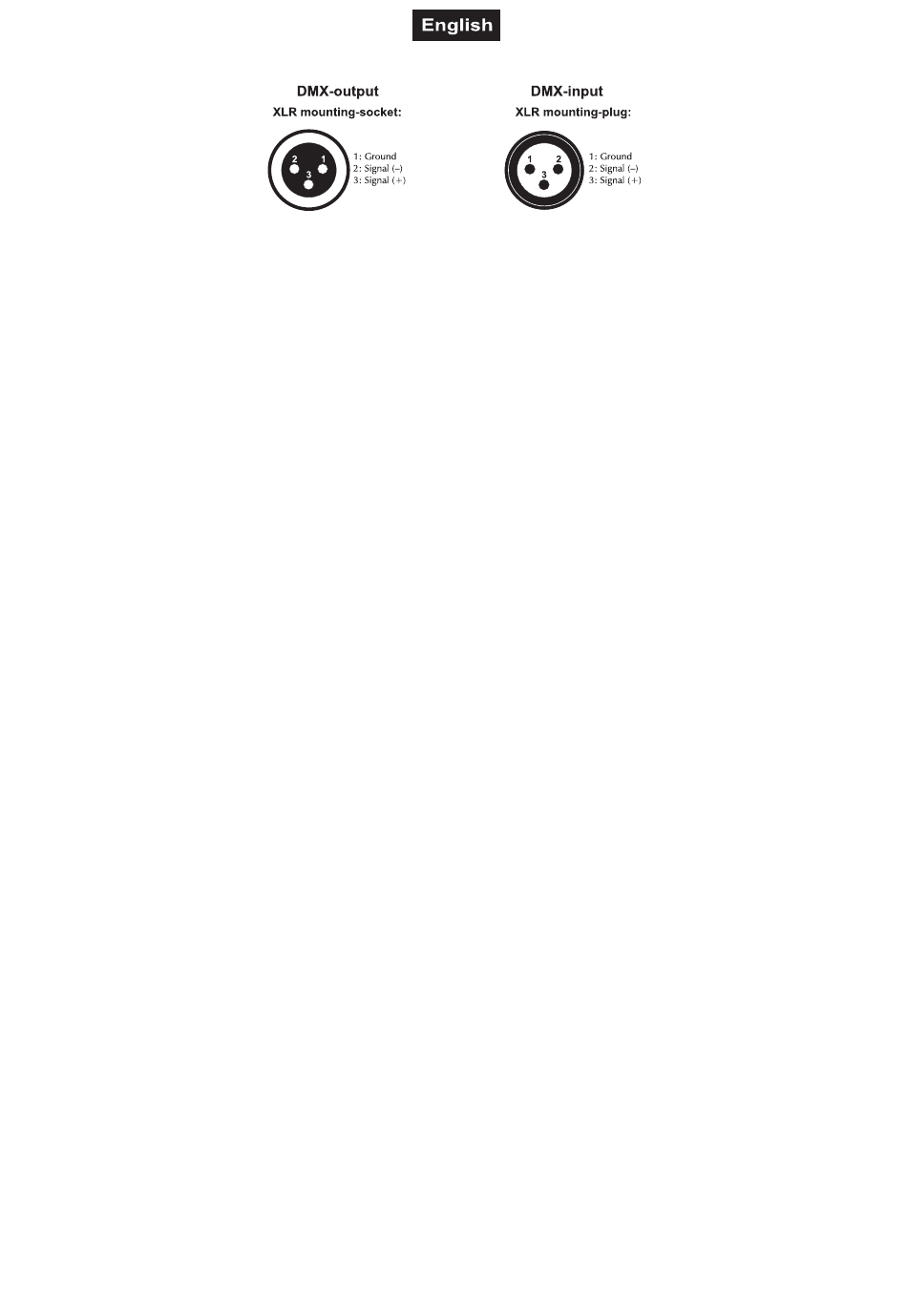

XLR connection:

Connection to the mains

1 Connect the device via the mains cable to a grounded mains socket. Thus the unit is switched on.
2 To switch off the unit, disconnect the power plug.
3 Do not connect the unit to the mains voltage via a dimmer. For a more convenient operation, use a mains
outlet which is switchable.
Please make sure that open contacts are closed with caps in order to avoid humidity and dirt in the
device

Power supply of further devices

The jack POWER OUT allows for power supply of further devices. To interconnect several devices, connect
the jack POWER OUT to the input POWER IN of the next unit until all units are connected. Matching power
cables with IEC plugs are available as accessories. In this manner, up to 8 devices can be linked.

OPERATION

After you connected the spot to the mains, starts running.
The LED display lights up and you can choose the desired mode via the buttons MODE, ENTER, UP and
DOWN.
Attention: After every 8 the fixtures must have a renewed connection with the power mains.
Please make sure that open contacts are closed with the enclosed caps in order to avoid humidity
and dirt in the device.
The device has two operating modes. It can be operated in Stand Alone or in DMX-controlled mode.
Stand Alone-Mode
In the Stand Alone mode, can be used without controller.
Disconnect the LED IP PAR 12x3W TCL from the controller.
Control Board
The Control Board offers several features: you can simply set the starting address or run the internal
programs.
Browse through the main menu by pressing MODE. You can change the selection by pressing Up or Down.
Confirm every selection by pressing the Enter-button. The functions provided are described in the following
sections. You can leave every mode by pressing the MODE-button.
18/24 00123794, Version 1.2
