O

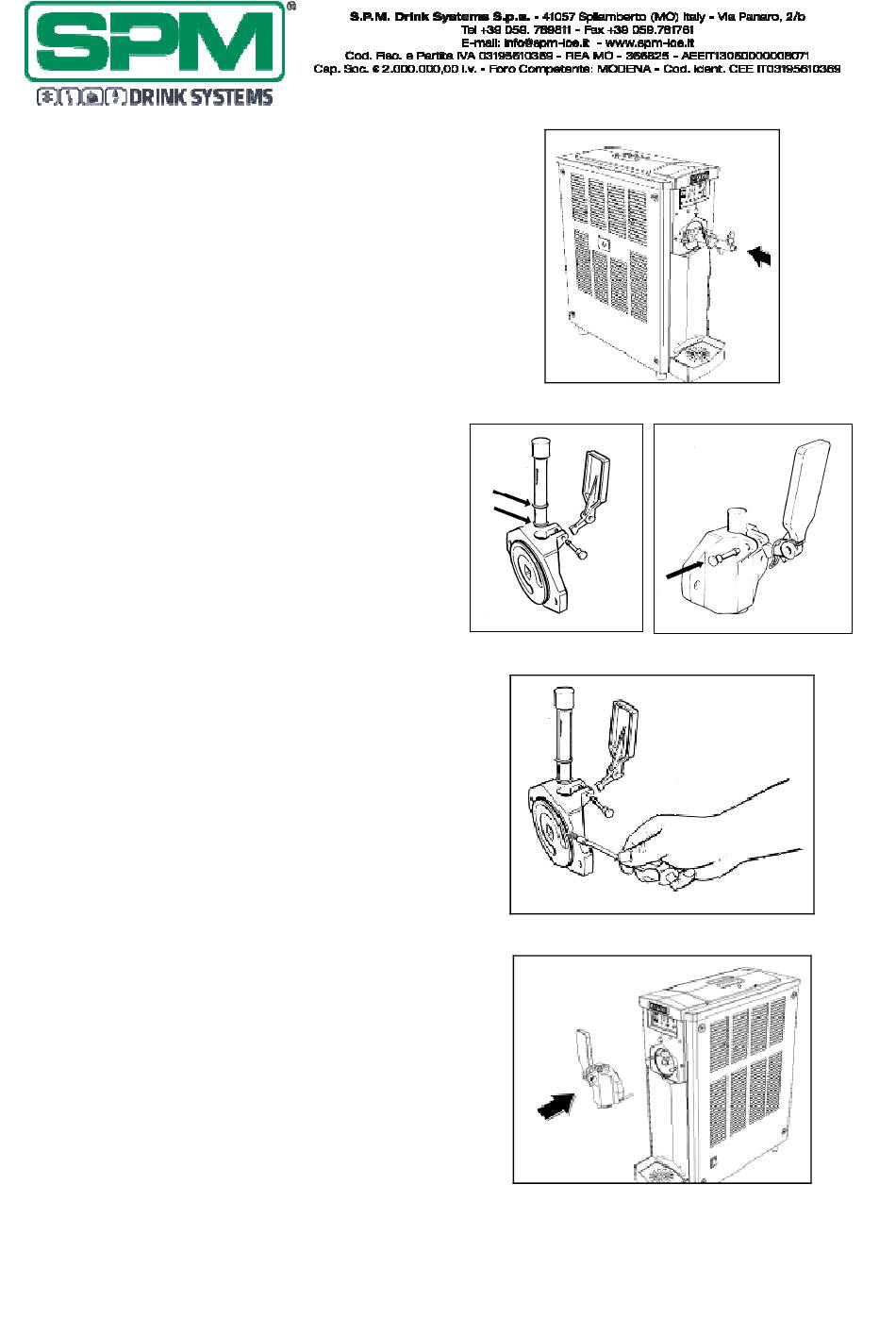

- nce assembled, insert the beater carefully
into the cylinder making sure that the rear
shank fits perfectly in its seat within the cylinder
(fig. 16).
A
- fter installing the piston seals and
lubricating them as necessary (fig. 17), insert
the piston into its housing in the flange, mount
the dispensing lever together with its spring and
connect them with the fixing pin (fig. 17).
!ATTENTION!
A
n imperfectly fitted tap will compromise its
C
- arefully lubricate the sealing gasket of the
front flange (fig. 18).
R
- efit the flange so that the locating pin mates
with its seat (fig. 19).
Date of issue: February, 2019
seal.
Revision 1
Fig. 16
Fig. 17
Fig. 18
Fig. 19
Page 34/76
