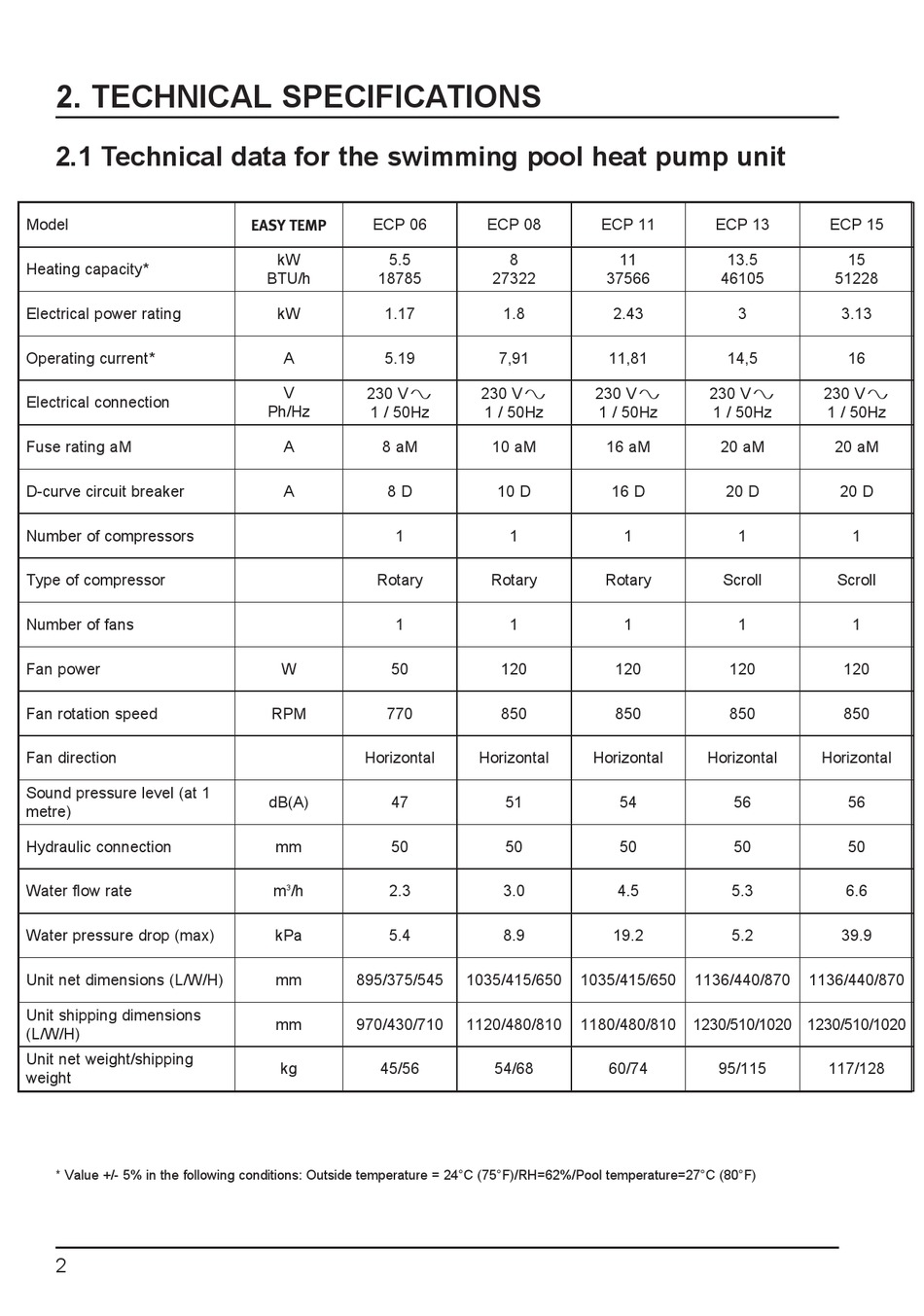

2. TECHNICAL SPECIFICATIONS

2.1 Technical data for the swimming pool heat pump unit

Model
Heating capacity*
Electrical power rating
Operating current*
Electrical connection
Fuse rating aM
D-curve circuit breaker
Number of compressors
Type of compressor
Number of fans
Fan power
Fan rotation speed
Fan direction
Sound pressure level (at 1
metre)
Hydraulic connection
Water flow rate
Water pressure drop (max)
Unit net dimensions (L/W/H)
Unit shipping dimensions
(L/W/H)
Unit net weight/shipping
weight
* Value +/- 5% in the following conditions: Outside temperature = 24°C (75°F)/RH=62%/Pool temperature=27°C (80°F)
2
ECP 06
EASY TEMP
kW 5.5
BTU/h 18785
kW 1.17
A 5.19
V 230 V
Ph/Hz 1 / 50Hz
A 8 aM
A 8 D
1
Rotary
1
W 50
RPM 770
Horizontal
dB(A) 47
mm 50
m /h 2.3
3
kPa 5.4
mm 895/375/545
mm 970/430/710
kg 45/56
ECP 08 ECP 11
8 11
27322 37566
1.8 2.43
7,91 11,81
230 V 230 V
1 / 50Hz 1 / 50Hz
10 aM 16 aM
10 D 16 D
1 1
Rotary Rotary
1 1
120 120
850 850
Horizontal Horizontal
51 54
50 50
3.0 4.5
8.9 19.2
1035/415/650 1035/415/650
1120/480/810 1180/480/810
54/68 60/74
ECP 13 ECP 15
13.5 15
46105 51228
3 3.13
14,5 16
230 V 230 V
1 / 50Hz 1 / 50Hz
20 aM 20 aM
20 D 20 D
1 1
Scroll Scroll
1 1
120 120
850 850
Horizontal Horizontal
56 56
50 50
5.3 6.6
5.2 39.9
1136/440/870 1136/440/870
1230/510/1020 1230/510/1020
95/115 117/128
