For any feed circuit breaker that trips, locate the
shorted load and resolve the wiring problem before
proceeding.
10. Turn circuit breaker(s) OFF. Remove and store the two
position bypass jumpers for possible later use.
CAUTION - Bypass jumpers must be reused when-
ever a circuit breaker is turned OFF to work on a
load. Damage caused by short circuits and miswiring
IS NOT COVERED by the product warranty.
11. Mount the module into the rough-in panel as shown
in Figure 1. Do not overtighten screws, torque to
20 in-lbs (2.25 N
m).
•
12. Secure the module's wires in the appropriate terminal
blocks using 5 in-lbs to 7 in-lbs (0.60 N
m) of torque. Attention: Install the Control Hot
0.80 N
•
(CH) on the Circuit 1 Hot and Control Neutral (CN) on
the Circuit 1 Neutral as shown in Figure 3.
13. Set the address switch to match the module's position
as shown in Figure 1. See Figure 4 for address switch
function settings.
14. Plug in the control harness as described in the
HomeWorks
processor or module interface installation
®
instructions.
15. Replace panel cover and turn the input circuit
breaker(s) ON.
16. After the processor is configured, check each mod-
ule's diagnostic LED (Light Emitting Diode).
LED Status
Possible Cause
Off
No Power or Defective Module
1 blink per second
Normal Operation "Heartbeat"
1 blink per
Not communicating with processor:
7 seconds
•
open control harness
"lighthouse"
•
module set on invalid or diagnos-
tic address
•
system not properly configured or
addressed in HomeWorks
software
4 blinks; pause;
Module in Manual Override
repeat
Lutron Elec tron ics Co., Inc.
7200 Suter Road
Coopersburg, PA 18036-1299
Made and print ed in the U.S.A. 3 / 09 P/N 043-266 Rev. A
2

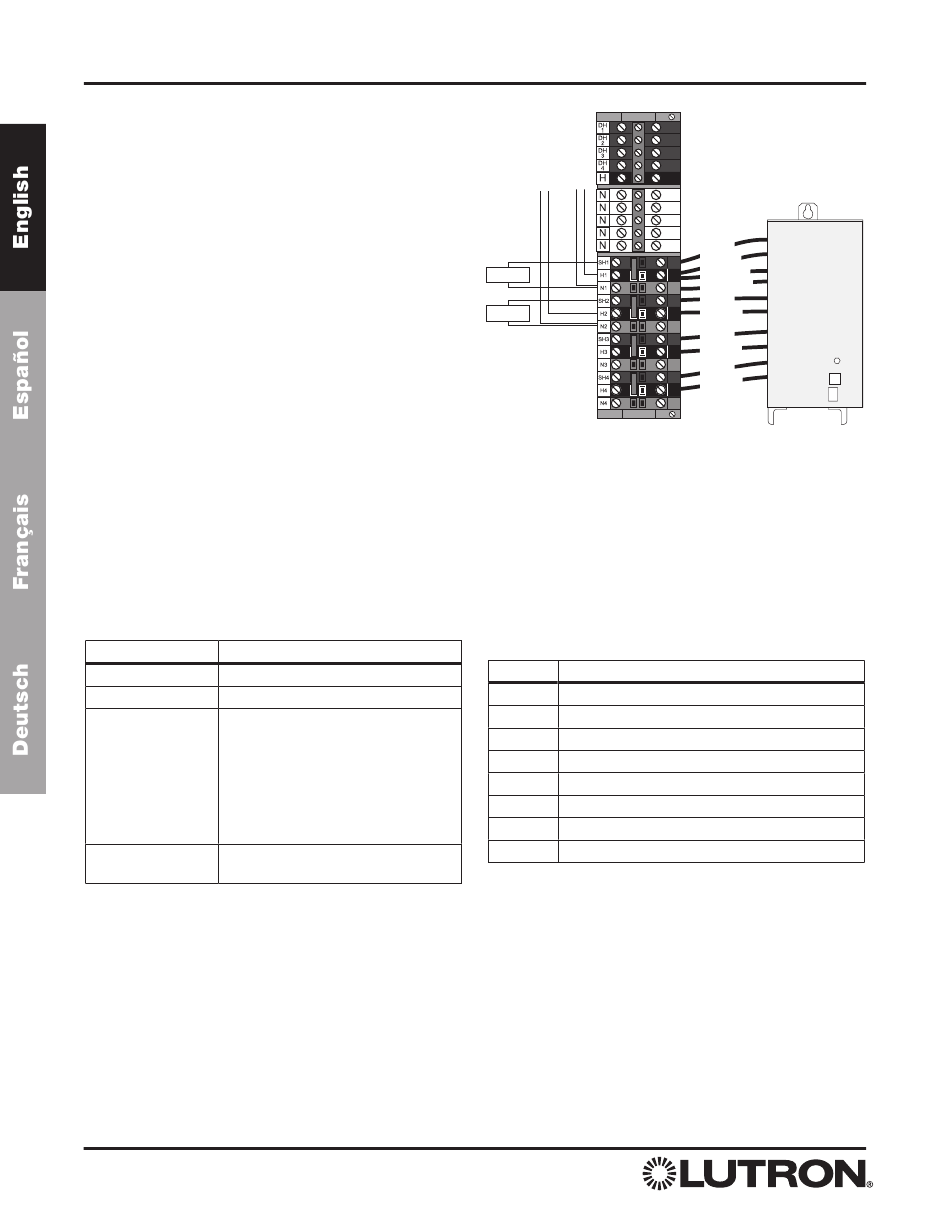

Figure 3 - Remote Power Module Wiring
Line 2
N
H
Load 1
N
H
Load 2
m to
N
•
5 in-lbs to 7 in-lbs (0.60 N
Testing Prior to Connection to Processor
The module's rotary address switch can be used to operate
the circuits without a processor. Always turn OFF all circuit
breakers that feed the panel before opening the panel. See
Figure 4 for the address switch function settings.
Figure 4 - Address Switch Functions
Position Proper Module Output / Purpose
0
1–8
9, A
B
C
D
E
F
Warranty: For Warranty information, please see the Warranty enclosed with the product,
or visit www.lutron.com/resiinfo.
Lutron, HomeWorks, and the sunburst logo are registered trademarks of Lutron
Electronics Co., Inc.
©2009 Lutron Electronics Co., Inc.
Line 1
H
N
H
Red 1
Black 1
Black (CH)
White (CN)
Red 2
Black 2
Red 3
Black 3
Red 4
Black 4
Torque Terminal Blocks using
m to 0.80 N
•
DO NOT overtighten.
All outputs OFF
Address for normal operation
All outputs OFF
Output 1 ON / Use to check wiring
Output 2 ON / Use to check wiring
Output 3 ON / Use to check wiring
Output 4 ON / Use to check wiring
All outputs ON
HW-RPM-4R
m)
•
