2.0 Installing the VHM Wall Mount in the Channel

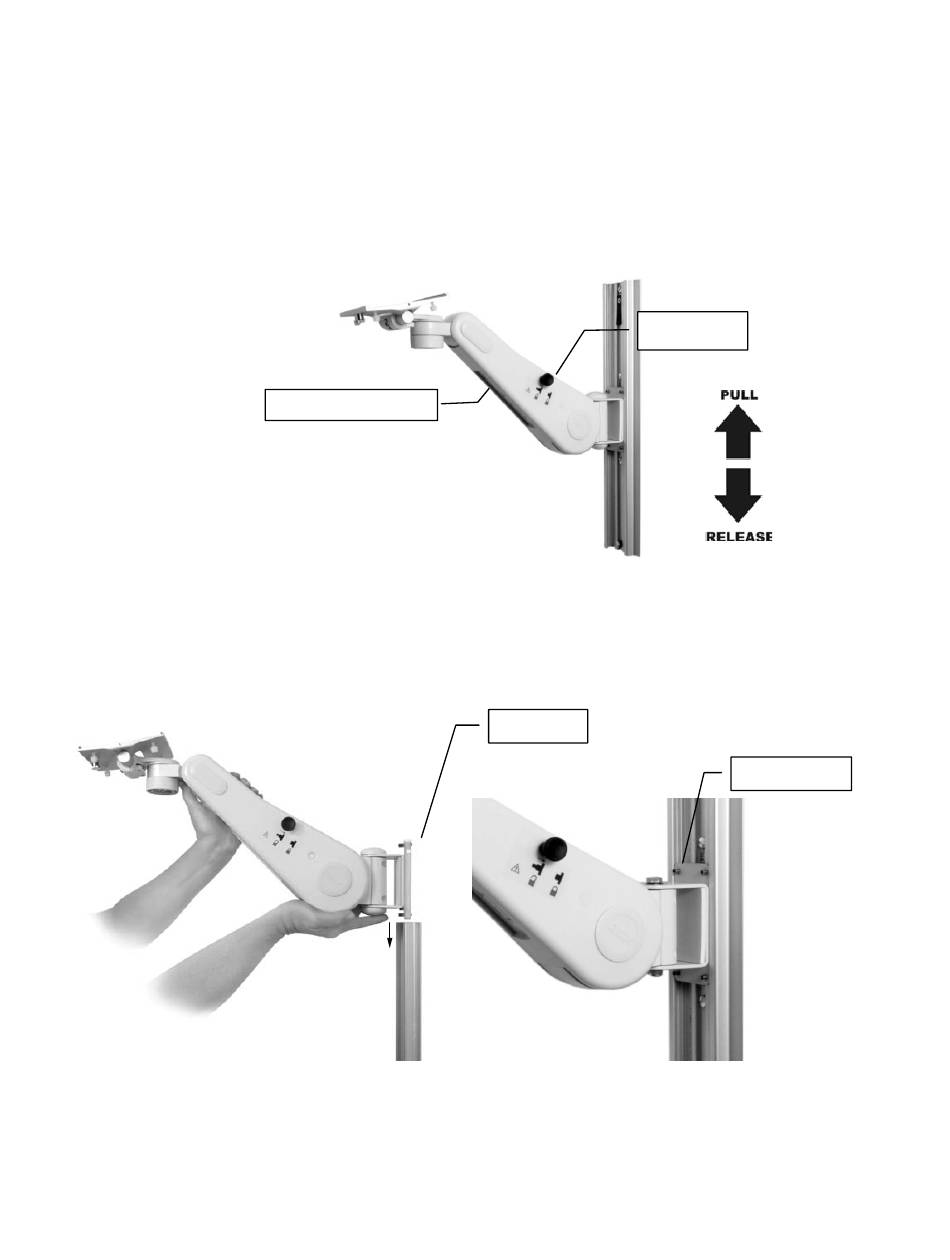

2.1 VHM Arm with Spring Lock
This type of VHM Arm is designed for use with transport monitors only. The Locking Knob is installed
at the factory. Ensure Locking Knob is in locked position before attempting to mount Arm in channel.
Installation Note: For proper function of the locking mechanism, the arm must be properly adjusted
to counterbalance the weight of the mounted instrument (see section 4.1).
Note: Locking Knob operates by pulling and releasing Knob.
Locking Knob
Maximum Load Label
2.2 While supporting the bottom of the Arm, guide the Slide into the top of the channel (below left) and move Arm to
required mounting position.
2.3 Using the 1/8'' hex wrench provided, tighten four (4) set screws in Slide to secure position of Arm (below right).
Insert Slide
Set Screws (4)
