INSTALLATION INSTRUCTIONS FOR TC810E1040,
TC810E1040-KO AND TC810E1057 MAINS SWITCHING
OUTPUT MODULES
This manual is intended as a quick reference installation guide. Please refer to the control panel manufacturers installation manual for detailed
system information
GENERAL INFORMATION
The M200+ series of modules are a family of microprocessor controlled interface devices permitting the monitoring and/or control of auxiliary
devices. The TC810E1040, TC810E1040-KO and TC810E1057 are output modules, providing 250VAC 5A rated voltage free contacts, both
normally open and normally closed.
SPECIFICATIONS
Operating Voltage Range
15 to 30VDC (Min 17.5VDC to ensure LED operation)
Maximum Standby Current (µA)
275µA - No Communication
445µA - Communication w/ blink enabled
Fault Current
8.8mA (Yellow LED illuminated)
Coil Activation/Deactivation Current
76mA Maximum for 12mS
Relay Contact Rating
5A, at 30VDC
5A at 250VAC
Operating Temperature
-20°C to 60°C
Humidity
5% to 95% Relative Humidity
Dimensions TC810E1040 and TC810E1040-KO
134mm(H) x 139mm(W) x 40mm(D)
Dimensions TC810E1057
127mm(H) x 76mm(W) x 48mm(D) (Including terminals)
Weight TC810E1040 and TC810E1040-KO
195g
Weight TC810E1057
140g
Maximum Wire Gauge
1.5mm²
INSTALLATION
Note:
These modules must only be connected to control panels using compatible proprietary analogue addressable communication protocols
for monitoring and control.
Disconnect loop power before installing modules or sensors.
High voltages may be present on terminals 7 to 12.
TC810E1040 and TC810E1040-KO
1.
The TC810E1040 ( -KO ) includes a custom low profile surface-mounting box with several options for fixing centres. To access all fixing
points, and the rear cable entry knock out, the circuit board must be removed. It is held in place by two screws through the circuit board.
Ensure that these screws are replaced when refitting the circuit board.
2.
If rear cable entry is not required, the box has several cover drill points permitting the entry of cables using suitable glands.
3.
Wiring to the TC810E1040 ( -KO ) is made via two 6 way terminal strips on the module circuit board, capable of supporting conductors up to
2.5mm². See figure 2 for connections.
4.
An earthing terminal is provided in the surface mount box for connection of the loop cable screen, if used, to ensure continuity. See figure 1a.
TC810E1057
1.
TC810E1057 mounts onto standard 35mm x 7.5mm "Top Hat" DIN rail. It must be mounted in a suitable cabinet meeting the applicable
safety standards.
2.
Wiring to the TC810E1057 is via plug in type terminals capable of supporting conductors up to 2.5mm². See figure 2 for connections.
Ensure that the correct terminals are used for the loop and switched voltage as damage may result from incorrect usage.
For both modules, the address is selected by means of rotary decade address switches (see figure 2), accessed at the front of the module. A
screwdriver should be used to rotate the wheels to select the desired address.
Short Circuit Isolators
All M200+ series modules are provided with short circuit monitoring and isolators on the intelligent loop. If required the isolators may be wired
out of the loop to facilitate the use of the modules on high current loaded loops, for example if sounders are used. To achieve this, the loop out
positive should be wired to terminal 5 rather than terminal 2.
H200-93-00
CAUTION
WARNING

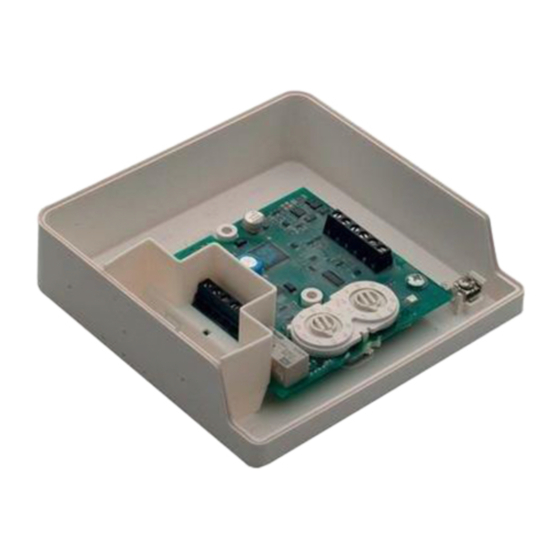

Figure 1a: TC810E1040 ( -KO ) Surface Mount
Output Module with 240V Relay Contacts
LOOP CABLE SCREEN
TERMINAL
Figure 2: Module Wiring.
NOTE: WIRING IS THE SAME FOR TC810E1040 ( -KO ) AND TC810E1057

Relay 1, N/O

Relay 2, N/C

Ground

Ground
Relay 2, N/C

Relay 1, N/O
Notes:
1.
If short circuit isolation is not required, then the loop output should be wired to terminal 5 rather than terminal 2. Terminal 5 is internally
connected directly to terminal 4.
2.
In order to meet the requirements of European Safety Standards, ensure that all cables carrying voltages in excess of 48V (Live and
Neutral) are suitably fused.
1
Pittway Tecnologica S.p.A, Via Caboto 19/3, 34147 Trieste, Italy
Figure 1b: TC810E1057 Din Rail Mounted
Output Module with 240V Relay Contacts.
TO MOUNT, LOCATE LUG OVER TOP OF RAIL
AND ROTATE THE MODULE DOWN TO CLIP
INTO PLACE.
TO REMOVE, PUSH UPWARDS, AND ROTATE
TOP OF MODULE AWAY FROM RAIL.























TENS
UNITS
Rotary Decade Address Switches
ADDRESS 14 SHOWN.
Loop -, Out
Loop +, Out - See Note 1
Loop -, In
Loop +, In
Loop +, Out - See Note 1
T6 - Not Connected
© System Sensor 2003
I56-2059-002
