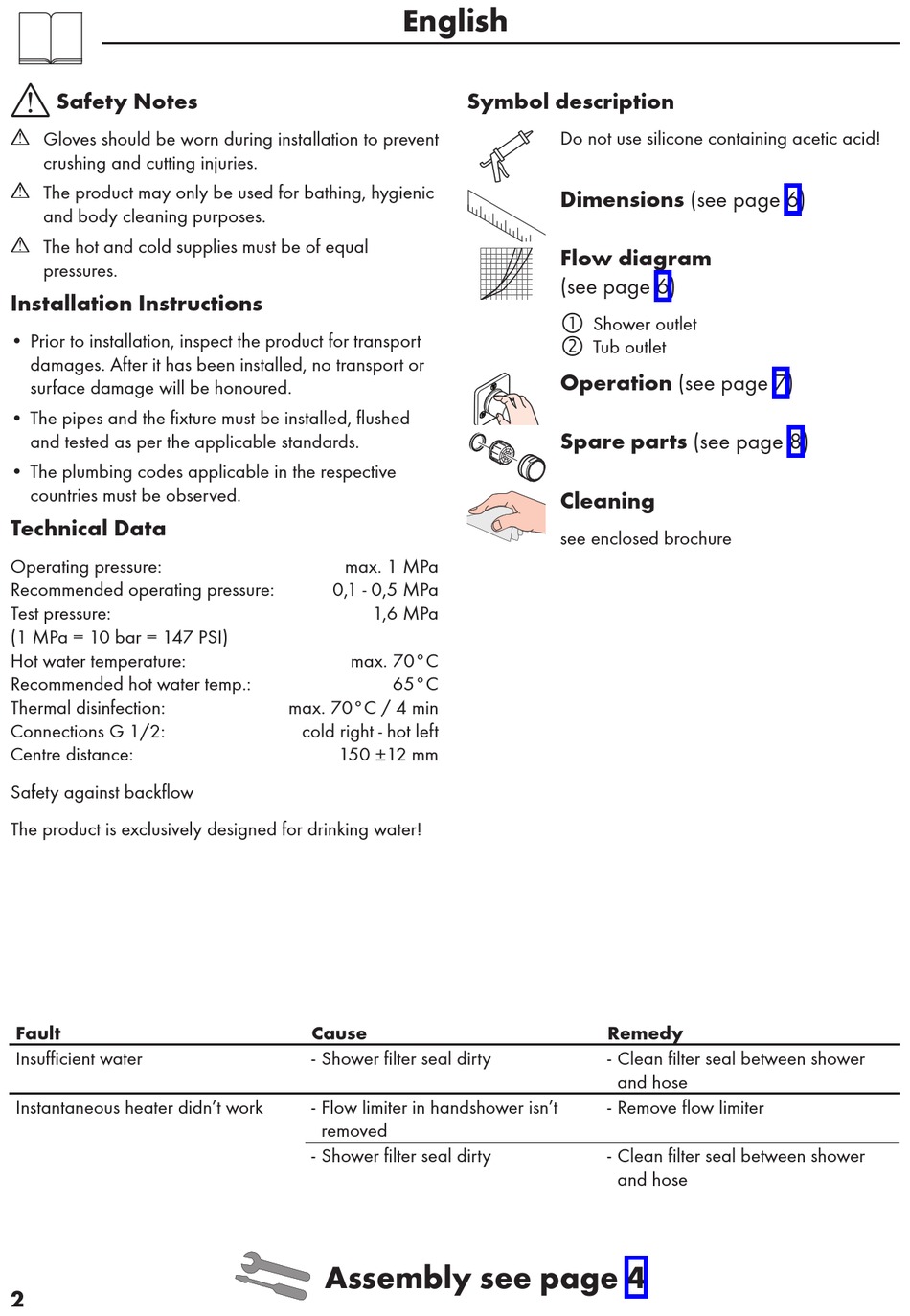

Safety Notes
Gloves should be worn during installation to prevent
crushing and cutting injuries.
The product may only be used for bathing, hygienic
and body cleaning purposes.
The hot and cold supplies must be of equal
pressures.
Installation Instructions
• Prior to installation, inspect the product for transport
damages. After it has been installed, no transport or
surface damage will be honoured.
• The pipes and the fixture must be installed, flushed
and tested as per the applicable standards.
• The plumbing codes applicable in the respective
countries must be observed.
Technical Data
Operating pressure:
Recommended operating pressure:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
Thermal disinfection:
Connections G 1/2:
Centre distance:
Safety against backflow
The product is exclusively designed for drinking water!
Fault
Insufficient water
Instantaneous heater didn't work
2
English
max. 1 MPa
0,1 - 0,5 MPa
1,6 MPa
max. 70°C
65°C
max. 70°C / 4 min
cold right - hot left
150 ±12 mm
Cause
- Shower filter seal dirty
- Flow limiter in handshower isn't
removed
- Shower filter seal dirty
Assembly see page 4
Symbol description
Do not use silicone containing acetic acid!
Dimensions (see page 6)
Flow diagram
(see page 6)
Shower outlet
Tub outlet
Operation (see page 7)
Spare parts (see page 8)
Cleaning
see enclosed brochure
Remedy
- Clean filter seal between shower
and hose
- Remove flow limiter
- Clean filter seal between shower
and hose
