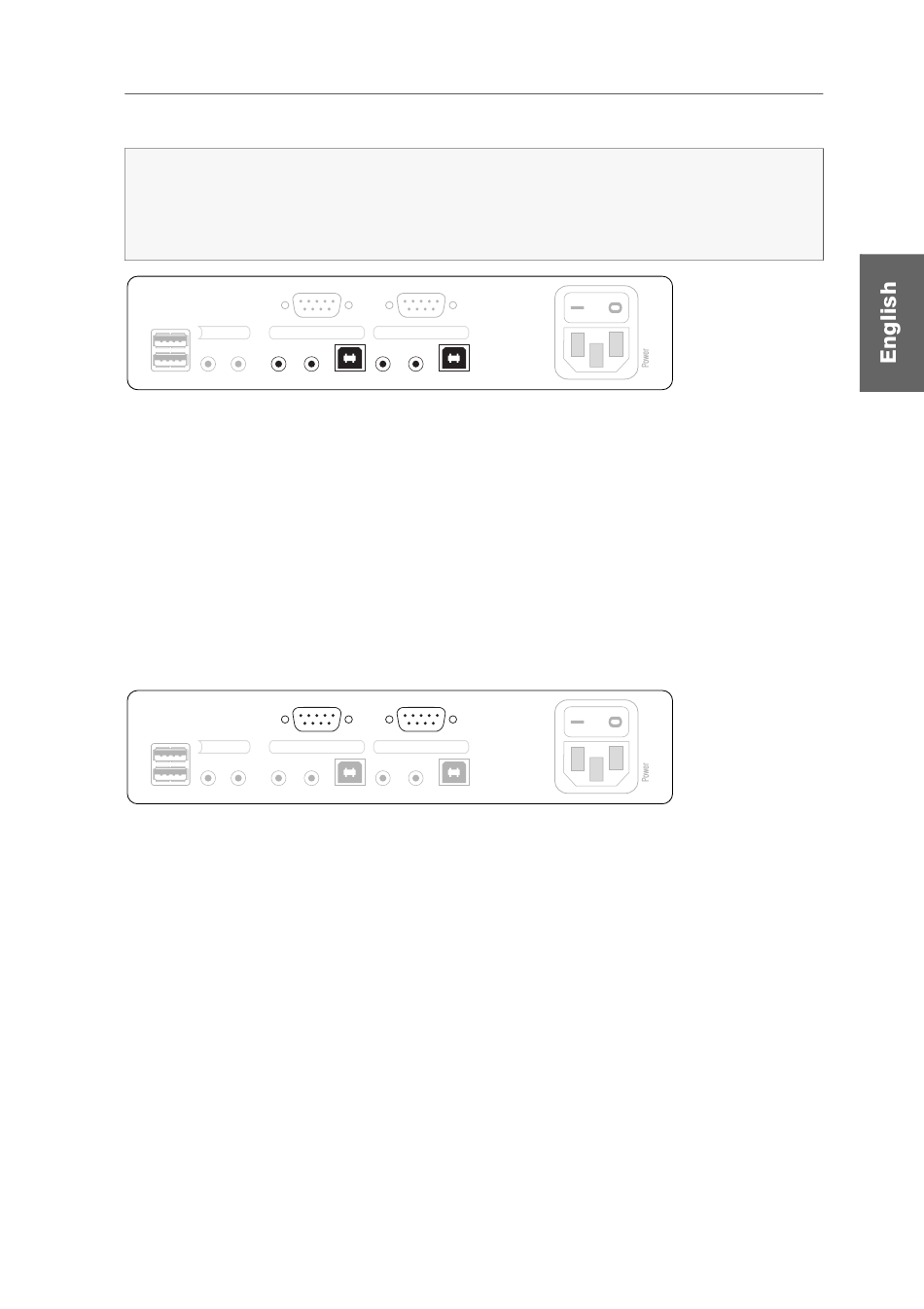

Connecting computers

NOTE: To connect the (maximum two) computers to the KVM switch, the inter-
faces as shown below are available for each computer.
The descriptions (for example
ticular computer or to the respective button on the front panel.
Console
Keyb./Mouse Line In Speaker Line In Line Out
If you want to put out the computer's audio signals over the speakers con-
Line In:
nected to the KVM switch, use one of the audio connection cables (Audio-M/M) to
connect the computer's Line Out interface to this interface.
Line Out: If you want to use a microphone or a headset at the console, use one of the
audio connection cables (Audio-M/M) to connect this interface to the computer's
microphone input.
USB 2.0: Use one of the USB connection cables (USB-AM/BM) to connect one of the
computer's USB ports to this interface.

Connecting the TradeSwitch LEDs

Console
Keyb./Mouse Line In Speaker Line In Line Out
LED Out: Optionally connect a TradeSwitch LED (TS-LED-2) to this interface and
place the TradeSwitch LED set on e.g. the monitor.
) on the back panel assign the interfaces to a par-
CPU 1
LED Out 1 LED Out 2
CPU 1 CPU 2
USB 2.0 Line In Line Out USB 2.0
LED Out 1 LED Out 2
CPU 1 CPU 2
USB 2.0 Line In Line Out USB 2.0
Installation
G&D TradeSwitch2-USB · 6
