UHF Wireless Microphone System | Installation and User Instructions |
7

Optional accessories

The dual rack adapter, front panel and antenna rack
adapter are included in one package and need to be
ordered separately under type number MW1-RMB.
7. 1

Dual rack adapter

Slide the receiver in the rack adapter and position it in
such a way that the screw holes can be seen from the
bottom.
Fix the receiver to the rack adapter with the supplied
screws.
The rack adapter allows for mounting of one or two
receivers in a 19" rack.

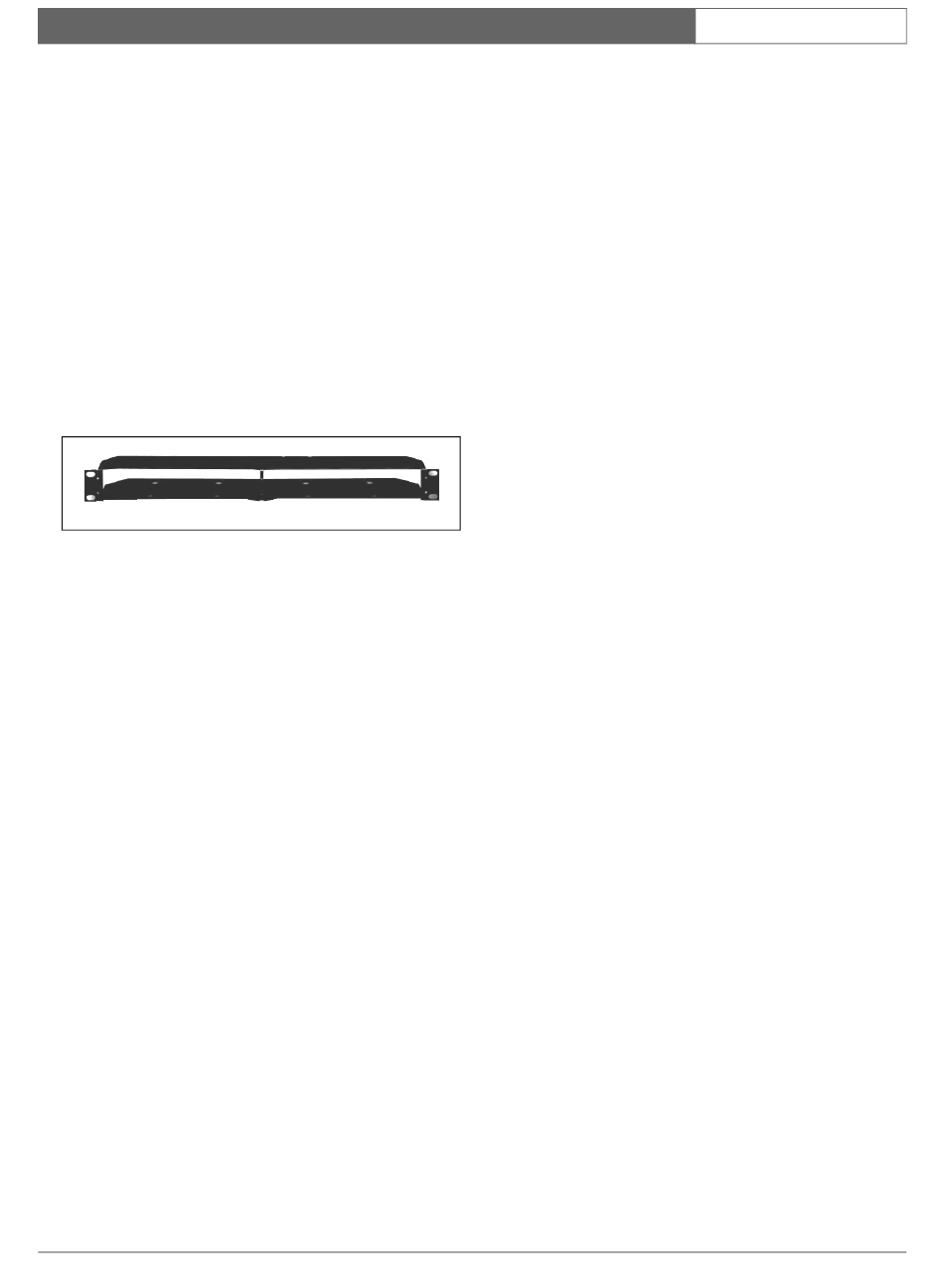

figure 7. 1 : Dual rack adapter
7.2

Front panel

Fix the front panel to the empty position on the rack
adapter in case only one receiver is installed.
7.3

Antenna rack adapter

Mount the double sided panel connectors on the front
panel.
Fix the front panel to the rack adapter.
Connect the double sided panel connectors to the
receiver by using the supplied BNC cables.
Fix the antennas to the front panel.
7.4

Lavalier microphone

The lavalier microphone without the belt-pack can be
ordered separately under typenumber MW1-LMC.
Bosch Security Systems | 2006-01 | 9922 141 50701ml
en | 19
