Belt-pack transmitter

Inserting and changing the battery
1 Press the 2 slider release buttons on the sides of the
belt-pack transmitter
2 Move the slider upwards to open the battery
compartment.
3 Insert 2 x LR6/AA/UM3 1.5 V batteries according
to the indicated polarity.
4 Slide down the slider over the belt-pack transmitter.

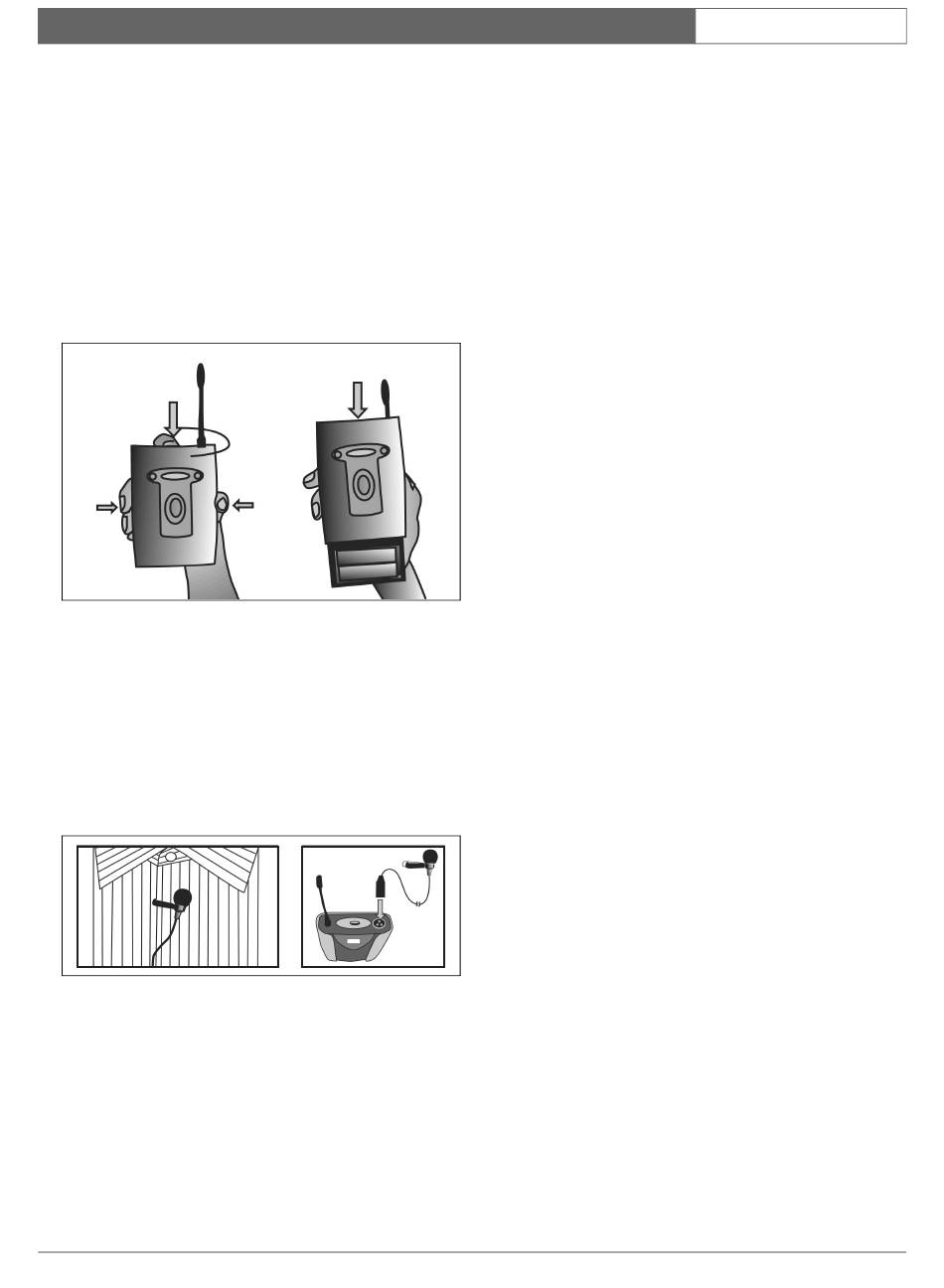

figure 4.4: Changing the batteries (belt-pack transmitter)
Connecting the lavalier microphone to the belt-pack
transmitter
1 Attach the lavalier microphone to a tie, blouse or
jacket by pressing the clip.
2 Plug the mini XLR (tini QG)of the microphone cable
into the microphone INPUT jacket of the belt-pack
transmitter.
figure 4.5: Connecting the lavalier microphone
