Product
Description
Product Overview
AC Power

Fuse Replacement

Mounting
Product
Mounting
Diagram
Control Panel
Description
The 4BAR™ is a pack-and-go must have for DJs, bands and other
performers who want a complete LED wash light system. Each of the four
low-profile lights can be positioned independently. With 108 red, green and
blue LEDs per light, the 4BAR™ offers built-in automated and sound-
activated programs accessible with or without the foot switch.
LED Display
Microphone
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
To replace the fuse in the 4BAR™:
1. Disconnect the product from power.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing.
4. Remove the blown fuse from the clip on the front of the safety cap and
replace with a fuse of the exact same type and rating.
5. Re-insert the fuse holder and reconnect power.
Before mounting this product, read the Safety Notes.
Pan Angle Adjustment Knob
Tilt Angle
Adjustment
Knob
Button Function
<MENU> Exits the current menu or function
Navigates up through the menu list or increases the numeric
<UP>
value when in a function
<DOWN> Navigates down through or decreases the numeric value
DMX
In/Out
Footswitch
Connection
Sound Sensitivity
Adjustment Knob
Clamp Hanging Bolts
Tripod Insertion Point
3
4BAR™ QRG
Fuse Holder
Power In

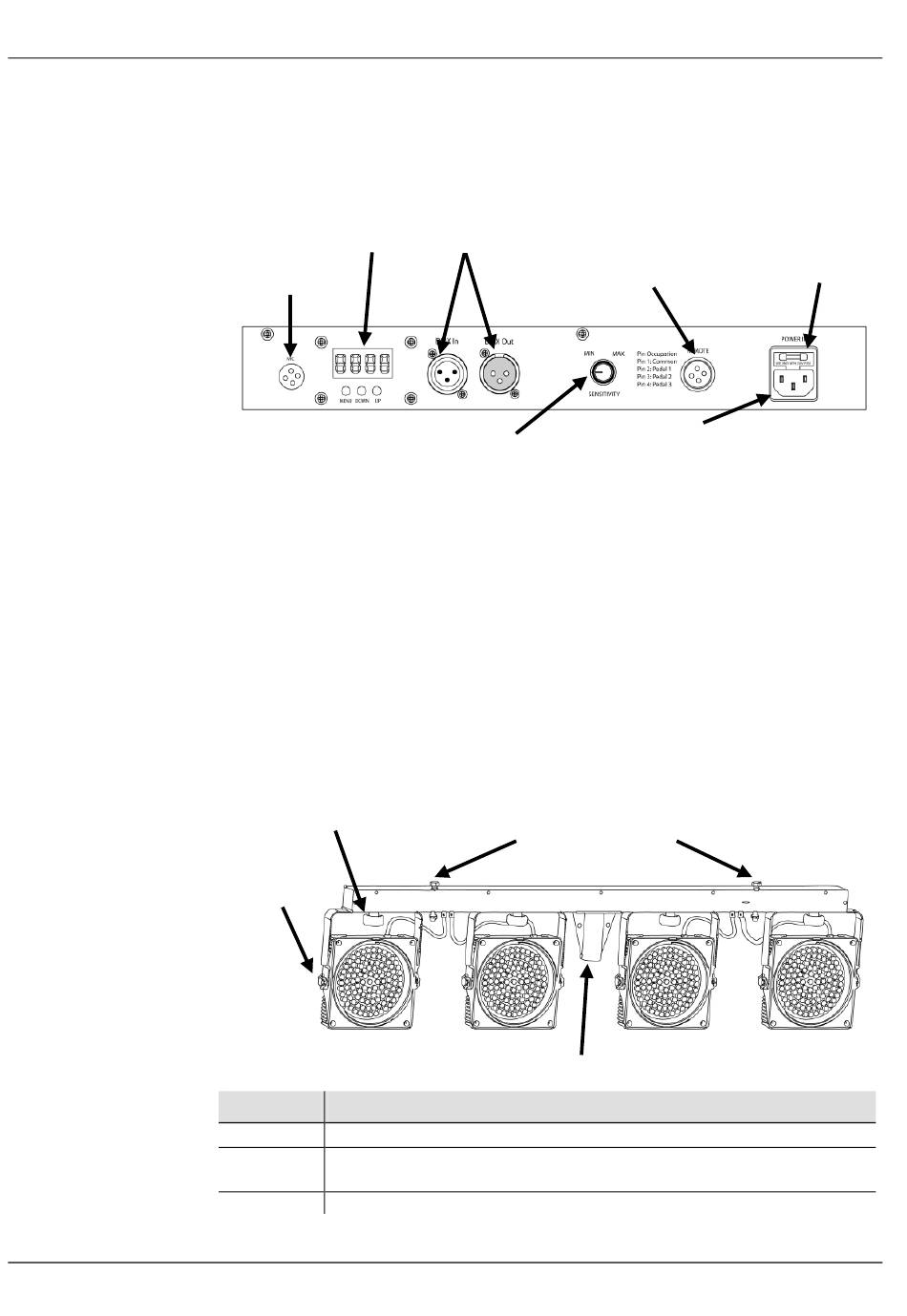

Back Panel View
