Product
Description

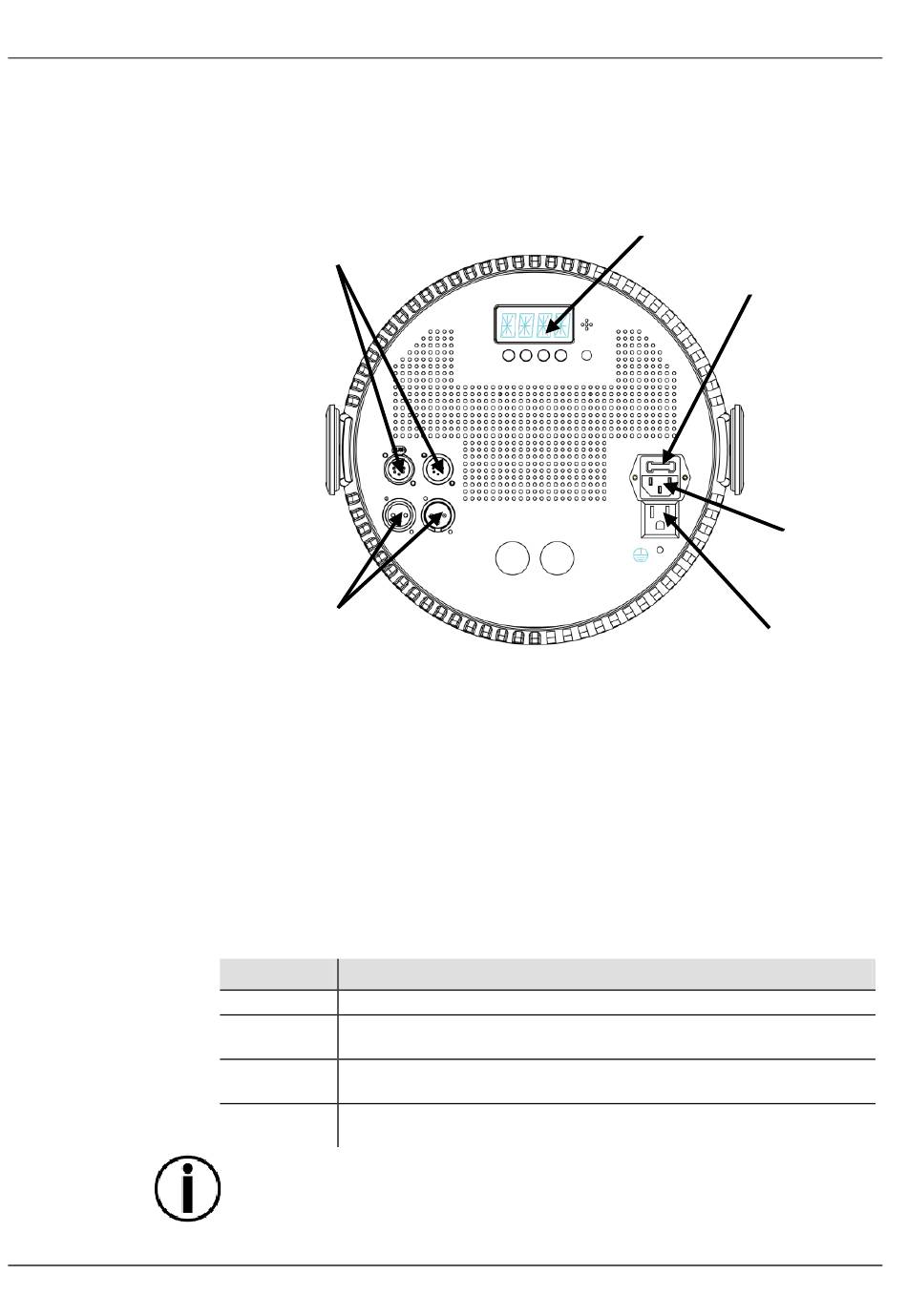

Product Overview
AC Power
Power Linking

Fuse Replacement

Control Panel
Description
The PiX™ PAR 24 is a compact, pixel mapping par can with individual
LED control for animation and video effects. It includes multiple DMX
personalities to fit any programming style. The PiX™ PAR 24 also works
with ShowXpress™ Pixels for ease of use. It includes built-in dimming
curves allowing for flicker-free video operation.
5-pin DMX Connectors
3-pin DMX Connectors
This product has an auto-ranging power supply that can work with an input
voltage range of 100~240 VAC, 50/60 Hz.
You can link up to 8 PiX™ PAR 24 units at 120 VAC and 15 units at 230
VAC. You should never exceed this number.
To replace the fuse in the PiX™ PAR 24, use the following steps:
1. Disconnect this product from the power outlet.
2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the safety cap out of the housing pulling out the installed fuse.
4. Remove the blown fuse from the safety cap and replace with a fuse of
the exact same type and rating.
5. Insert the fuse holder back in place and reconnect power.
Button Function
<MENU> Exits from the current menu or function
Navigates upwards through the menu list and increases the
<UP>
numeric value when in a function
Navigates downwards through the menu list and decreases the
<DOWN>
numeric value when in a function
Enables the currently displayed menu or sets the currently
<ENTER>
selected value into the selected function
After you use the <UP> and <DOWN> buttons, press <ENTER> to set
the selected value. Otherwise, the menu function or value defaults back to
its previous setting.
Page 3 of 64
PiX™ PAR 24 QRG
LED Display
Fuse Holder
Power Out
Power In
