Installing to Wall
1
WOOD STUD WALL

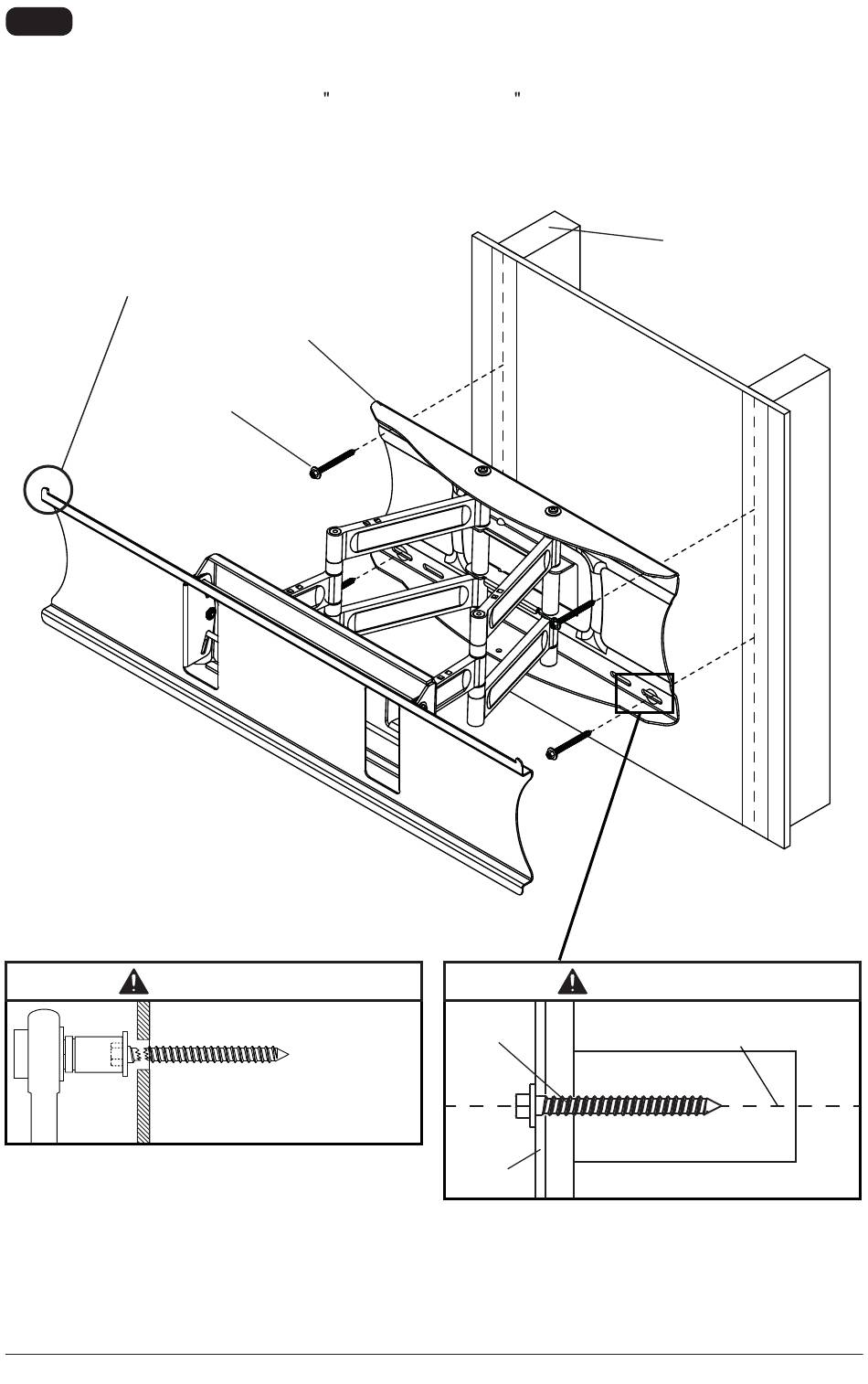

Use wall plate (A) as a template, make sure it is level, and mark four mounting holes along the center
OLQHV RI WKH ZRRG VWXGV 'ULOO IRXU   PP GLD KROHV   PP GHHS /HYHO ZDOO SODWH A) and
attach to wall with four wood screws (C LQWR VWXG FHQWHU 8VH RI DQ HGJH WR HGJH VWXG ¿QGHU LV KLJKO\
UHFRPPHQGHG 7LJKWHQ VFUHZV ¿UPO\ EXW GR QRW RYHUWLJKWHQ
FLANGE INDICATES TOP
OF MOUNT
WARNING
Do not over tighten screws, or
damage may occur.
A
C
C
A
3 of 33
WOOD STUD
WARNING
Wood screws must
center in stud.
STUD
TOP CUTAWAY VIEW
ISSUED: 11-02-09 SHEET #: 095-9303-1
